ABB 2CPX034035R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX034035R9999
Quick Summary
ABB 2CPX034035R9999 is a measurement and metering transformer board designed for integrated metering in switchgear applications. This compact, fully assembled module consolidates metering cross-functionality within a single enclosure, reducing field wiring and commissioning time. Engineers often struggle with space constraints, complex busbar layouts, and inconsistent cross-connection between meter cabinets and panels — this solution streamlines that process. It complies with EN 61439-1/2 and DIN EN 61439-2, carries CE conformity, and features IP2XC protection with RoHS and REACH declarations for regulatory confidence. With 216 DIN place units, a copper busbar system, and a 5-pole configuration, it delivers scalable meter integration while delivering predictable electrical performance and maintenance-friendly access for service teams.
Product Information
Extended Description
2CPX034035R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), Connection N+PE (M8), Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
23.615 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.56 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

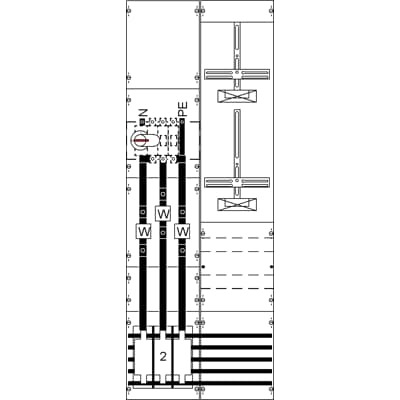

Circuit and distribution diagram KA4316
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled module with Metering cross; Business Impact: Reduces field wiring and accelerates installation by delivering a ready-to-use metering cross integration; Application: Ideal for internal meter cabinets and meter panels in switchgear assemblies. Feature: IP2XC protected enclosure with closed cover; Business Impact: Enhances safety and reliability in constrained spaces, lowering risk during commissioning and maintenance; Application: Indoor electrical infrastructure and panel assemblies requiring robust protection. Feature: Generous DIN space and precise dimensions; Business Impact: Fits standard 500 mm width enclosures and 216 DIN place units, enabling scalable metering layouts without redesigns; Application: Meter panels with future cross-connecting flexibility. Feature: Copper busbars 12 x 5 mm and 5-pole lower connection space; Business Impact: Improves current paths and reduces resistance losses, cutting heat and maintenance needs; Application: High-current metering cross connections in 5P configurations. Feature: Compliance and material safety disclosures; Business Impact: Ensures regulatory alignment (EN 61439-2, CE, RoHS, REACH) and streamlined procurement while maintaining long-term reliability; Application: Meets industry standards for energy meters, safety and environmental responsibility. Accessory availability and quick-seal connections further shorten installation and enable robust field servicing in dynamic plant environments.
Get a Quick Quote for a ABB 2CPX034035R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034035R9999?
Enquire Now
FAQs
The ABB 2CPX034035R9999 is designed for TN-S earthing arrangements typical in many switchgear environments. It uses a 5-pole lower connection space with copper busbars (12 x 5 mm), enabling robust, low-resistance connections. The enclosure supports standard DIN rail mounting within meter cabinets and maintains compliance with EN 61439-2, ensuring reliable performance and straightforward integration with existing TN-S systems.
Key ratings include a maximum operational voltage of 415 V, a nominal current of 220 A, and a 5-pole configuration with 1 meter cabinet and 1 meter panel. The panel footprint is 1350 mm high by 500 mm wide with a 160 mm depth, and it weighs about 23.615 kg (24.56 kg packed). Copper busbars and a 216 DIN place capacity support scalable metering layouts.
Yes. The device aligns with DIN EN 61439-2 and EN 61439-1/2 standards for switchgear assemblies, carries CE conformity, and includes RoHS information and REACH declarations. This combination ensures regulatory compliance, safe operation in electrical environments, and reduced risk for procurement and maintenance teams.
The design specifies 1 meter cabinet and 1 meter panel with 216 DIN places and 2 panel widths, and accessories are available. This supports targeted expansion for future metering needs and cross-connection configurations, while the closed cover and quick-seal connections streamline field upgrades without extensive rebuilds.
With a neutral light grey RAL 7035 enclosure and IP2XC protection, the board fits standard 500 mm width spaces and maintains 1350 mm height. The 23.615 kg net weight and 216 DIN units simplify handling during installation and maintenance. Service access is aided by a closed cover and readily accessible busbar connections, reducing downtime.
