ABB 2CPX034036R9999 Measurement & metering board - IP2XC
Part Number: 2CPX034036R9999
Quick Summary
ABB 2CPX034036R9999 measurement and metering transformer board enables compact power metering inside control cabinets. Engineers often struggle with limited space, wiring complexity, and ensuring reliable monitoring within panel layouts. This ABB unit aligns with EN 61439-2 and CE documentation while delivering IP2XC protection to simplify installation and enhance safety. The enclosure supports indoor, panel-mounted applications with a 1-meter cabinet footprint, copper busbars, and a pre-assembled metering cross to reduce field labor. By combining robust protection with modular space utilization, it delivers tangible business value in energy management, asset health tracking, and regulatory compliance across industrial facilities.
Product Information
Extended Description
2CPX034036R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 287 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 750 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), Connection N+PE (M8), Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
324
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
32.06 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
33.342 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

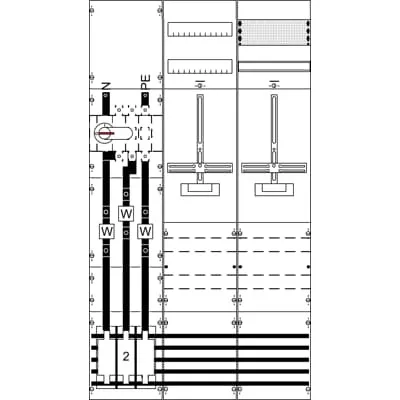

Circuit and distribution diagram KA4317
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature → Business Impact → Application: IP2XC protection provides reliable operation in controlled environments, reducing risk of exposure to dust and moisture while improving safety for maintenance personnel in switchgear assemblies. This translates to lower incident costs and higher uptime in critical power distribution bays. Feature → Pre-assembled metering cross and Cu busbars 2 x 12 x 5 mm streamline wiring, cutting installation time by hours and reducing mis-wiring in complex meter panels. Application: ideal for new builds and retrofit projects in panel enclosures where accurate metering and clear signal routing are required. Feature → DIN placement of 324 units and a 5-pole, 1-story enclosure with TN-S earthing ensures consistent layout and easy integration with existing electrical infrastructure. Business impact: standardized spacing reduces engineering time and supports scalable deployments in multi-meter cabinet configurations. Feature → EN 61439-1/2 compliance and CE declarations provide traceable compliance across electrical assemblies, minimizing QA reviews and speeding procurement cycles. Application: essential for regulated environments and projects targeting IEC and regional standards. Feature → 3 panel widths and 1 meter cabinet footprint enable flexible installation in compact switchgear, delivering space optimization without compromising accessibility. Business impact: enables higher density installations and simplifies future expansion in metering layouts. Feature → Quick sealable connections and closed cover design reduce field exposure and maintenance effort, lowering lifecycle costs. Application: maintenance windows and service routines gain predictability in busy production lines. Feature → RoHS and REACH declarations ensure material compliance, supporting sustainability programs and supplier governance. Application: helps meet corporate ESG goals while sustaining supply chain reliability.
Get a Quick Quote for a ABB 2CPX034036R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034036R9999?
Enquire Now
FAQs
The unit arrives as a fully assembled module with a metering cross and Cu busbars (2 x 12 x 5 mm). Install inside an IP2XC-rated enclosure, connect N+PE via M8 terminals, and align to the 324 DIN place grid. The design supports TN-S earthing and a 5P configuration, enabling a streamlined fit with existing switchgear and controlgear assemblies.
It complies with EN 61439-1/2 and DIN EN 61439-2, carries CE declarations, RoHS 2 compliance, and REACH information. The IP2XC rating provides ingress protection for indoor use in panel-mounted metering configurations, while WEEE and SCIP declarations support environmental compliance for large equipment.
Rated operational voltage is maximum 415 V and rated current 250 A, with a TN-S earthing system and 5-pole arrangement. The module occupies 324 DIN units, with a net width of 750 mm, height of 1350 mm, and depth of 160 mm, suitable for 1 meter cabinet installations in control rooms.
Yes. Its IP2XC enclosure rating, closed cover, and CE/EN 61439-2 compliance make it appropriate for indoor switchgear and meter-panel installations. The unit is designed for clean indoor environments and supports pre-wired metering cross connections and copper busbars, minimizing field wiring concerns.
Pre-assembled modules reduce field wiring and commissioning time, lowering labor costs and error rates. The robust protection (IP2XC) and standardized DIN layout help shorten procurement cycles and future expansion, contributing to lower total cost of ownership in energy-monitoring projects and asset-management initiatives.
