ABB 2CPX034039R9999 Transformer Board - IP2XC
Part Number: 2CPX034039R9999
Quick Summary
ABB 2CPX034039R9999 transformer board enables integrated metering in compact switchgear enclosures. Many projects stall on lengthy wiring and compliance checks when configuring metering bays. It meets DIN EN 61439-1/2/3, carries CE conformity, and features IP2XC protection for safe internal use. Pre-wired to DSO requirements and RoHS/REACH compliant, it delivers faster deployment, reduced wiring errors, and lower lifecycle costs. With 84 DIN places and overall dimensions of 1050 x 250 x 160 mm, it fits standard meter cabinets. The module uses copper busbars and a closed plastic cover to enhance safety and serviceability.
Product Information
Extended Description

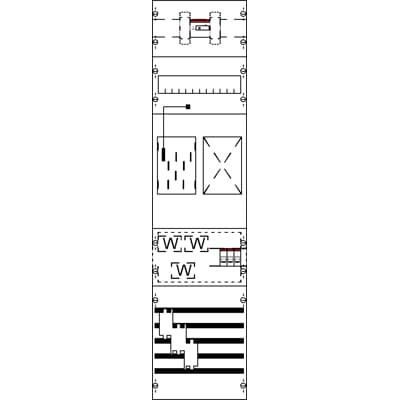

2CPX034039R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 63 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B10/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
63 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
10.568 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.991 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4608
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Fully assembled transformer board with pre-wired configuration aligned to DSO requirements, including a 5-pole Stecktechnik interface and TN-S earthing. Business impact: Accelerates on-site commissioning, minimizes field wiring errors, and shortens project lead times while preserving safety. Application: ideal for internal meter cabinets in medium-voltage switchgear and utility installations. Feature: IP2XC enclosure rating for safe internal use in commercial environments. Business impact: Reduces risk of unintended contact and dust ingress, enhancing reliability in harsh indoor spaces. Application: metering bays and measurement panels within switchgear housings. Feature: DIN EN 61439 compliance and CE conformity plus RoHS/REACH declarations. Business impact: Ensures regulatory compliance and smoother approvals, reducing rework and audit findings. Application: approved for European DSOs and utility projects requiring standard-compliant meter panels. Feature: Copper busbars (12 x 5 mm) and 5-pole arrangement with TN-S earthing. Business impact: Low-resistance current paths improve measurement accuracy and thermal performance; Application: robust distribution within 1-meter meter cabinets and 1-meter panels. Feature: Pre-wired to requirements with quick-sealable connections and a closed cover. Business impact: Speeds installation, simplifies maintenance, and supports safer service operations. Application: pre-assembled meter panels used in DSOs, utilities, and panel builders. Feature: Dimensioned for standard layouts (1050 mm H x 250 mm W x 160 mm D) with 84 DIN places. Business impact: Easy integration into existing enclosures and scalable metering capacity. Application: retrofit or new-build panel projects requiring reliable meter panels with ample space.
Get a Quick Quote for a ABB 2CPX034039R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034039R9999?
Enquire Now
FAQs
The ABB 2CPX034039R9999 transformer board is designed as a fully assembled module for internal meter panels, featuring a 5-pole Stecktechnik interface and TN-S earthing. It mounts within standard meter cabinets and meter panels, aligning with 1050 x 250 x 160 mm dimensions and 84 DIN unit spaces. Its copper busbars and pre-wired configuration simplify integration with existing ABB switchgear and reduce field wiring steps.
Key specs include a maximum operational voltage of 415 V, rated current of 63 A, 5 poles, and 1 meter cabinet plus 1 meter panel capacity. It uses Cu busbars 12 x 5 mm for robust distribution, supports TN-S earthing, and accommodates 3-pole functions with a pre-wired setup suitable for DSO requirements and CE compliance.
Yes. The unit is designed for DIN EN 61439-1/2/3 compliance and carries CE conformity. It also aligns with RoHS and REACH declarations, ensuring regulatory readiness for European DSOs, metering applications, and utility installations.
The pre-wired design minimizes on-site wiring, reduces commissioning time, and lowers risk of wiring errors. It includes a pre-wired transformer board with a 5-pole Stecktechnik interface, TN-S earthing, Cu busbars, and a closed cover. Everything is configured to DSO requirements, with 84 DIN spaces and a ready-to-fit footprint compatible with standard meter cabinets.
ABB provides relevant documentation such as the circuit and distribution diagram KA4608 and the EU declarations of conformity. Technical support is available for integration, installation, and maintenance planning, ensuring ongoing compliance with DIN EN 61439 standards and RoHS/REACH requirements.
