ABB 2CPX034040R9999 Meter Panel for Metering - IP2XC
Part Number: 2CPX034040R9999
Quick Summary
Metering transformer board from ABB provides integrated measurement and metering capabilities for sub-distribution panels in industrial facilities. Many projects struggle with pre-wired, space-efficient solutions that still meet evolving safety and performance requirements. These meter panels are CE certified and built to comply with DIN EN 61439-2/3, while the IP2XC protection class guards sensitive metering components in challenging environments. The design supports 1050 mm by 250 mm footprint, 84 DIN place units, and 5-pole connections, enabling scalable measurement with minimal field wiring. By offering pre-wired configurations and a robust RAL 7035 enclosure, this solution reduces on-site labor, accelerates commissioning, and ensures long-term reliability for utility-scale or commercial installations.
Product Information
Extended Description
2CPX034040R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 63 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D02/3-pole complete with fuse base element D01, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
63 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
10.429 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.846 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

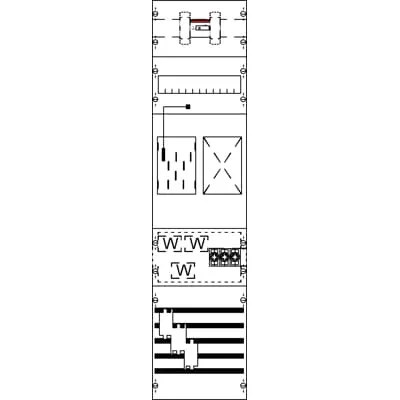

Circuit and distribution diagram KA4609
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: Fully assembled transformer board with BKE-I minimizes on-site assembly and testing, reducing labor costs and project lead times while improving consistency across installations. This translates to faster commissioning within utility substations and commercial meter rooms, and improves repeatability across multiple sites. Feature → Application: IP2XC-rated enclosure and DIN EN 61439 compliance ensure safe operation in indoor distribution and meter cabinets, protecting critical metering components from dust and touch while satisfying EU safety standards. This supports regulated environments and customer audits. Feature → Business Impact → Application: Pre-wired according to DSO requirements accelerates deployment by reducing wiring complexity and mistake-prone field connections, delivering reliable performance in time-sensitive grid projects. Feature → Application: Cu busbars 12 x 5 mm and 5-pole configuration offer robust, low-impedance current paths suitable for single-CT and multi-CT metering layouts, improving measurement accuracy and minimizing voltage drops. Feature → Business Impact → Application: 84 DIN place units and a 1050 x 250 x 160 mm footprint optimize space planning in switchgear rooms, enabling scalable meter panels in 1-meter enclosure footprints. Feature → Application: 5P TN-S earthing, quick-seal connections, and closed cover style reduce maintenance cycles and enhance protection during dispatch and installation, increasing total cost of ownership advantages for engineers and procurement teams.
Get a Quick Quote for a ABB 2CPX034040R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034040R9999?
Enquire Now
FAQs
The ABB meter panel is designed to meet DIN EN 61439-2 and -3, ensuring it complies with standard requirements for assembly and operation in switchgear and meter cabinets. It supports 84 DIN place units and a 5P configuration, enabling straightforward integration into existing DIN rail layouts while maintaining safe, standardized connections.
IP2XC provides a robust enclosure protection level suitable for indoor installations where accessible components require protection against solid objects and limited ingress. For meter panels, this enhances performance in environments with dust and incidental contact, helping ensure ongoing metering accuracy and reliability without frequent component exposure.
Yes. The model is pre-wired according to DSO requirements, which reduces field wiring and setup time. This pre-configuration minimizes commissioning risks, accelerates project timelines, and supports consistent metering performance across multiple sites with minimal on-site modification.
The closed cover and modular design simplify inspection and maintenance, while Cu busbars provide low-impedance paths that help maintain measurement integrity over time. The CE and RoHS/REACH compliance, along with DIN EN standards, contribute to predictable lifecycle costs, ease of regulatory audits, and lower long-term risk for utility-scale deployments.
The meter panel offers a footprint of 1050 mm H x 250 mm W x 160 mm D with a net weight of about 10.429 kg (pack weight ~10.846 kg). It features 84 DIN place units, 1 meter cabinet, and 1 meter panel, making it suitable for 1U- to 3U-pace layouts within compact enclosures.
