ABB 2CPX034041R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX034041R9999
Quick Summary
Measurement and metering transformer board delivers compact, accurate energy measurement for industrial facilities and utility substations, where space is limited and wiring must be organized. Engineers often face cramped mounting spaces, miswiring risks, and delays from bespoke panel builds; this module mitigates those pains by arriving pre-wired to DSOs and industry requirements. It complies with EN 61439-1 and EN 61439-2, carries CE conformity, and features IP2XC protection, providing safety and regulatory alignment in harsh industrial environments. With 168 DIN unit slots, a 5-pole busbar system, pre-wired connections, and a compact footprint, the design speeds installation, reduces commissioning time, and supports scalable metering architectures. Operationally, it backs energy management goals and regulatory compliance, delivering dependable performance, lower total cost of ownership, and predictable maintenance for industrial networks and utility feeders.
Product Information
Extended Description
2CPX034041R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B10/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, N+PE 2 Connections N+PE 95qmm, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
17.495 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
18.195 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

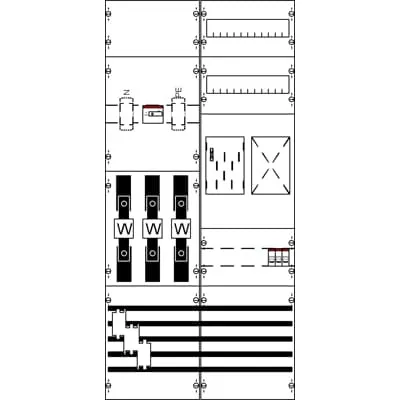

Circuit and distribution diagram KA4618
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Paragraphs:Pre-wired to DSO requirements and factory-tested wiring reduce on-site assembly time and human error, translating to faster project schedules and fewer field changes in meter installations. The 5-pole design aligns with standard CT and busbar configurations, while integrated pre-wiring supports straightforward field connections. In practice, engineers report significant gains in commissioning speed and reduced training needs for maintenance staff. The arrangement also simplifies QA checks during panel assembly and improves traceability of connections.EN 61439-1/2 compliance and CE declarations ensure a safe, auditable panel build from switchgear to metering circuits; IP2XC protection adds ruggedness against incidental contact and dust ingress in indoor environments. The design also aligns with RoHS and REACH directives, supporting sustainable procurement and long-term compliance reporting. For service teams, the closed cover and color-coded terminals streamline inspections and maintenance planning.Cu busbars 12 x 5 mm, a comprehensive 5-pole arrangement, and N+PE connections up to 95 qmm deliver robust power distribution for metering modules. The busbar-based layout reduces voltage drop and simplifies fault finding, while the CT mounting pad (170 x 30 x 5 mm) and CT rail ensure precise transformer placement for accurate measurement. This architecture enables reliable energy monitoring across varied load profiles and simplifies future retrofits.168 DIN unit capacity ensures ample space for metering circuits; the product width is 500 mm with 24 modular spacings, and overall dimensions are 1050 x 500 x 160 mm. The enclosure uses a RAL 7035 light-grey finish with a closed cover and Stecktechnik fasteners for quick, secure assembly. These installation advantages shorten lead times and minimize on-site modifications.RoHS and REACH declarations, along with WEEE categorization (4. Large Equipment), support regulatory compliance and sustainable disposal. The pre-wired configuration reduces lifecycle costs by cutting field labor and commissioning risk, delivering a lower total cost of ownership for utilities and large industrial sites. In short, it supports energy management objectives with dependable performance and predictable maintenance.
Get a Quick Quote for a ABB 2CPX034041R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034041R9999?
Enquire Now
FAQs
Install inside a standard meter cabinet designed for DIN rail style panels. Mount the enclosure using the 24 modular spacings and 168 DIN unit capacity. Route main feeders through the N+PE 95 qmm terminals and 50 qmm lines, then attach the CT mounting pad to the CT rail. The unit arrives pre-wired, reducing wiring errors and commissioning time.
Key specs include rated voltage up to 415 V, rated current 100 A, 5 poles, 168 DIN unit spaces, dimensions 1050 x 500 x 160 mm, and IP2XC protection. It uses Cu busbars 12 x 5 mm, 24 modular spacings, and a net weight of 17.495 kg. It conforms to EN 61439-1/2 and CE requirements.
Yes. It carries CE conformity under EN 61439-1/2, and RoHS compliance with EU Directive 2011/65/EU and amendments. REACH declarations are also provided, ensuring material declarations and safe handling throughout the product lifecycle.
Ideal for industrial energy metering in factories, process plants, and utility substations. It provides a compact, pre-wired meter panel solution with ample DIN space and a robust IP2XC enclosure, enabling reliable energy monitoring, safer maintenance, and scalable integration with existing switchgear and controlgear assemblies.
Pre-wiring reduces field labor hours and commissioning risk, accelerating project timelines and lowering on-site error rates. The pre-configured connections simplify inspections, support DSOs requirements, and improve overall lifecycle cost of ownership by enabling faster upgrades and easier maintenance planning.
