ABB 2CPX034042R9999 Metering Board - IP2XC
Part Number: 2CPX034042R9999
Quick Summary
Metering Board for ABB 2CPX034042R9999 enables precise measurement and metering in switchgear applications. In practice, engineers often struggle with wiring density and regulatory compliance within compact enclosures. The design aligns with DIN EN 61439-2, DIN EN 61439-3, IP2XC protection, and CE declarations to support safe, compliant installations. This combination helps reduce project risk, accelerate commissioning, and enable scalable expansion using pre-wired meter panels that fit inside standard enclosure footprints and busbar systems. With a 1050 mm height, 500 mm width, and 160 mm depth, it integrates neatly into modern power distribution layouts while supporting DSO-grade requirements and plant-standard finishes like RAL 7035.
Product Information
Extended Description

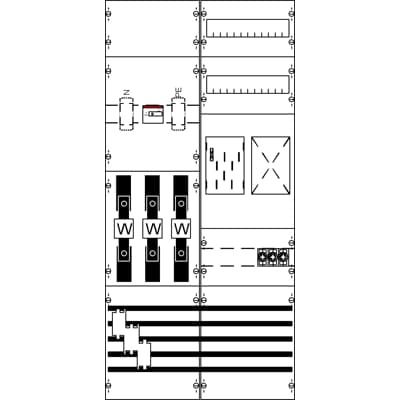

2CPX034042R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D02/3-pole complete with fuse base element D01, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
17.163 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.85 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4619
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: IP2XC protected enclosure with a closed cover and quick-seal connections. Benefit: Enhances safety for live metering circuits and simplifies maintenance, reducing downtime and risk during inspections. Application: Ideal for measurement and metering transformer boards in distribution cabinets and utility substations, where reliable protection is essential. Feature: DIN EN 61439-2/3 conformity and CE declarations. Benefit: Streamlines regulatory approvals and minimizes project risk, enabling faster procurement and commissioning. Application: Useful in industrial switchgear and public utility enclosures requiring strict standard compliance. Feature: Pre-wired per DSO requirements with Cu busbars 12 x 5 mm and 5-pole Stecktechnik; TN-S earthing. Benefit: Cuts on-site wiring time, improves current paths, and enhances grounding reliability. Application: Suited for metering cabinets in substations and feeder panels. Feature: 168 DIN Place Units and 24 modular widths; 1050 x 500 x 160 mm dimensions; RAL 7035 finish. Benefit: Predictable space planning, straightforward integration with other equipment, and a consistent plant appearance. Application: Large-meter panels in utility and industrial environments. Feature: Cover style and materials (Plastic, closed), quick sealable connections. Benefit: Durable enclosure with easy access for installation and service, lowering maintenance costs over the life of the panel. Application: Environments demanding robust, low-maintenance meter panels with reliable sealing.
Get a Quick Quote for a ABB 2CPX034042R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034042R9999?
Enquire Now
FAQs
Yes. The board is designed as a pre-wired metering module with a 1050 x 500 x 160 mm footprint and 168 DIN place units, intended for integration into standard meter cabinets and switchgear assemblies. It supports Cu busbars (12 x 5 mm) and a TN-S earth system, simplifying retrofits and new builds alike.
Key specs include a maximum operating voltage of 415 V, rated current of 100 A, a 5-pole configuration, and one meter cabinet with one meter panel. The enclosure is IP2XC protected and conforms to EN 61439-2/3 standards, with CE declarations supporting regulatory compliance.
Yes. The module is pre-wired to meet DSO requirements and is listed as a measurement and metering transformer board with indirect metering considerations. Its EN 61439-2/3 compliance and CE declarations help ensure suitability for utility-scale installations.
It aligns with DIN EN 61439-2 and DIN EN 61439-3, carries IP2XC protection, and includes an EU Declaration of Conformity. RoHS and REACH declarations are provided, supporting regulatory compliance across EU markets.
The pre-wired design reduces on-site wiring time, lowers commissioning risk, and improves reliability of current paths via Cu busbars. A closed-cover enclosure simplifies servicing and reduces protection-related downtime, contributing to faster project timelines and lower total cost of ownership.
