ABB 2CPX034178R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX034178R9999
Quick Summary
ABB 2CPX034178R9999 Metering Transformer Board enables compact measurement for electrical distribution panels. Engineers often struggle with space, wiring complexity, and ensuring regulatory compliance when adding metering hardware to existing switchgear. This assembly is DIN EN 61439-2 compliant with IP2XC protection and CE conformity, designed for 415 V AC systems up to 75 A and TN-S earthing, offering reliable performance in demanding environments. The module ships pre-wired to DSO requirements and features a 5-pole busbar system, 84 DIN place units, and robust copper busbars, helping reduce install time, errors, and field adjustments. By delivering standardized, pre-assembled meters, it supports faster commissioning and safer operation in BMS or energy monitoring projects, with scalable capacity for future expansion.
Product Information
Extended Description
2CPX034178R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 75 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, current transformer range DIN rail for Single-CT for threading the cable through, parting point after the current transformer Main terminal 2, outgoing connection 50qmm, primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
75 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
8.913 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.269 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

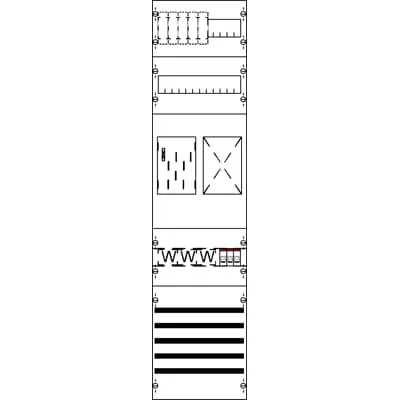

Circuit and distribution diagram KA4300
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-wired, DSO-aligned configuration. Benefit: Reduces field wiring time and wiring errors, speeding up commissioning. Application: Ideal for new meter panels and retrofit projects in energy monitoring systems. Feature: IP2XC enclosure with CE conformity. Benefit: Enhances safety, protects internal components, and ensures regulatory compliance. Application: Suitable for internal meter cabinet installations in distribution boards. Feature: Copper busbars 12 x 5 mm and 5-pole busbar system. Benefit: Provides robust, low-resistance current paths, improving metering accuracy and reliability. Application: Crucial for accurate kWh/kVAR measurements in high-density panels. Feature: 84 DIN place units and 1050 x 250 x 160 mm footprint. Benefit: High-density layout supports scalable metering while maintaining service accessibility. Application: Meter cabinets with space optimization in industrial facilities. Feature: Pre-wired to DSO requirements with TN-S earthing and N+PE connections. Benefit: Reduces field modifications and improves installation safety. Application: Energy distribution panels requiring standardized integration and dependable grounding. Feature: DIN EN 61439-2 and CE declarations. Benefit: Streamlines compliance audits and accelerates project approvals. Application: Panel assemblies in regulated environments or customer audits.
Get a Quick Quote for a ABB 2CPX034178R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034178R9999?
Enquire Now
FAQs
Begin by confirming the device is rated for 415 V AC and 75 A, with IP2XC protection. Mount the enclosure in a suitable TN-S environment, connect N and PE per the specification, align the 5-pole busbar, and ensure the unit is pre-wired to DSO requirements. Verify DIN rail compatibility and securely close the cover after cabling.
Verify nominal voltage of 415 V AC and rated current of 75 A, plus the 5-pole configuration. Check N+PE connections at 50 qmm and the copper busbars 12 x 5 mm. Confirm protection class IP2XC, TN-S earthing, and that the cabinet supports 84 DIN place units for proper spacing and future expansion.
Yes, the meter panel is designed to meet DIN EN 61439-2 and carries CE declarations. This provides documented conformity for metering assemblies, RoHS/REACH compliance, and related safety tests, simplifying audits and ensuring predictable performance during regulatory reviews and customer inspections.
The design accommodates ABB current transformers, featuring a pre-defined space before the CT and a post-CT layout for cable routing. It supports single-CT threading in DIN rails and pre-wired integration with S700 CTs, reducing field modifications and helping ensure metering accuracy and reliable CT performance in energy panels.
RoHS information cites EU Directive 2011/65/EU with amendments; RoHS date is 2024-09-03. REACH declares no substances above 0.1 mass percent, and SCIP data is provided for Germany. WEEE categorizes the unit as large equipment. These details support procurement and end-of-life planning and ensure regulatory alignment across regions.
