ABB 2CPX034183R9999 Metering board - IP2XC, EN61439
Part Number: 2CPX034183R9999
Quick Summary
Metering board ABB 2CPX034183R9999 delivers centralized measurement and metering for switchgear installations. Engineers face long commissioning times and wiring errors, and this pre-wired module helps reduce on-site effort while improving consistency. The design adheres to EN 61439-1/2 and CE declarations, with IP2XC protection for safe indoor use, alongside RoHS and REACH compliance to support regulatory conformity. As a modular ABB solution, it integrates with existing enclosures and meter panels, enabling scalable infrastructure, faster project cycles, and lower total cost of ownership for industrial automation environments.
Product Information
Extended Description

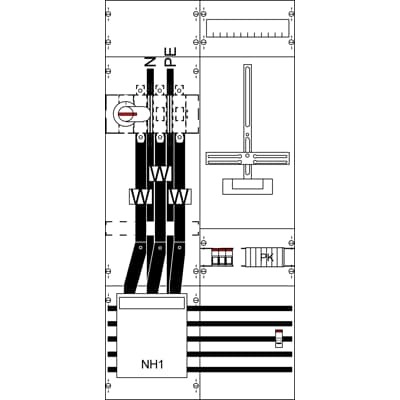

2CPX034183R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse-disconnector switch, 3 pole with fuses 10,3 x 38mm 2A, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
252
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
20.566 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.389 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4276
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled module with Metering cross and pre-wiring per DSO requirements. Benefit: Speeds up installation and reduces field wiring errors, delivering predictable commissioning timelines for substations and industrial plants. Application: Ideal for internal meter cabinets in distribution or switchgear assemblies. Feature: IP2XC protection and EN 61439-1/2 compliance. Benefit: Enhanced safety and reliability in accessible indoor environments, lowering risk during servicing and operation. Application: Suitable for facilities requiring strict enclosure protection and standardized panel assembly.Feature: Compact dimensions and DIN placement compatibility (1050 mm x 500 mm x 160 mm; 252 DIN units). Benefit: Optimized space planning and easier integration into existing layouts. Application: Plant upgrades and new builds where panel footprint must align with existing space.Feature: Cu busbars, fuse/disconnector arrangement, and TN-S earthing. Benefit: Reliable high-current distribution with clear fault paths, reducing maintenance time and improving fault isolation. Application: Meter cabinets and transformer metering sections in medium/low voltage systems.Feature: RoHS/REACH/SCIP compliance and WEEE/B2B classification. Benefit: Legally compliant, sustainable component selection with clear end-of-life handling. Application: Procurement and lifecycle planning for regulated industries.Feature: Aesthetics and accessibility features (RAL 7035, closed cover, quick sealable connections). Benefit: Durable, ergonomic assemblies with straightforward servicing. Application: Indoor control rooms and facility switchgear rooms where uptime matters.
Get a Quick Quote for a ABB 2CPX034183R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034183R9999?
Enquire Now
FAQs
This meter panel is pre-wired and designed to drop into standard enclosures with a 500 mm width and 1050 mm height. Use the 252 DIN units layout to align mounting holes, connect N+PE, and ensure TN-S grounding. Follow the DSO requirements for mounting and fuse-disconnector placement to minimize wiring errors.
Rated operational voltage is 415 V, with a nominal current of 200 A. It features a 5-pole arrangement and EN 61439-1/2 compliance, plus IP2XC protection. RoHS and REACH declarations are included, with a CE conformity declaration for half indirect metering panels.
Yes. The enclosure type is a measurement and metering transformer board with a meter cross, designed for internal use in switchgear and distribution panels, including transformer metering spaces and a dedicated busbar system for reliable current paths.
The panel complies with RoHS (EU Directive 2011/65/EU and 2015/863), REACH, SCIP, and WEEE classifications. It carries CE declarations and is documented for European substance reporting and end-of-life handling.
Pre-wired modules reduce commissioning time and limit field wiring faults, lowering maintenance downtime. The robust IP2XC enclosure and RoHS/REACH compliant materials support longer service life and easier replacement with compatible ABB components, providing a favorable total cost of ownership for ongoing operations.
