ABB 2CPX034204R9999 MeterPanel - IP2XC
Part Number: 2CPX034204R9999
Quick Summary
ABB 2CPX034204R9999 MeterPanel is a ready-to-install meter panel for internal electrical distribution in industrial facilities. Engineers face field wiring complexity, misalignment with enclosure standards, and lengthy commissioning. This unit complies with EN 61439-1, DIN VDE 0603-2-2 standards, and CE conformity, while IP2XC protection adds reliability in demanding environments. By leveraging ABB's robust enclosure design, you gain faster installation, predictable maintenance, and long-term cost savings, while keeping the focus on safe, compliant power metering in process and factory automation. This makes it an ideal fit for OEMs and maintenance teams aiming to shorten project timelines, improve reliability, and ensure consistent metering across multiple lines.
Product Information
Extended Description

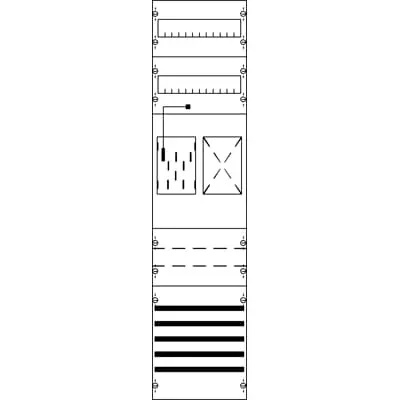

2CPX034204R9999 ABB: Meter panel, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.451 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.709 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Fully assembled meter panel with BKE-I for internal use. This feature reduces field wiring, trims installation time, and lowers labor costs. Application: factory power distribution cabinets and utility metering in process lines, where consistent metering topology and rapid turnover are critical. IP2XC protection and EN 61439-1 compliance. The business impact is enhanced safety and regulatory compliance for indoor installations. Application: indoor distribution, control rooms, and panel outlets in manufacturing environments. 84 DIN place units with a footprint of 1050 x 250 x 160 mm. This configuration maximizes meter density while preserving cabinet space, reducing overall enclosure costs. Application: process lines and utility metering in control cabinets. Lower connection space with a 5-pole bus bar. Impact: simplifies transformer metering integration and grounding reliability. Application: low-voltage meter rooms and multicabinet installations. Closed cover with plastic components and quick-seal connections. Benefit: protects against dust ingress and speeds service access. Application: environments requiring durable enclosure performance and rapid maintenance windows. RAL 7035 light grey finish and a 6.451 kg weight. Impact: on-site handling is straightforward and aesthetic compatibility with standard ABB enclosures. Application: new builds and refurbishments across industrial facilities. RoHS, REACH declarations and SCIP record. Impact: regulatory compliance minimizes supply-chain risk and documentation burden. Application: global deployments across EU and DE markets.
Get a Quick Quote for a ABB 2CPX034204R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034204R9999?
Enquire Now
FAQs
Yes, the meter panel is designed for internal use with 84 DIN place units and a 5-pole busbar layout, facilitating integration with compatible ABB systems and standard DIN rail configurations.
Rated operational voltage is maximum 415 V with a rated current of 0 A in this configuration, suitable for meter cabinet applications where the panel itself does not carry a live load.
Yes. It features IP2XC protection, a closed cover, and EN 61439-1 compliance, making it appropriate for indoor distribution in process and manufacturing environments.
The unit carries CE conformity, EN 61439-1 and DIN VDE 0603-2-2 references, RoHS and REACH declarations, SCIP recording, and WEEE B2B compliance for industrial deployments.
Pre-assembled modules reduce field wiring effort and commissioning time, lowering labor costs; durable enclosure and sealed connections improve uptime and predictable maintenance, delivering faster ROI in new builds and refurbishments.
