ABB 2CPX034205R9999 Meter Panel - IP2XC Protection
Part Number: 2CPX034205R9999
Quick Summary
ABB 2CPX034205R9999 meter panel is a fully assembled enclosure for indoor metering applications. This solution streamlines power distribution by housing a single meter cabinet in a compact footprint. Engineers often struggle with space constraints, certification gaps, and slow installation when integrating meter cabinets, but this panel’s modular design and ready-to-wire features help mitigate those challenges. It adheres to key standards including EN 61439-1 and DIN VDE 0603-2-2, with CE conformity and RoHS compliance, and it carries IP2XC protection for reliable indoor use. The combination of 108 DIN place units, a TN-S grounding scheme, and a 5-pole configuration supports scalable metering layouts, delivering faster commissioning and lower total cost of ownership.
Product Information
Extended Description

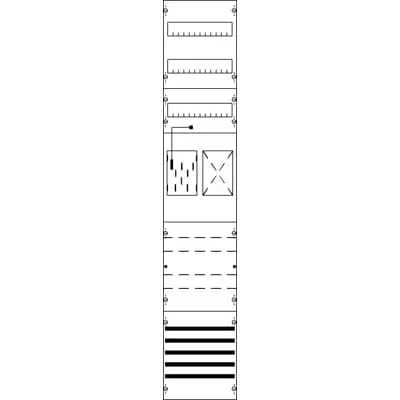

2CPX034205R9999 ABB: Meter panel, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
7.645 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.95 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Fully assembled meter panel with internal BKE-I module for internal use. Business impact: Reduces field assembly time and wiring errors, accelerating project timelines. Application: Indoor utility metering installations where quick deployment is critical. Feature: IP2XC protection and closed cover. Business impact: Enhanced ingress protection for controlled environments, reducing maintenance downtime. Application: Data centers, manufacturing floors, and process facilities with strict cleanliness requirements. Feature: 5-pole TN-S configuration and lower connection space with a bus bar. Business impact: Safer, standardized grounding and streamlined conductor routing, lowering commissioning risks. Application: Industrial power distribution panels requiring robust earthing and tidy wiring layouts. Feature: 108 DIN place units and DIN rail compatibility. Business impact: Highly scalable metering layouts that adapt to evolving measurement needs. Application: Large facilities needing modular capacity for future meter expansions. Feature: RAL 7035 light grey enclosure with closed cover. Business impact: Durable, aesthetically consistent installations that ease integration with existing cabinets. Application: Modernized electrical infrastructure in compliant facilities needing consistent color and finish. Feature: RoHS and REACH declarations with CE conformity. Business impact: Regulatory compliance reduces risk of penalties and supply chain disruptions. Application: Global deployments with strict environmental and product safety standards.
Get a Quick Quote for a ABB 2CPX034205R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034205R9999?
Enquire Now
FAQs
Begin with confirming the TN-S earthing arrangement and install the panel on a stable mounting surface. The unit features a 5-pole configuration and a lower connection space with bus bars designed for straightforward conductor routing. Connect incoming supply to the lower terminals, ensure correct polarity, and secure the BKE-I internal module. Verify IP2XC protection suitability for the installation environment and perform final tightness and insulation checks before energizing the system.
The panel supports a rated operational voltage up to 415 V and is configured with 5 poles (5P). It houses 1 meter cabinet and 1 meter panel with 108 DIN place units, designed for indoor use. The enclosure carries IP2XC protection and adheres to EN 61439-1 and DIN VDE 0603-2-2 standards. The construction uses RAL 7035 light grey plastic covers and provides a closed cover design for protection and durability.
Yes. The design provides 108 DIN place units and a modular approach that supports scalable metering layouts. The 5-pole configuration and lower connection space simplify future expansions and transformer meter spaces. Its internal BKE-I module and compatibility with DIN place systems enable efficient, phased meter deployment in manufacturing facilities where space is at a premium and future growth is anticipated.
The panel complies with EN 61439-1 and DIN VDE 0603-2-2, is CE certified, RoHS compliant with EU Directive 2011/65/EU (Amendment 2015/863), and REACH compliant. It also carries WEEE labeling and SCIP registration, supporting responsible disposal and supply chain transparency. IP2XC protection ensures resilient indoor operation, aligning with typical industrial enclosure requirements.
The closed cover and quick-seal wiring facilitate faster commissioning and reduced maintenance time. The 108 DIN units enable modular upgrades without extensive rewiring, lowering total cost of ownership. Compatibility with standard meter modules and a robust TN-S grounding scheme improve reliability, reduce downtime, and support long-term cost efficiency for facilities with evolving metering needs.
