ABB 2CPX034206R9999 Meter panel - IP2XC
Part Number: 2CPX034206R9999
Quick Summary
Meter panel solutions from ABB streamline indirect metering in industrial facilities, delivering compact, compliant power distribution. Users often struggle with space constraints, integration challenges, and maintaining up-to-date safety standards. This ABB unit aligns with CE conformity, IP2XC protection, and RoHS/REACH requirements to support safe, durable installations. Integrated into ABB's enclosure and electrical infrastructure lineup, it fits meter cabinets with 108 DIN place units and a 250 mm net width, simplifying procurement and installation for engineering teams. The result is greater reliability, faster commissioning, and a lower total cost of ownership through standardized components and clear documentation. This combination accelerates project timelines and site-wide consistency.
Product Information
Extended Description

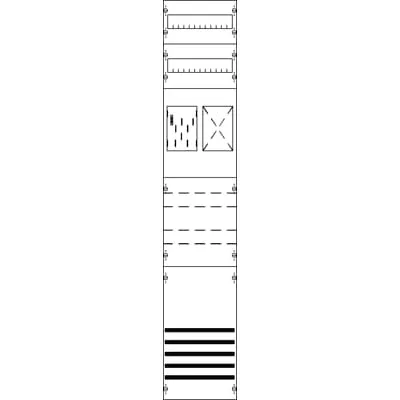

2CPX034206R9999 ABB: Meter panel, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
7.58 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.883 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction meter panel
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature → Business Impact → Application: The meter panel is a fully assembled, 5-pole enclosure module sized at 1350 x 250 x 160 mm with 108 DIN place units and a closed cover. This compact footprint reduces cabinet footprint and enables faster installation in utility rooms and control areas, delivering measurable space savings and easier procurement for projects with tight layouts. Application: suitable for internal meter cabinets and utility room deployments in manufacturing sites, process industries, and data centers. Feature → Business Impact → Application: IP2XC protection and DIN VDE EN 61439-1 compliance ensure safety and reliability in demanding environments, lowering risk of dust ingress and accidental contact, while simplifying acceptance testing and regulatory audits. Application: ideal for new builds and retrofits requiring robust protection levels and documented standards. Feature → Business Impact → Application: Lower connection space configured for a 5-pole TN-S system with bus bars supports clean, scalable wiring, reducing field labor and error rates during installation. Application: supports modular expansion as metering requirements grow across meter cabinets and distribution boards. Feature → Business Impact → Application: Quick-seal connections and a closed cover enhance maintenance efficiency and enclosure integrity, minimizing downtime and improving service life. Application: beneficial for frequent access areas such as utility rooms and service panels where reliability and ease of maintenance matter. Feature → Business Impact → Application: RAL 7035 light grey housing with 108 DIN units and 1 meter cabinet compatibility streamlines visual management and standardization across sites, aiding procurement and on-site branding. Application: multi-site deployments in industrial plants needing consistent aesthetics and documented, repeatable configurations. These features collectively reduce commissioning time, improve regulatory compliance, and support cost-efficient operations in enclosure and electrical infrastructure projects.
Get a Quick Quote for a ABB 2CPX034206R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034206R9999?
Enquire Now
FAQs
This meter panel is designed for indirect metering in industrial facilities and fits a 5-pole TN-S system with IP2XC protection. Dimensions are 1350 mm high, 250 mm wide, and 160 mm deep, with 108 DIN place units. It adheres to DIN VDE 0603-2-2 and EN 61439-1 standards, and is available in RAL 7035 with a closed cover for straightforward integration into enclosure systems.
Key specs include rated operational voltage up to 415 V, 5P electrical configuration, IP2XC protection, and up to 108 DIN units to maximize meter cabinet density. The unit is CE-marked with RoHS/REACH compliance, and is intended for utility rooms and meter cabinets where space efficiency and regulatory conformity are critical.
The product carries CE conformity, RoHS compliance with EU Directive 2011/65/EU and amendments, REACH declarations, and SCIP registration details. WEEE categorization is ‘4. Large Equipment,’ and it is designed for business-to-business installations in enclosure and electrical infrastructure projects.
The panel measures 1350 mm in height, 250 mm in width, and 160 mm in depth, with a net weight of 7.58 kg and a package gross weight of approximately 7.883 kg. It is designed for 108 DIN place units and a 1-meter cabinet footprint, facilitating precise space planning in constrained rooms.
It offers a turnkey module with IP2XC protection, CE/RoHS/REACH compliance, and EN 61439-1 alignment, plus a closed cover and quick-seal connections for easier maintenance. Its 108 DIN units and 5-pole TN-S configuration support scalable metering, consistent procurement, and faster commissioning across multiple sites.
