ABB 2CPX034209R9999 CT Meter Panel - IP2XC
Part Number: 2CPX034209R9999
Quick Summary
ABB 2CPX034209R9999 CT meter panel enables compact control and metering assemblies for medium-voltage distribution. Engineers often struggle with safety-compliant, space-efficient panel solutions that integrate busbars, fuses, and CT hardware. This unit carries CE conformity, RoHS and REACH declarations (EN 61439-1) and IP2XC protection, ensuring reliable, compliant operation. With 84 DIN place units and a 1050 mm height in a 250 mm wide enclosure, it supports predictable wiring layout for retrofit projects and new builds alike. Designed for scalable industrial automation layouts, it pairs with robust enclosure materials and modular busbar systems to accelerate installation and reduce lifecycle costs. In short, it enables streamlined commissioning, easier maintenance planning, and lower total cost of ownership for utilities and manufacturers.
Product Information
Extended Description
2CPX034209R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 164 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
15.837 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.47 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

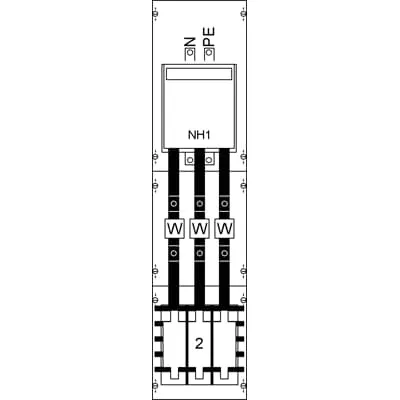

Circuit and distribution diagram KA4060
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Fully assembled CT meter panel with Cu busbars 12 x 5 mm and 5 poles → Accelerates installation by eliminating bespoke on-site assembly → Ideal for internal distribution boards and metering modules. CE conformity, RoHS and REACH declarations with EN 61439-1 compliance → Reduces regulatory risk and audit overhead, enabling compliant plant expansions and safer operations. IP2XC protection with TN-S earthing and a closed cover → Enhances personnel safety and protects sensitive metering circuits in harsh environments, cutting fault-related downtime. 84 DIN placement units, 1050 mm height, 250 mm width, and 7 GU grid unit → Provides predictable wiring density and streamlined cable routing for fast commissioning and future scalability. Quick sealable connections and a conservative fuse base NH2/400 A setup → Simplifies field servicing and reduces maintenance costs, supporting rapid fault isolation and serviceability. RoHS and REACH across the material mix plus WEEE/CMRT/SCIP alignment → Supports sustainable procurement practices and long-term compliance in regulated industries.
Get a Quick Quote for a ABB 2CPX034209R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034209R9999?
Enquire Now
FAQs
Plan for a footprint of 1050 mm height and 250 mm width with 84 DIN placement units. Ensure TN-S earthing, IP2XC protection, and a 5-pole Cu busbar system (12 x 5 mm). Connect N and PE via M8 terminals and route CT wiring to the CT mounting pad (170 x 30 x 5 mm). Consider space for fuse base NH2/400 A and grid unit 7 GU to ease wiring and maintenance.
Yes. It carries the EU EN 61439-1 standard for meter panels, with EU Declaration of Conformity. RoHS compliance follows EU Directive 2011/65/EU and Amendment 2015/863, and a REACH declaration confirms presence of substances >0.1 mass percentage. These certifications support regulatory approvals and procurement processes in regulated industries.
Ideal for internal CT metering within distribution boards and switchgear assemblies in industrial facilities. Its 200 A rating, 5-pole busbar system, IP2XC protection, and 84 DIN units support scalable metering and control configurations, enabling efficient monitoring and safer, compact installations in manufacturing, utilities, and process industries.
Key features include IP2XC protection, TN-S earthing, closed cover, quick sealable connections, and a robust Cu busbar system. The enclosure is designed for 415 V operation, 200 A current, and 5 poles, with 84 DIN placements ensuring predictable wiring. Compatibility with DIN rail-centered layouts and existing ABB components simplifies integration and future expansion.
The fully assembled design reduces field assembly time, while integrated busbars and standardized components lower commissioning time. RoHS/REACH and WEEE compliance minimize regulatory risk, and the CMRT/SCIP declarations support sustainable sourcing. Together, these factors translate to lower downtime, easier parts management, and reduced total cost of ownership over the panel’s lifecycle.
