ABB 2CPX034210R9999 CT meter panel - IP2XC
Part Number: 2CPX034210R9999
Quick Summary
ABB 2CPX034210R9999 CT meter panel enables compact, compliant current metering in switchgear assemblies for industrial plants. This solution addresses space constraints and upgrade paths common in modernization projects. By aligning with EN 61439-1 and DIN VDE 0603-2-2, and supported by CE declarations, RoHS and REACH compliance, it reduces risk and lifecycle costs. The panel’s IP2XC protection and robust RAL 7035 finish support reliable operation in demanding environments, while 84 DIN units and 5-pole TN-S configuration streamline installation. With modular design and clear documentation, it accelerates commissioning and simplifies future expansions while maintaining safety and traceability.
Product Information
Extended Description
2CPX034210R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 192 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Screw connectors (M8), Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
12.487 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.986 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

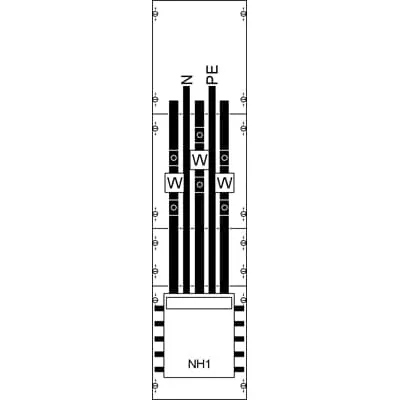

Circuit and distribution diagram KA4061
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Fully assembled CT meter panel for internal use. Business Impact: Reduces on-site assembly time and integration risk, enabling faster project realization. Application: Ideal for switchgear assemblies and distribution boards in factories and facilities. Feature: Rated 200 A, 5 poles, TN-S earthing system. Business Impact: Supports reliable metering for medium-to-high load scenarios with robust fault tolerance. Application: Suitable for main and sectional meter paths in industrial power distributions. Feature: IP2XC enclosure protection with a closed cover. Business Impact: Enhances protection against incidental contact and environmental ingress, lowering maintenance downtime. Application: Indoor or semi-controlled environments in process plants. Feature: Cu busbars 12 x 5 mm and dedicated CT mounting pad. Business Impact: Improves electrical performance, reduces thermal rise, and simplifies future upgrades via modular busbar connections. Application: Upgradable meter assemblies and evolving protection schemes. Feature: 84 DIN place units, RAL 7035 light grey finish, and N+PE (M8) connections. Business Impact: Supports scalable metering layout, consistent labeling, and straightforward installation with standardized components. Application: Large switchgear housings and retrofit projects. Feature: Compliance and documentation (EN 61439-1, DIN VDE 0603-2-2, CE, RoHS, REACH). Business Impact: Minimizes regulatory risk, accelerates approvals, and improves traceability. Application: Substations, automation panels, and controlled environments requiring formal declarations.
Get a Quick Quote for a ABB 2CPX034210R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034210R9999?
Enquire Now
FAQs
This CT meter panel is a fully assembled module designed for internal use in switchgear. It features 84 DIN unit capacity, 5-pole TN-S earthing, copper busbars (12 x 5 mm), and N+PE connections (M8). Its dimensions are 1050 x 250 x 160 mm, enabling straightforward mounting and integration with compatible panels and busbar systems.
Key specs include a maximum operating voltage of 415 V AC and a rated current of 200 A with an InA of 192 A for the switchgear assembly. The enclosure provides IP2XC protection, and the unit supports a 5P configuration. These specs guide safe installation, cable sizing, and cooling considerations for reliable metering.
Yes. The product is described with RoHS and REACH compliance and is configured for meter panels used in half indirect metering schemes. It supports standardized connections and labeling, and its documentation caters to metering scenarios typical in indoor distribution boards and related applications.
The panel complies with EN 61439-1 and DIN VDE 0603-2-2, and carries a CE declaration of conformity. RoHS and REACH compliance are stated, along with SCIP and WEEE considerations. These standards and declarations help ensure regulatory alignment and safer product lifecycle management.
The design emphasizes ease of upgrade via busbar-based connections and a clear mounting layout, reducing modification time and downtime. With durable RAL 7035 housing, closed covers, and documented compatibility (e.g., CT rail mounting and voltage path upgrade options), operators gain quicker commissioning, lower lifecycle risk, and predictable maintenance intervals, improving total cost of ownership.
