ABB 2CPX034211R9999 CT Meter Panel - IP2XC Enclosure
Part Number: 2CPX034211R9999
Quick Summary
ABB 2CPX034211R9999 CT meter panel provides a compact, pre-wired distribution solution for internal high-current metering. Engineers struggle with space constraints, upgrade downtime, and compliance when modernizing legacy metering. It carries CE conformity, RoHS and REACH declarations, and IP2XC protection, aligning with European safety and environmental standards. With modular assembly and a robust Cu busbar system, this panel accelerates commissioning, reduces wiring errors, and supports scalable metering deployments in growing facilities. The enclosure’s 84 DIN places, 1050 mm height, and 250 mm width enable integration into existing distribution racks while minimizing footprint.
Product Information
Extended Description

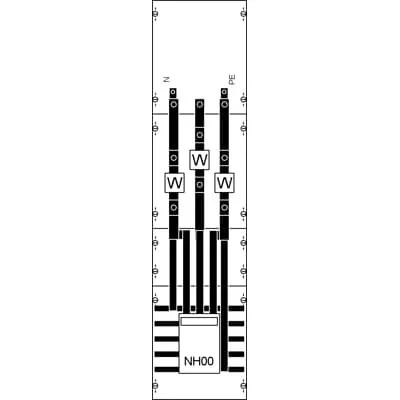

2CPX034211R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 128 A, Rated current of the assembly of switchgear and controlgear InA 128 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Screw connectors (M8), Connection N+PE (M8), Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
128 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
10.746 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
11.175 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4062
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature → Business Impact → Application: IP2XC-rated enclosure with closed cover enhances operator safety and dust ingress protection, reducing maintenance downtime and extending service intervals in indoor electrical rooms. This translates to lower total cost of ownership and safer daily operations for critical metering points. Application: indoor CT meter panels in commercial/industrial facilities requiring reliable protection for high-current metering. Feature → Business Impact → Application: 1050 x 250 x 160 mm footprint paired with 84 DIN place units enables scalable metering layouts without oversized footprints. Application: retrofits and new builds where space is at a premium. Feature → Business Impact → Application: 12 x 5 mm Cu busbars and a dedicated 5-pole, TN-S earthing scheme simplify busbar installation, improve fault clearance, and reduce wiring complexity. Application: end-to-end CT-based metering with robust electrical distribution. Feature → Business Impact → Application: N+PE connections via M8 and a CT mounting pad (170 x 30 x 5 mm) streamline installation and enable accurate CT placement. Application: precise current measurement and reliable CT alignment. Feature → Business Impact → Application: RoHS and REACH compliance along with CE declarations ensure regulatory conformity across EU markets, reducing risk during audits. Application: European deployments with strict environmental and safety requirements. Feature → Business Impact → Application: Quick-seal connections and closed covers simplify field service and maintenance, enabling faster commissioning and easier routine checks. Application: turnkey deployments with minimal downtime.
Get a Quick Quote for a ABB 2CPX034211R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034211R9999?
Enquire Now
FAQs
This CT meter panel is designed for internal metering with a 5-pole layout, 128 A rated current, and Cu busbars 12 x 5 mm. It features TN-S earthing, N+PE connections (M8), and an 84 DIN unit footprint. Plan for a 1050 x 250 x 160 mm enclosure, ensure space in a protected indoor environment, and verify CE/ RoHS/ REACH compliance for EU projects.
IP2XC indicates protection against finger contact and limited ingress of solid objects, with enhanced enclosure integrity for indoor use. For this meter panel, IP2XC supports safer operation around live components and reduces risk during maintenance. However, it is intended for controlled indoor environments rather than harsh outdoor installations.
Yes. The panel carries CE conformity and RoHS/REACH declarations, including EU RoHS 2011/65/EU and 2015/863 amendments. ABB provides a Declaration of Conformity and a REACH statement, along with WEEE categorization, ensuring regulatory compliance and streamlined audits for European deployments.
Key specs include rated operational voltage up to 415 V AC, rated current 128 A, and 5 poles. It supports a Cu busbar system (12 x 5 mm) with TN-S earthing, N+PE connections (M8), CT mounting pad 170 x 30 x 5 mm, and a 84 DIN unit capacity. Dimensions are 1050 x 250 x 160 mm for space planning.
The panel offers faster commissioning due to modular assembly, reduced wiring errors from a unified busbar system, and robust protection (IP2XC) that lowers maintenance frequency. Regulatory compliance minimizes audit risk, while the standardized 84 DIN unit design supports scalable metering deployments, contributing to lower lifecycle costs and improved uptime.
