ABB 2CPX034212R9999 CT Meter Panel - RoHS IP2XC
Part Number: 2CPX034212R9999
Quick Summary
ABB 2CPX034212R9999 CT meter panel provides compact, ready-to-install power distribution for industrial facilities. Engineers often face added complexity when integrating meter cabinets that must meet stringent IP ratings, safety standards, and space constraints. It carries IP2XC protection, along with RoHS and REACH compliance, and CE conformity to EN 61439-1, giving assurance across regulatory and quality checks. Designed for seamless integration into ABB enclosures and broader electrical infrastructure, this meter panel supports efficient procurement, faster installation, and reliable operation in control rooms and switchgear assemblies. In practice, it helps teams reduce downtime and warranty risk while aligning with ETIM, WEEE, and SCIP requirements.
Product Information
Extended Description
2CPX034212R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 128 A, Rated current of the assembly of switchgear and controlgear InA 128 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), Connection N+PE (M8), Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
128 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
12.989 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
13.509 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

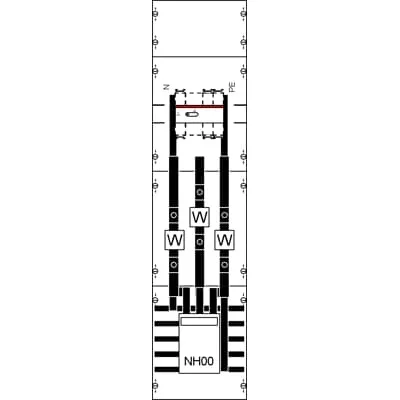

Circuit and distribution diagram KA4064
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: IP2XC protection and enclosed design. Benefit: Provides enhanced operator safety and environmental protection, enabling compliant operation in indoor switchgear environments. Application: Ideal for control cabinets and meter panels within industrial facilities that require reliable ingress protection. Feature: Generous DIN rail capacity and modular footprint. Benefit: 84 DIN place units with a 1050 × 250 × 160 mm footprint support scalable metering and future expansion, reducing the need for early cabinet replacement. Application: Suitable for engineering rooms and compact switchgear assemblies with space constraints. Feature: 5-pole copper busbar system with TN-S grounding. Benefit: Guarantees robust, low-resistance current paths and straightforward earthing, improving short-circuit resilience and fault clearance. Application: Power distribution nodes in commercial and industrial installations. Feature: Pre-assembled, closed cover and quick-seal connections. Benefit: Cuts field wiring time, lowers installation labor costs, and minimizes bending or misconnection risks. Application: Factory floors, panel shops, and maintenance-friendly environments. Feature: Material compliance and color standardization. Benefit: RoHS and REACH declarations plus CE conformity simplify regulatory audits, while RAL 7035 light grey finish ensures consistent aesthetics in modern facilities. Application: Projects with strict environmental and appearance requirements. Feature: DIN place unit compatibility and CT mounting options. Benefit: Supports seamless integration with CT mounting pads and CT rails for accurate current measurement and easy servicing. Application: Metering and distribution sections within industrial control panels.
Get a Quick Quote for a ABB 2CPX034212R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034212R9999?
Enquire Now
FAQs
This CT meter panel is a fully assembled module designed for indoor use with IP2XC protection. It measures 1050 x 250 x 160 mm and offers 84 DIN unit space, 12 x 5 mm Cu busbars, and a 5-pole arrangement. It supports quick-seal connections and N+PE (M8) termination, enabling straightforward integration into existing switchgear and control cabinets.
The panel supports a maximum rated operational voltage of 415 V AC and a rated current of 128 A. It features a 5-pole configuration, Cu busbars 12 x 5 mm, a TN‑S grounding system, and a CT mounting pad (170 x 30 x 5 mm). The enclosure height is 1050 mm, width 250 mm, depth 160 mm, with 84 DIN placement units.
Yes. It is CE-conformant with EN 61439-1 compliance, RoHS and REACH declarations, and a WEEE classification. The IP2XC protection level adds environmental safety for indoor installations, and SCIP registration supports responsible material reporting for critical infrastructure programs.
Pre-assembled modules, closed covers, and quick-seal connections reduce field wiring time and labor costs. The 84 DIN unit capacity supports phased expansion without cabinet replacement, while TN-S grounding and robust Cu busbars improve reliability, lowering maintenance interventions and commissioning time for panel assemblies.
The enclosure uses a light grey RAL 7035 finish with plastic covers and a protective IP2XC enclosure. It weighs 12.989 kg net and 13.509 kg packed, reflecting a sturdy yet manageable unit. Compliance details include RoHS, REACH dates in 2024, and CE conformity for streamlined regulatory review.
