ABB 2CPX034213R9999 CT Meter Panel - IP2XC Protection
Part Number: 2CPX034213R9999
Quick Summary
ABB 2CPX034213R9999 CT meter panel provides a ready-to-install, compliant distribution solution for internal power networks. Engineers often confront integration delays, incomplete documentation, and compliance gaps when sourcing meter panels, which extend project timelines and increase risk. This unit is built to EN 61439-1 and DIN VDE 0603-2-2, with IP2XC protection and a CE declaration, plus RoHS and REACH compliance, ensuring safety and regulatory alignment from day one. It ships as a fully assembled module to streamline commissioning, reducing field wiring and testing time. With a light-gray RAL 7035 enclosure and 84 DIN place units, it also supports scalable expansion and lifecycle cost efficiency for industrial power distribution and enclosure projects.
Product Information
Extended Description

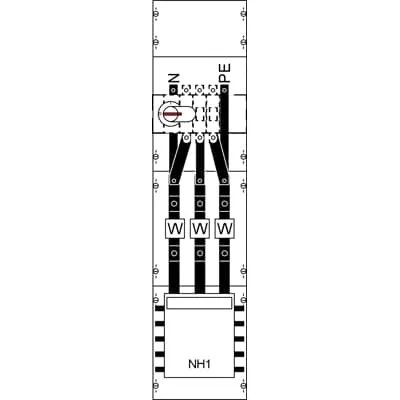

2CPX034213R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 189 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch disconnector 250 A / 4-pole, Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
13.708 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.256 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4065
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Fully assembled CT meter panel with a 5-pole TN-S busbar system and Cu busbars 12 x 5 mm; Business Impact: Reduces on-site wiring and commissioning risks, enabling faster startup; Application: Internal meter panel installations within distribution boards and control panels. The enclosure offers IP2XC protection, closed cover, and 84 DIN place units; Business Impact: Enhances operator safety and space planning while maintaining future expansion capabilities; Application: Industrial power distribution in harsh environments. Feature: Dimensions 1050 x 250 x 160 mm and weight ~13.708 kg; Business Impact: Predictable fit in standardized racks and improved logistics, lowering install time; Application: Wall- or panel-mounted meter panels in automation infrastructure. Feature: Lower connection space with 5-pole busbar and TN-S earthing; Business Impact: Easier integration with existing switchgear and reduced wiring complexity; Application: Grid unit configurations and modular switchgear assemblies. Feature: CT mounting pad with CT rail and NH1/250A fuse switch disconnector; Business Impact: Streamlines current measurement paths and protection, lowering part count and mismatch risk; Application: Metering and protection path in control cabinets. Feature: RoHS/REACH/CE compliance and WEEE alignment; Business Impact: Regulatory risk reduction and smoother procurement across regions; Application: Global manufacturing and distribution environments with strict compliance needs.
Get a Quick Quote for a ABB 2CPX034213R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034213R9999?
Enquire Now
FAQs
It features a 5P TN-S busbar system, Cu busbars 12 x 5 mm, and a NH1/250A fuse switch disconnector, with a CT mounting pad for direct CTs and an IP2XC enclosure. The design supports integration via busbars to other boards and modules, simplifying upgrade paths in existing switchgear layouts.
Rated operational voltage up to 415 V, rated current 200 A, 5 poles, IP2XC protection, 84 DIN place units, dimensions 1050 x 250 x 160 mm, TN-S earthing, Cu busbars 12 x 5 mm, and NH1/250A fuse switch disconnector. It is compliant with EN 61439-1 and DIN VDE 0603-2-2.
Yes. It carries CE declarations for meter panels, RoHS compliance under EU Directive 2011/65/EU (and 2015/863), REACH declarations, and SCIP registration. WEEE categorization is addressed for proper end-of-life handling.
Ideal for half indirect metering and internal distribution within industrial control cabinets, including grid unit configurations (7 GU) and internal power distribution in automation infrastructure. It supports safe, scalable deployment in low to medium voltage environments.
The unit ships fully assembled, reducing commissioning time and wiring errors. Its robust enclosure, modular 84 DIN units, and compliant materials minimize lifecycle costs, support regulatory audits, and lower long-term maintenance and upgrade risks.
