ABB 2CPX034215R9999 CT Meter Panel - IP2XC
Part Number: 2CPX034215R9999
Quick Summary
ABB 2CPX034215R9999 CT meter panel is a fully assembled distribution unit for indoor electrical systems. Engineers often struggle with meter panels that don’t fit tight spaces or require complex wiring, delaying projects and increasing risk. This enclosure aligns with EN 61439-1, DIN VDE 0603-2-2, and IP2XC protection, while CE conformity and RoHS/REACH declarations ensure regulatory compliance. For installers and procurement teams, the combination of a compact footprint, robust grounding, and modular busbar design translates into faster deployment, reduced field wiring, and lower lifecycle costs, making it suitable for enclosure and electrical infrastructure applications in industrial facilities.
Product Information
Extended Description
2CPX034215R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, PE+N Cu 30 x 5 mm, Connection N+PE (M8), Grid unit 7 GU, Overall height 1, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
1
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
eb989d83-8a03-456c-aa8b-860dff6831fb Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
12.531 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
13.032 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

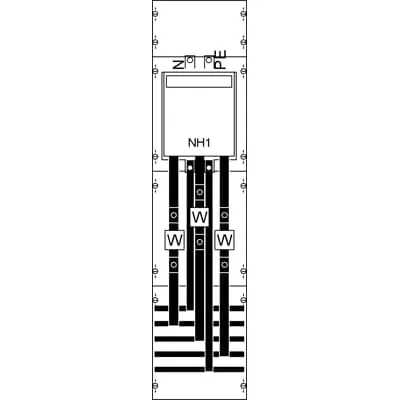

Circuit and distribution diagram KA4069
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature → Business Impact → Application: The CT meter panel is rated for 415 V and 200 A, enabling safe, scalable power distribution in mid-size installations, reducing the need for multiple smaller panels and consolidating metering. This translates to improved space efficiency and streamlined commissioning in control rooms and electrical rooms. Application: indoor metering in factories and process plants where half indirect metering is deployed. Feature → Business Impact → Application: 5-pole construction with Cu busbars (12 x 5 mm) and a 84 DIN unit footprint delivers robust, low-resistance connections and straightforward wiring layouts, cutting installation time and enabling reliable fault tracing in live circuits. Application: main distribution frames and segment metering in industrial facilities. Feature → Business Impact → Application: IP2XC rated enclosure with closed covers and TN-S grounding supports safer operation and easier maintenance, reducing accidental contact risk and simplifying compliance checks. Application: high‑safety metering enclosures in production environments. Feature → Business Impact → Application: RoHS and REACH compliance with detailed declarations (SCIP, WEEE 4 category) minimizes regulatory risk and waste handling complexity, supporting cleaner audits and easier end-of-life planning. Application: regulatory-compliant enclosures in European markets. Feature → Business Impact → Application: EN 61439-1 and DIN VDE 0603-2-2 alignment ensures interoperability with standard components and predictable performance across vendors, improving sourcing flexibility and spare-part planning. Application: standardization-friendly facility upgrades and expansion projects.
Get a Quick Quote for a ABB 2CPX034215R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034215R9999?
Enquire Now
FAQs
This meter panel uses 84 DIN units and a 250 mm width, with TN-S earth and N+PE connections (M8). It supports Cu busbars 12 x 5 mm and a 1050 x 250 x 160 mm housing, enabling straightforward, tool-friendly wiring and modular expansion in indoor installations.
It is rated for a maximum operational voltage of 415 V and a nominal current of 200 A, with a 5P configuration. The enclosure provides IP2XC protection and complies with EN 61439-1 and DIN VDE 0603-2-2 for reliable, safe operation in industrial environments.
Yes. The product data specifies a meter-panel design intended for half indirect metering, supporting CT mounting pads and CT rails to accommodate measurement equipment within a compact enclosure suitable for medium-scale plant metering.
The panel includes CE conformity and RoHS/REACH declarations, WEEE categorization, SCIP registration, and ETIM/eClass classifications. These ensure regulatory compliance across European markets and facilitate smoother audits and disposal planning.
The design emphasizes quick-sealable connections, robust busbar assembly, and a closed cover that reduces maintenance time and fault exposure. Combined with RoHS/REACH compliance and modular DIN-unit layout, it lowers lifecycle costs and supports scalable expansion.
