ABB 2CPX034223R9999 Meter Panel ComfortLine - IP2XC
Part Number: 2CPX034223R9999
Quick Summary
ABB 2CPX034223R9999 Meter Panel is a pre-wired metering enclosure designed for ComfortLine A and ComfortLine AD series. Engineers often face extended wiring, partial assemblies, and non-standard components that drive project delays. This meter panel offers IP2XC protection, CE conformity, and RoHS/REACH declarations to support safe, compliant deployments. Designed for ComfortLine A and ComfortLine AD series, it streamlines procurement, reduces install time, and delivers consistent metering performance for data centers, manufacturing lines, and building services. The pre-wired metering module, TN-S earthing, and busbar integration reduce field wiring errors and enable faster commissioning, while the 84 DIN unit footprint aligns with standardized panel widths.
Product Information
Extended Description

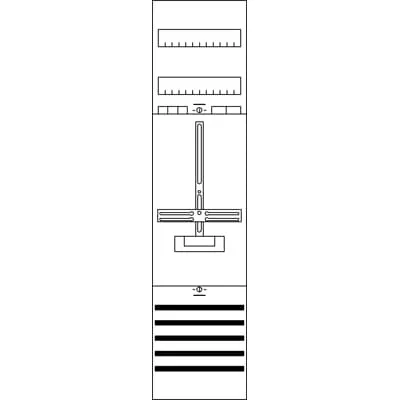

2CPX034223R9999 ABB: Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, degree of protection IP2XC, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, with-out, system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 1, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Current (In)
63 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
5.34 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.554 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction meter panel
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
Object Classification Code
U
Feature: Fully assembled meter panel for ComfortLine A and ComfortLine AD series. Business Impact: Accelerates project timelines by removing on-site assembly and reducing wiring errors. Application: Ideal for data centers, manufacturing lines, and commercial buildings that require reliable, quickly commissioned metering solutions. Feature: Metering module pre-wired with TN-S earthing and busbar integration. Business Impact: Simplifies installation and enhances safety with direct connection pathways and structured grounding. Application: Suitable for new builds and retrofit projects where commissioning speed is critical. Feature: IP2XC protection and closed cover design. Business Impact: Improves user safety and protects internal components from incidental contact and minor contaminants. Application: Electrical rooms and service panels with frequent access needs. Feature: 63 A rated current, 5P, 84 DIN places, 1050 x 250 x 160 mm footprint. Business Impact: Supports medium-duty metering with scalable space efficiency and straightforward integration with standard DIN rails. Application: Main meter sections in mid-size distributions. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Reduces regulatory risk and environmental impact, simplifying supplier audits. Application: Global deployments across regulated markets. Feature: Pre-wired meter module and ease of compatibility with ComfortLine A/AD. Business Impact: Speeds up commissioning, minimizes spare-part inventory, and lowers total cost of ownership. Application: New installations and retrofits in industrial and commercial facilities. Weight and dimensions: Net weight 5.34 kg, product width 250 mm, height 1050 mm, depth 160 mm, with a color of RAL 7035 light grey. Business Impact: Lightweight yet robust packaging supports efficient logistics and installation. Application: Standardized panel enclosures for utility and plant rooms.
Get a Quick Quote for a ABB 2CPX034223R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034223R9999?
Enquire Now
FAQs
This meter panel is designed for ComfortLine A and ComfortLine AD series, featuring a pre-wired metering module, TN-S earthing, and a 5P configuration with a busbar for easy integration. It aligns with the ComfortLine meter board system, ensuring seamless collaboration with existing ABB metering assets and standardized DIN spacing for reliable field installation.
The unit provides a rated current of 63 A, a 5-pole configuration, and includes 84 DIN places for metering modules. It has a 1050 mm high, 250 mm wide, and 160 mm deep enclosure with IP2XC protection, TN-S earthing, and a pre-wired metering module to simplify and speed up commissioning.
Yes. The meter panel is engineered for both commercial and industrial power distributions. Its IP2XC protection, CE conformity, and RoHS/REACH declarations ensure safety and regulatory compliance, while the ComfortLine integration supports scalable metering in building services, data centers, and manufacturing environments.
The unit includes the EU Declaration of Conformity for the ComfortLine Meter board system A, CE marking, RoHS compliance, and a REACH declaration. WEEE categorization is 4 for large equipment, with a B2C/B2B designation supporting global disposal and compliance workflows.
The pre-wired metering module reduces on-site wiring time and error potential, accelerating commissioning and reducing labor costs. With TN-S grounding and a built-in busbar, installation is safer and more predictable, leading to faster project timelines, lower risk of field faults, and improved total cost of ownership for mid-size distribution applications.
