ABB 2CPX034227R9999 CT meter panel - IP2XC 5P
Part Number: 2CPX034227R9999
Quick Summary
ABB 2CPX034227R9999 CT meter panel is a purpose-built enclosure solution for internal electrical distribution in industrial facilities. Engineers often struggle to harmonize metering accuracy, protection, and space constraints within existing switchboards. This panel delivers EN 61439-1 and DIN VDE 0603-2-2 compliance, IP2XC protection, and CE marking to address safety and regulatory requirements. By combining a robust 5-pole configuration with a 415 V AC rating and 250 A nominal current, it supports scalable metering while reducing wiring errors and installation time. The design also leverages a Cu busbar system and a compact footprint, making it a reliable choice for modern industrial automation and enclosure upgrades.
Product Information
Extended Description

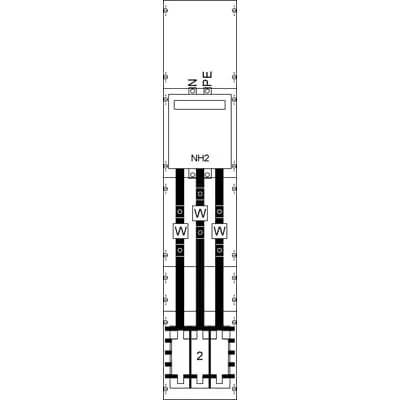

2CPX034227R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 266 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 3 Fuse switch disconnector NH00/400 A (M12), Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
20.722 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.551 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4070
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Five-pole CT meter panel with Cu busbars → Business Impact: Ensures reliable current paths and minimal voltage drop across the assembly, reducing measurement error and maintenance costs. Application: Ideal for semi-indirect metering in industrial switchgear and distribution boards. Feature: Compact dimensions 1350 x 250 x 160 mm with 108 DIN place units → Business Impact: Maximizes space efficiency and simplifies retrofits in crowded control rooms, enabling standardized layouts across facilities. Application: Retrofit projects and new builds in manufacturing lines. Feature: IP2XC protection with closed cover → Business Impact: Enhanced ingress protection and operator safety, reducing unplanned downtime due to dust ingress or moisture. Application: Indoor factory installations with constrained environments. Feature: RoHS and REACH compliance with CE declaration → Business Impact: Streamlined procurement and regulatory risk reduction for global supply chains. Application: Medical-grade or highly regulated environments where compliance is mandatory. Feature: Ready-to-wire configuration with quick-seal connections and CT mounting pad → Business Impact: Faster installation and lower field wiring errors, delivering shorter project lead times. Application: New installations and upgrades in large-scale automation projects.
Get a Quick Quote for a ABB 2CPX034227R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034227R9999?
Enquire Now
FAQs
The meter panel is designed for indoor use with IP2XC protection and a TN-S earthing arrangement. It ships as a fully assembled module and integrates a 5-pole, Cu busbar system with a CT mounting pad. Use the 108 DIN unit footprint to align with standard enclosure rails, connect N and PE via M12 points, and secure the lid with the quick-seal connections to minimize field wiring and install time.
Key ratings include a rated operational voltage of up to 415 V AC at 50/60 Hz and a nominal current of 250 A, with a protection class IP2XC. The assembly permits a rated current of the switchgear/inA up to 266 A and includes a 5-pole configuration with 2 x 12 x 5 mm Cu busbars, supporting flexible metering and protection in industrial environments.
Yes. The enclosure is specifically described as a CT meter panel with provisions such as a 5-pole arrangement, busbar system, and mounting pads designed for CT assemblies, making it well-suited for half indirect metering within industrial distribution boards and related automation infrastructure.
The product complies with EN 61439-1 and DIN VDE 0603-2-2, carries CE declarations, and is RoHS and REACH compliant. It also aligns with WEEE and SCIP documentation, supporting safe, compliant deployment in global manufacturing, energy, and process automation environments.
The fully assembled module with quick-seal connections reduces field wiring and commissioning time, while IP2XC protection and CE/RoHS/REACH compliance lower downtime and regulatory risk. The Cu busbars and robust enclosure support long-term reliability, minimizing replacement cycles and contributing to lower total cost of ownership in metering and distribution applications.
