ABB 2CPX034228R9999 CT meter panel - IP2XC, 5P
Part Number: 2CPX034228R9999
Quick Summary
CT meter panel from ABB provides compact, compliant power distribution for industrial electrical installations. Engineers rely on reliable meter panels to consolidate CT metering, busbar routes, and termination in a single, ready-to-install module. This design addresses common pain points such as limited installation space, complex wiring, and regulatory compliance overhead. The product complies with EN 61439-1 and DIN VDE 0603-2-2, carries CE declaration of conformity, and provides IP2XC protection for internal mounting. With RoHS and REACH declarations, it supports sustainable procurement and lifecycle management. For projects within ABB's Enclosures & Electrical Infrastructure portfolio, the panel offers predictable installation, easier upgrades, and robust safety margins throughout the panel's service life.
Product Information
Extended Description
2CPX034228R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 284 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Screw connectors (M10), Connection N+PE (M10), Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
15.624 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.249 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

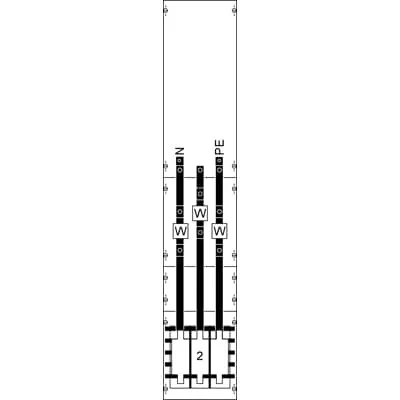

Circuit and distribution diagram KA4077
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Fully assembled CT meter panel for internal CT metering and distribution reduces on-site assembly time and wiring risk. It integrates CT metering, copper busbars, and termination points in a compact 1350 x 250 x 160 mm enclosure, delivering faster commissioning and consistent performance. The IP2XC protection rating protects sensitive components during indoor installation, lowering maintenance events and improving operator safety in factory environments. Compliance with EN 61439-1 and DIN VDE 0603-2-2 ensures regulatory acceptance and smoother site approval, while CE certification supports international deployments. The 5-pole configuration with a 2 x 12 x 5 mm Cu busbar system enables scalable wiring and straightforward upgrades as power needs evolve. RoHS and REACH declarations plus CMRT/SCIP/WEEE data support responsible sourcing and lifecycle cost management, reducing compliance risk for procurement teams. Dimensions, color, and DIN placement (108 units) simplify room planning and integration with ABB enclosure infrastructure, delivering predictable installation outcomes and lower total cost of ownership over the panel lifecycle.
Get a Quick Quote for a ABB 2CPX034228R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034228R9999?
Enquire Now
FAQs
ABB’s 2CPX034228R9999 CT meter panel is designed for internal, half indirect metering in industrial switchgear and controlgear assemblies. It consolidates current transformers, busbars, and terminations into a single, ready-to-install enclosure, reducing installation time and wiring complexity. The 5-pole configuration and 108 DIN units support scalable metering solutions in compact spaces.
Yes. The ABB CT meter panel is designed to EN 61439-1 and DIN VDE 0603-2-2 compliant, ensuring safe, reliable operation in industrial environments. It also features CE conformity documentation and an IP2XC rating for interior protection. These standards support regulatory acceptance, ease commissioning, and long-term lifecycle performance in control panels and enclosure systems.
This panel uses 108 DIN place units with a 1350 mm height, 250 mm width, and 160 mm depth, finished in RAL 7035. It supports a Cu busbar system, N+PE connections (M10), and a 5-pole arrangement, enabling straightforward wiring, future upgrades, and compatibility with standard ABB enclosure infrastructures.
Yes. The panel includes RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863 with RoHS date 20240903, plus REACH declarations and CMRT. ABB also provides SCIP and WEEE information to support responsible sourcing, material transparency, and regulatory reporting in industrial supply chains.
The CT meter panel reduces maintenance and spare parts complexity by integrating metering, protection, and wiring in a single unit. Its standardized 108 DIN units and durable 7035 finish simplify replacements, while EN 61439-1 compliance minimizes commissioning risk. The lifecycle supports RoHS/REACH compliance and long service intervals, delivering lower total cost of ownership for industrial facilities.
