ABB 2CPX034229R9999 CT meter panel - IP2XC, EN 61439-2
Part Number: 2CPX034229R9999
Quick Summary
ABB CT meter panel is a ready-to-install enclosure for centralized metering and distribution within industrial electrical rooms. Projects often stall when assembling compliant meter cabinets from disparate parts or when protection schemes don’t align with current loads. This unit delivers a complete, DIN EN 61439-2/CE-conformant solution with IP2XC protection, robust copper busbars, and a scalable 5-pole switch arrangement. It also includes RoHS and REACH compliance, with a TN-S earthing system and a 250 A rating for reliable operation in mid-size power networks. With a footprint of 1350 x 250 x 160 mm and 108 DIN units, it simplifies planning, procurement, and installation while supporting modern enclosures & electrical infrastructure needs for growing facilities.
Product Information
Extended Description
2CPX034229R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 284 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring Cu-Busbar 30 x 5 mm, Connection N+PE (M8), Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
20.524 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.345 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

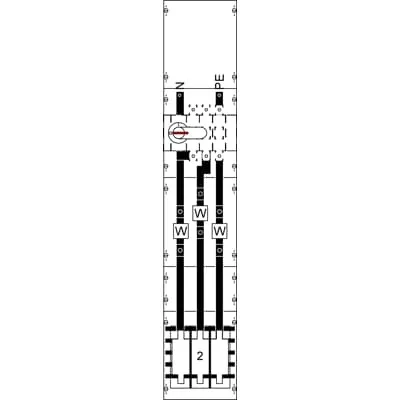

Circuit and distribution diagram KA4078
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled module reduces field assembly time and minimizes wiring errors, delivering faster commissioning and lower total installed cost. The IP2XC enclosure provides robust protection in sensitive plant spaces, improving safety and reducing downtime caused by ingress or accidental contact. Copper busbars (2 x 12 x 5 mm) and a 5-pole switch arrangement support reliable, high-current distribution with immediate upgrade potential to voltage path protection fuses, catering to future capacity needs. The TN-S earthing system and 415 V rated operation up to 250 A IN ensure compliant operation across a range of industrial applications, while the 108 DIN unit footprint (height 1350 mm, width 250 mm, depth 160 mm) enables precise planning for space-constrained electrical rooms. Quick sealable connections and a closed cover simplify maintenance and protect critical metering circuits, reducing life-cycle costs and supporting scalable enclosures & electrical infrastructure for growing facilities.
Get a Quick Quote for a ABB 2CPX034229R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034229R9999?
Enquire Now
FAQs
Begin by planning the 1350 x 250 x 160 mm footprint in a protected electrical room. Use the TN-S earth connection (N+PE via M8) and connect the 5-pole switch (M10) with copper busbars 2 x 12 x 5 mm. Ensure the enclosure is closed with the provided fittings, and reference the 108 DIN unit grid to locate components precisely. The unit’s quick-seal connections simplify wiring and reduce labor costs during commissioning.
This CT meter panel complies with EN 61439-1/2 and DIN EN 61439-2, with CE declarations and RoHS/REACH compliance. It is designed for half indirect metering in industrial environments and supports EU declarations of conformity, WEEE categorization, and SCIP tracking where applicable.
Yes. The design includes a 150 mm range for upgrading to voltage-path protection fuses, enabling future-proofing as protection schemes evolve without replacing the cabinet. The 5-pole arrangement and available space support adding fuse bases and related protection devices.
Key specs include a maximum operating voltage of 415 V, nominal current of 250 A, IP2XC enclosure protection, and 5 poles. Dimensions are 1350 mm height, 250 mm width, and 160 mm depth, with a 108 DIN unit grid. The unit is designed for copper busbars and TN-S earthing, delivering reliable, compliant power distribution in industrial facilities.
The unit has a product net weight of 20.524 kg with a packed weight around 21.345 kg. Footprint is 1350 x 250 x 160 mm, accommodating 108 DIN units and a 9 GU grid, which helps in accurate space planning and seamless integration into existing electrical rooms.
