2CPX034804R9999
Part Number: 2CPX034804R9999
Product Information
Extended Description

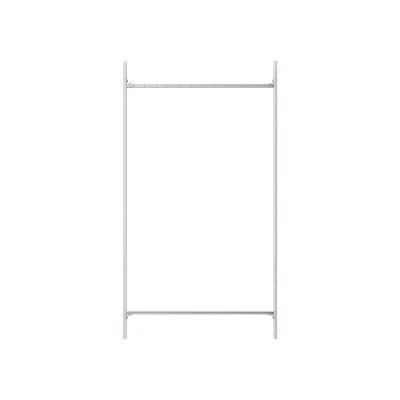

2CPX034804R9999 ABB: WR mounting frame, field width 4, overall height 8 (12 RE) 1800 mm, includes a vertical WR profile rail, with transverse profile rail, for all standing and row switching cabinets with depths of 225 mm and over. Is necessary for free installation on the WR mounting frame, for installation of the EDF WNF installation kit (cabinet depth 425 mm and over) and for arrangements with modules on the WE mounting frame.
Suitable For
4/82C|4/8R3|4/8R4|4/8R6|4/8R8|4/8RG3|4/8RG4|4/8RG6|4/8RG8|4/8W|4/8WSO|5/82C|5/8R3|5/8R4|5/8R6|5/8R8|5/8RG3|5/8RG4|5/8RG6|5/8RG8|5/8W|5/8WSO|6/8W|6/8WSO
Model Number
Mounting rail
Number of Panel Heights
12
Enclosure Type
Slide rails
Enclosure Type of Height
8
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1000 mm
Product Net Height
1800 mm
Product Net Depth / Length
1800 mm
Section Width
4
Product Net Weight
7.66 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.966 kg
E-Number (Norway)
2439095
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction WR-Rahmen
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002518 - Profile (enclosure/cabinet)
ETIM 9
EC002518 - Profile (enclosure/cabinet)
eClass
V11.0 : 27180907
Object Classification Code
U
