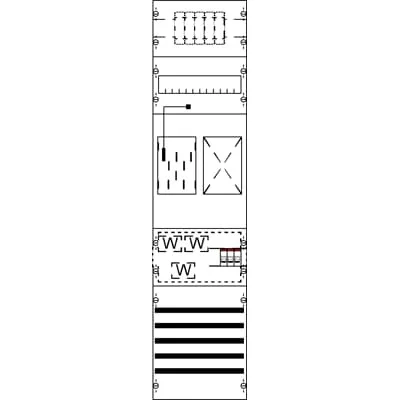

ABB 2CPX035011R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX035011R9999
Quick Summary
Measurement and metering transformer board from ABB provides compact metering in switchgear assemblies for industrial applications. This ready-to-connect module helps engineers overcome complex internal wiring and lengthy commissioning times. The enclosure carries essential protections and certifications, including IP2XC, CE conformity, and DIN EN 61439-1/2/3 compliance, ensuring safe operation across harsh environments. By aligning with RoHS and REACH requirements, the design supports sustainable procurement while delivering reliable, long-term performance for utilities, data centers, and manufacturing facilities.
Product Information
Extended Description
2CPX035011R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 75 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Main terminal 2, outgoing connection 50qmm, primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
75 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
9.118 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.482 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4600
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Pre-wired, 5-pole TN-S earthing with Cu busbars 12 x 5 mm and N+PE connections. Business Impact: Reduces field wiring time, lowers assembly errors, and accelerates commissioning. Application: Metering cabinets and low-voltage switchgear where space is constrained. Feature: 1050 mm height, 250 mm width, 160 mm depth with 84 DIN place units. Business Impact: Maximizes usable panel space while maintaining accessibility for maintenance and future expansion. Application: Industrial distribution panels and utility metering enclosures. Feature: IP2XC protection and 75 A rated current at 415 V nominal. Business Impact: Ensures safe operation in indirect metering configurations and supports standard LV networks, reducing risk of faults. Application: Commercial buildings, factories, and service provider installations. Feature: RAL 7035 light grey enclosure with closed cover and Cu busbars. Business Impact: Consistent aesthetics, durable finish, and easier cleaning/maintenance in plant environments. Application: Front-access meter panels and retrofit projects. Feature: Pre-wired for DSO requirements with DIN placement and pre-sealed compartments. Business Impact: Simplifies procurement, enhances quality control, and shortens site installation lead times. Application: Utility-scale deployments and turnkey panel builds.
Get a Quick Quote for a ABB 2CPX035011R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035011R9999?
Enquire Now
FAQs
Installation follows the meter panel integration workflow for LV switchgear. The unit is pre-wired for N+PE, TN-S earthing, and uses Cu busbars 12 x 5 mm with Stecktechnik connections. It fits 84 DIN place units in a 1050 x 250 x 160 mm footprint, simplifying mounting, wiring runs, and testing while ensuring compliance with DIN EN 61439-1/2/3.
Key performance specs include a maximum operating voltage of 415 V, a rated current of 75 A, 5 poles, and IP2XC protection. The board supports 50 qmm outgoing connections and 35 qmm primary wiring, with a Cu busbar system 12 x 5 mm, enabling reliable, safe metering within standard LV networks.
Yes. The device complies with DIN EN 61439-1/2/3 and CE declarations, is RoHS compliant, and has a REACH declaration. It is designed for direct use in meter cabinets and complies with EU environmental and safety directives, supporting regulatory procurement and safer commissioning.
The pre-wired design reduces field wiring labor, minimizes wiring errors, and shortens commissioning time. This translates to faster project delivery, lower on-site risk, and reduced maintenance downtime, delivering tangible ROI through improved reliability and accelerated facility readiness.
The board is designed for integration within ABB and compatible switchgear environments, featuring a mounting plate for a single-CT and a parting point configuration suitable for SH-switch with ABB S700. This facilitates cohesive system integration and simplifies procurement across ABB equipment families.
