ABB 2CPX035016R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX035016R9999
Quick Summary
ABB 2CPX035016R9999 measurement and metering transformer board is a ready-to-install solution for internal metering and protection within switchgear. Engineers often struggle with space constraints and the complexity of integrating metering cross modules into compact panels. This enclosure meets DIN EN 61439-2 and EN 61439-1 standards, carries CE conformity, and provides IP2XC protection for critical metering circuits. With 84 DIN unit capacity and a 5-pole busbar design, the module supports scalable, compliant installations while reducing lead times and field wiring. It also aligns with RoHS and REACH requirements to minimize regulatory risk and ensure sustainable procurement.
Product Information
Extended Description

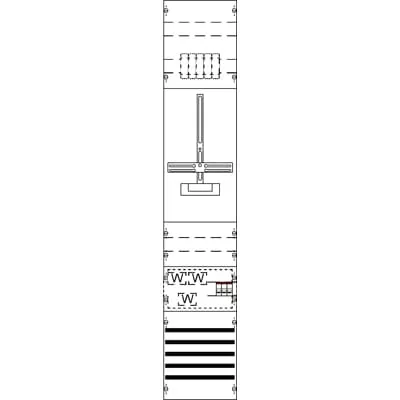

2CPX035016R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 75 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Main terminal 2, outgoing connection 50qmm, primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
75 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
9.208 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.576 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4291
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature and impact: Fully assembled transformer board includes a Metering cross and mounting plate for single-CT with a 5-pole copper busbar. Impact: reduces on-site wiring time and assembly errors, accelerating commissioning. Application: ideal for internal metering cabinets in switchgear. Feature and impact: IP2XC degree of protection with a closed cover enhances operator safety and safeguards metering circuits in damp or dusty environments. Impact: lowers safety risk during installation and service. Application: suitable for internal installations where incidental contact must be minimized. Feature and impact: DIN 84 unit capacity and a footprint of 1350 x 250 x 160 mm deliver a predictable, scalable footprint for future expansion. Impact: simplifies space planning and enables modular upgrades. Application: perfect for meter panels in space-constrained facilities. Feature and impact: RAL 7035 light-grey enclosure and durable Cu busbars ensure reliable heat dissipation and long-term performance. Impact: reduces thermal stress and maintains stable metering accuracy. Application: fits industrial environments demanding durable aesthetics and electrical reliability. Feature and impact: RoHS and REACH compliance, along with CE declaration and EN 61439-2 standard, minimize regulatory risk while supporting global deployment. Impact: enables cross-border procurement with reduced compliance overhead. Application: suitable for multinational projects and standardized meter panel programs. Feature and impact: N+PE 2 x 50 qmm and 50 qmm outgoing pathways with quick-seal connections simplify wiring topology and reduce assembly time. Impact: accelerates installation and minimizes human error. Application: integrates with downstream switchgear and metering paths, including ABB S700 interfaces. Feature and impact: 75 A rated current with 415 V maximum operational voltage aligns with typical medium-voltage metering schemes and provides scalable operation. Impact: supports robust energy measurement and protection functions. Application: ideal for internal meter cabinets in industrial facilities requiring reliable current paths.
Get a Quick Quote for a ABB 2CPX035016R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035016R9999?
Enquire Now
FAQs
The unit ships with a mounting plate for a single current transformer and a 5-pole Cu busbar system, plus N+PE connections up to 50 mm² and outgoing conductors up to 50 mm². This enables flexible top-entry or bottom-entry wiring within the enclosure's 1350 × 250 × 160 mm footprint, simplifying installation in meter panels and switchgear.
Key specs include a rated operational voltage of up to 415 V, a rated current of 75 A, and 5 poles. The enclosure carries IP2XC protection, is CE compliant, and conforms to EN 61439-2, ensuring safe operation and reliable metering within internal switchgear environments.
Mid-to-large switchgear installations requiring integrated metering and protection paths benefit most. The module fits internal meter cabinets in industrial facilities, energy distribution rooms, and substations, especially where ABB S700 interfaces or similar cross-metering configurations are used.
The product adheres to EN 61439-2, CE conformity, RoHS (Directive 2011/65/EU and 2015/863), REACH, and WEEE category 4. IP2XC protection adds an essential safety layer, while the EU declarations simplify regulatory compliance for global deployments.
Being a fully assembled module reduces field wiring time and installation labor, while quick-seal connections minimize downtime. Its durable construction, RoHS/REACH compliance, and modular DIN unit system contribute to lower maintenance costs and faster commissioning, delivering a favorable total cost of ownership in energy metering projects.
