ABB 2CPX035025R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX035025R9999
Quick Summary
ABB 2CPX035025R9999 is a measurement and metering transformer board designed for compact meter panels and electrical enclosures. Engineers often struggle with wiring complexity, limited space, and ensuring safety standards when integrating metering components in cabinets. It aligns with EN 61439-1/2/3 and delivers IP2XC protection, while CE conformity and RoHS declarations support regulatory compliance. The pre-wired design reduces field wiring errors and saves installation time, while copper busbars and a robust enclosure improve thermal performance and reliability. This solution also enhances consistency across meter panels and switchgear assemblies, helping procurement teams standardize components and maintenance teams simplify replacement strategies. In short, it delivers faster deployments and lower lifecycle costs.
Product Information
Extended Description

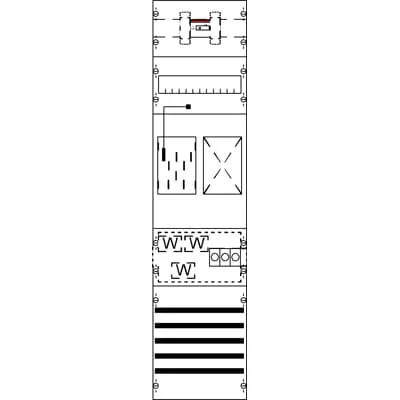

2CPX035025R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 75 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
75 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
9.233 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.602 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4603
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Fully assembled, pre-wired module with BKE-I, IP2XC protection, and a 5-pole switch rated at 125 A reduces on-site wiring errors and commissioning time, while the copper 12x5 mm busbars support reliable current paths. This translates to faster panel builds and lower field retrofit costs in meter cabinets and switchgear assemblies. With dimensions of 1050 x 250 x 160 mm and 84 DIN place units, the enclosure fits standard meter room layouts and DIN rail planning. The light grey RAL 7035 finish simplifies thermal management and visibility in busy switch rooms, while DIN compatibility minimizes rework during installation. Lower Connection Space design and TN-S earthing support flexible topologies; N+PE connections 50 qmm; parting points before and after CT enable safe cable threading and modular testing, aiding engineers in phased commissioning. RoHS and REACH declarations plus WEEE classification ensure regulatory readiness; DIN EN 61439-2/3 compliance provides credible certification, helping manufacturers meet audits and customer requirements. Quick-sealable connections and a sturdy plastic cover deliver straightforward field maintenance; pre-wired to DSO requirements reduces test steps and supports consistent quality across sites. Overall, the product supports cost reductions through standardized components, improved reliability, and easier maintenance in meter panels and distribution cabinets.
Get a Quick Quote for a ABB 2CPX035025R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035025R9999?
Enquire Now
FAQs
When integrating the ABB 2CPX035025R9999, evaluate enclosure fit (1050 x 250 x 160 mm), DIN place unit capacity (84), and the TN-S earthing topology. Ensure the pre-wired DSO wiring aligns with your panel’s existing harnesses, and confirm copper busbars 12 x 5 mm can accommodate the 5P, 75 A rating. Plan for space around the IP2XC enclosure to preserve protection integrity during service work.
Key ratings include a maximum operational voltage of 415 V and a rated current of 75 A, with a 5-pole configuration. These specs determine the board’s suitability for medium-power metering in compact cabinets, enabling reliable distribution and metering without overloading conductors. The IP2XC enclosure adds a layer of protection against accidental contact in indoor environments, supporting safe operation.
Yes, the board is designed for TN-S earthing, featuring a 5-pole arrangement and N+PE connections suitable for direct utility-type metering setups. The design includes a 12 x 5 mm Cu busbar framework and a dedicated parting point before/after the current transformer, which simplifies cable threading and testing during commissioning while maintaining solid electrical paths.
Compliance is anchored in DIN EN 61439-1/2/3 for switchgear and controlgear assemblies, plus CE conformity and RoHS declarations. The product also aligns with REACH disclosures and WEEE classification, supporting regulatory audits, environmental requirements, and safe, sustainable installation across industrial environments.
The pre-wired, pre-assembled design reduces field wiring time and commissioning steps, lowering labor costs and testing effort. Standardized DIN units (84) and a durable IP2XC enclosure improve reliability, reduce field failures, and streamline spare-part inventories. Over the lifecycle, customers benefit from faster deployments, simpler maintenance, and predictable replacement planning in meter panels and distribution cabinets.
