ABB 2CPX035026R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035026R9999
Quick Summary
Metering transformer board provides integrated measurement and metering for energy distribution panels in industrial control rooms. Engineers often struggle with space constraints, wiring complexity, and ensuring compliance across evolving standards. This ABB solution is designed to DIN EN 61439-1/2/3 compliant, CE marked, and IP2XC protected for safe operation in demanding environments. Pre-wired to DSO requirements and equipped with a compact 216 DIN-unit footprint, it offers plug-and-play installation, reducing commissioning time. With a robust 415 V AC operation and 220 A rating, it supports scalable metering while maintaining a clean, maintainable cabinet layout that aligns with modern energy-management strategies.
Product Information
Extended Description
2CPX035026R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 200 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole and 2 fuse switch disconnectors NH00/160 A (M8), primary wiring Cu-Busbar 30 x 5 mm, Incomer and Outgoing connected to terminal screws, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
19.988 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
20.788 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

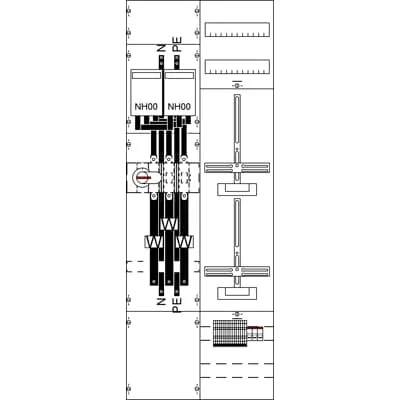

Circuit and distribution diagram KA4268
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature 1 aligns with a pre-wired, DSO-ready architecture; this reduces on-site wiring errors and shortens commissioning cycles, delivering tangible time-to-value for projects deploying meter panels within switchgear assemblies. Business impact includes lower labor costs and faster deployment in energy distribution networks, while the application is ideal for internal meter cabinets requiring quick integration and reliable cross-connection. Long-tail keywords: DSO-ready meter panels, pre-wired meter boards, internal metering cabinet. Feature 2 emphasizes EN 61439 series compliance and IP2XC protection; this ensures regulatory alignment and safe operation in industrial environments, translating to reduced risk and easier audit readiness for electrical installations. Application: compliant meter boards inside process plants and utility-grade switchgear. Feature 3 highlights rated voltage and current (Maximum 415 V, 220 A) with a 5P arrangement; the business impact is capability to handle standard distribution feeders with predictable thermal performance, supporting scalable metering solutions. Application: medium-voltage distribution panels. Feature 4 covers modular design and space efficiency (216 DIN units, 500 mm width, two panel widths); impact includes flexible layouts and simplified future upgrades, enabling quick reconfiguration as system needs evolve. Application: retrofit projects and modular installations in evolving plants. Feature 5 notes TN-S earthing and busbar/cable wiring options (N+PE, Cu-Busbar 30x5 mm) and a closed cover for safety; this improves maintenance access and reduces field modifications, benefiting operators seeking reliable, long-term asset performance. Application: safe, maintenance-friendly meter panels in high-demand environments.
Get a Quick Quote for a ABB 2CPX035026R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035026R9999?
Enquire Now
FAQs
Installation steps involve verifying EN 61439 compliance, mounting the enclosure within the allocated space, connecting N+PE through M8 terminals, and integrating the Cu-Busbar 30x5 mm where required. The unit ships pre-wired to DSO specifications, reducing field wiring. Ensure TN-S earthing is established and that the three low voltage paths are correctly routed to prevent crosstalk and overheating. This approach minimizes commissioning risk and accelerates startup timelines.
Key ratings include a maximum operational voltage of 415 V and a rated current of 220 A, with a 5P configuration and 216 DIN units. Protection features include IP2XC enclosure protection and compliance with DIN EN 61439-2/3. The design supports safe operation in industrial environments and provides guidance on backup protection for short-circuit events exceeding 25 kA per DSO requirements.
Yes. The board is designed for internal use within distribution switchgear, featuring a closed cover, TN-S earthing, and a compact footprint (RAL 7035 light grey). It supports meter-panels in half indirect metering configurations and is pre-wired for rapid, compliant installation in indoor environments such as control rooms and plant rooms.
The product is designed to meet DIN EN 61439-2 and DIN EN 61439-3 standards, with EN 61439-1 as the overarching framework. It carries CE declarations and RoHS/REACH compliance, reflecting a commitment to regulatory conformity and environmental responsibility in industrial electrical systems.
Pre-wired configurations reduce field wiring errors and commissioning time, lowering labor costs and minimizing on-site calibration. The integrated design with N+PE connections, busbar routing, and a robust enclosure decreases startup risk, improves reliability, and provides easier future upgrades, offering a favorable return on investment through faster project delivery and reduced maintenance complexity.
