ABB 2CPX035027R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035027R9999
Quick Summary
ABB 2CPX035027R9999 Metering Transformer Board is a measurement and metering panel designed for internal switchgear metering and energy management. It addresses installation delays and safety concerns by delivering a pre-wired, enclosure-ready solution that reduces field wiring. The design aligns with EN 61439-2/3 standards and CE marking, with IP2XC protection for applications requiring rugged indoor operation. For procurement teams, the unit's compact 500 mm width and 1350 mm height fit tight spaces and streamline configurability. Engineers value the 216 DIN unit footprint, pre-wired Metering Cross options, and the option to integrate with a dedicated incomer housing for scalable metering. This translates into faster commissioning, predictable lifecycle costs, and clearer compliance documentation for utility, data center, and industrial automation projects.
Product Information
Extended Description
2CPX035027R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 174 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole and 2 fuse switch disconnectors NH00/160 A (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible: Cu busbar connection to baying board or additional incomer cabinet on the side. Outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Incomer housing EK230 may be required, busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
24.555 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
25.537 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

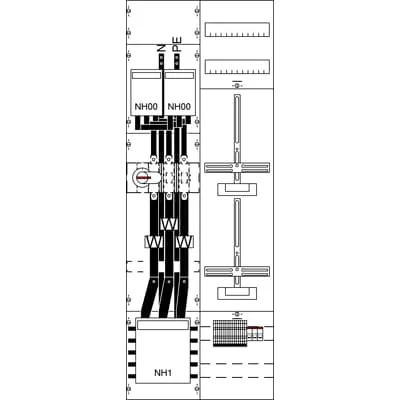

Circuit and distribution diagram KA4269
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Fully assembled measurement and metering transformer board with a Metering Cross is delivered as a plug-and-play module, eliminating the need for multiple field assemblies. Business Impact: By pre-integrating metering circuitry, you reduce construction-time and wiring errors, delivering a documented configuration that speeds handover to operations. Application: Designed for internal metering within switchgear and energy-management panels, it supports reliable, traceable current paths and simplifies future maintenance. This foundation is valuable in multi-zone installations where space efficiency and modularity affect project schedules. Feature: IP2XC protection combined with EN 61439-2/3 compliance and CE marking. Business Impact: Provides robust protection for live busbars and meters, reducing risk of insulation failures and downtime, while ensuring regulatory conformity. Application: Suitable for indoor distribution cabinets with TN-S earthing and Cu busbar networks, where safe operation and routine inspection are critical. Feature: Pre-wired to DSOs requirements and 2-story, 216-DIN installation footprint. Business Impact: Accelerates commissioning across utility and industrial metering projects by offering a predictable, repeatable configuration and easy scalability. Application: Ideal for meter panels in substations and control rooms where half indirect metering is used and future expansion is anticipated. Feature: Cu busbars 12x5 mm, 5-pole arrangement, with accessible N+PE and flexible incoming/outgoing paths. Business Impact: Improves electrical performance with low impedance distribution and simplifies fault isolation during testing. Application: Outgoing paths and protection arrangements can be tailored with fuse switch disconnectors NH1/250A, NH00/160A and related components. Feature: Compact dimensions (500 mm wide, 1350 mm high, 160 mm deep) and 216 DIN units with a 5-pole, closed enclosure. Business Impact: Space-efficient design supports modular deployment in constrained environments and reduces enclosure footprint. Application: Suitable for new builds and retrofit projects in manufacturing, data centers, and energy infrastructure. Feature: RoHS, REACH, CMRT, SCIP compliance and WEEE categorization support sustainable lifecycle management. Business Impact: Simplifies regulatory reporting and supplier declarations, easing end-of-life planning for European markets. Application: Deployed in industries with strict material compliance requirements and sustainability programs.
