ABB 2CPX035028R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX035028R9999
Quick Summary
ABB 2CPX035028R9999 measurement and metering transformer board is designed for compact, integrated metering in distribution panels. It addresses the common pain of lengthy on-site wiring and assembly by delivering a pre-wired, fully assembled module. The unit is built to EN 61439-1/2/3 standards, rated up to 415 V and 220 A with IP2XC protection, and it carries CE conformity and RoHS/REACH declarations for safe, compliant operation. Its TN-S earthing, copper busbars, and a 5-pole configuration support reliable switching and measurement paths. With 216 DIN placement and a 24-module width, it fits standard cabinet footprints while offering easy expansion via compatible accessories. This accelerates projects, reduces field labor, and mitigates regulatory risk for meter panel installs.
Product Information
Extended Description

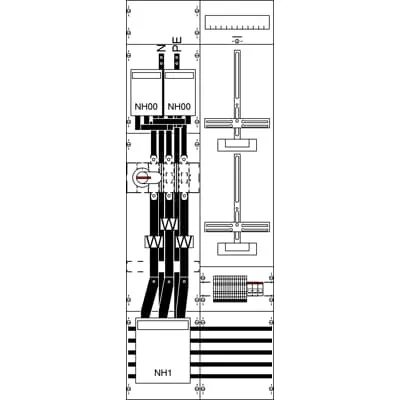

2CPX035028R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 169 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole and 2 fuse switch disconnectors NH00/160 A (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
25.902 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
26.938 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4270
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Pre-wired and fully assembled module reduces on-site wiring time and field errors; Business Impact: Faster project delivery and lower labor costs; Application: Metering cross in distribution panels, indoor switchgear. Feature: IP2XC enclosure protection provides safe operation in controlled environments; Business Impact: Lower risk of accidental contact and ingress-related issues; Application: Indoor meter panels and control rooms. Feature: EN 61439-1/2/3 compliance ensures regulatory approval across EU projects; Business Impact: Streamlined procurement and reduced validation effort; Application: Meter panels and cross-connection assemblies. Feature: Copper busbars 12 x 5 mm with 5-pole design and TN-S earthing improves current paths and fault clearance; Business Impact: Enhanced reliability and safety; Application: High-current metering and cross-connects. Feature: RoHS/REACH and WEEE compliance plus CE declaration simplifies environmental stewardship; Business Impact: Lower lifecycle risk and easier end-of-life handling; Application: European installations and regulated markets. Feature: Dimensions and DIN placement (1350 × 500 × 160 mm; 216 DIN units) provide standard cabinet compatibility; Business Impact: Reduced integration costs and predictable fit; Application: Retrofit and new builds in standard enclosures.
Get a Quick Quote for a ABB 2CPX035028R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035028R9999?
Enquire Now
FAQs
The unit is a fully assembled measurement and metering transformer board intended for internal mounting in distribution panels. It arrives pre-wired to DSO configurations and features a 5-pole design, TN-S earthing, and copper busbars. It drops into standard meter cabinets with 216 DIN placements, enabling plug-and-play integration with existing feeders while maintaining clear, safe wiring paths.
This ABB board complies with EN 61439-1/2/3 for switchgear assemblies, and carries IP2XC protection for indoor use. It also holds CE conformity, RoHS and REACH declarations, and a WEEE categorization. These certifications streamline regulatory approvals, ensure safety during operation and maintenance, and support sustainable procurement across European facilities.
Yes. The measurement and metering transformer board is pre-wired according to DSO requirements and is delivered as a ready-to-install module. Pre-wiring reduces field labor, minimizes wiring errors, and helps ensure consistent cross connections between meter cabinets and panel buses, accelerating project timelines and improving reliability.
Installation relies on copper busbars, 12 x 5 mm, within a 5-pole layout and TN-S earthing. Ensure compatibility with your cabinet footprint—1350 mm height, 500 mm width, 160 mm depth, and 216 DIN units—and verify available space for the IP2XC enclosure. The module’s closed cover and quick-seal connections further simplify mounting and maintenance.
The combination of pre-wired configuration, standard-compliant design, and reduced on-site wiring translates to faster commissioning, lower labor costs, and greater consistency across projects. Compliance with RoHS/REACH and CE declarations minimizes regulatory risk, while reliable Cu busbars and protective features enhance long-term uptime and simplify future meter panel upgrades.
