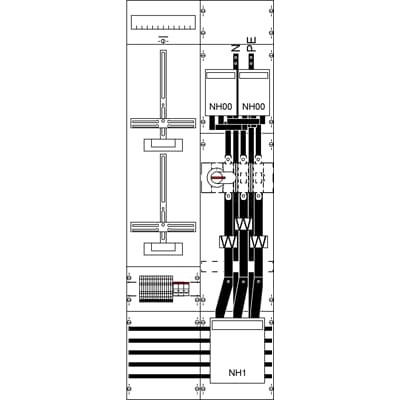

ABB 2CPX035029R9999 Measurement and metering transformer board - IP2XC

Feature: Fully assembled module with Metering cross and pre-wired configuration. Benefit: Reduces on-site wiring effort and commissioning time, lowering project risk and labor costs. Application: Ideal for internal metering in switchgear and substation panels where fast deployment is needed. Feature: IP2XC enclosure protection and closed cover with DIN rail mounting and EN 61439-1/2/3 compliance. Benefit: Enhances operator safety and reliability while meeting European standards, reducing integration risk in harsh environments. Application: Utility and industrial environments requiring robust protection and standard conformity. Feature: Cu busbar system (12 x 5 mm) and 5-pole lower connection space. Benefit: Provides secure, low-resistance connections with easy accessibility, enabling reliable feeder distribution and simplified fault isolation. Application: Metering and protection circuits with compact busbar layouts. Feature: 216 DIN place units, 500 mm width, 1350 mm height, 160 mm depth. Benefit: Space-efficient, scalable design that accommodates multiple meters and control devices without compromising accessibility. Application: Large power distribution cabinets with room for future expansion. Feature: RoHS, REACH compliance and CE declaration with DIN EN 61439 standards. Benefit: ensures regulatory compliance, sustainable materials, and reduced risk of regulatory delays. Application: OEM and system integrator projects targeting stringent environmental and safety requirements. Note: In case of short-circuit currents greater than 25 kA, backup protection is required for the voltage path; the specific short-circuit value should be obtained from the DSO. This product also supports easy maintenance thanks to accessible busbar connections and pre-wired configuration.
