ABB 2CPX035037R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035037R9999
Quick Summary
Measurement and metering transformer board enables compact meter panel assemblies for power distribution and monitoring in industrial facilities. End users often face integration complexity and safety concerns when expanding cross-ready meter racks. The enclosure meets DIN EN 61439-1/2/3 and EN 61439-2/3 with IP2XC protection, CE conformity, and a 415 V AC rating, supporting safe operation across TN-S and TT-earthing. Pre-wired configurations, a durable RAL 7035 housing, 84 DIN-places, and Cu busbars streamline installation, reduce commissioning time, and improve long-term system reliability and serviceability.
Product Information
Extended Description

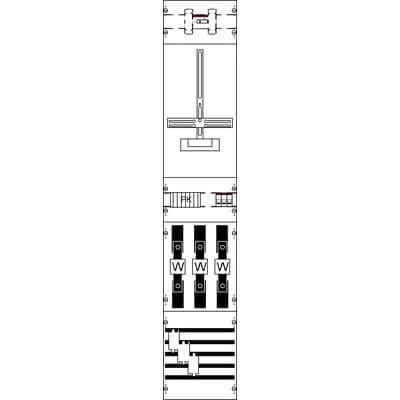

2CPX035037R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 63 A, Rated current of the assembly of switchgear and controlgear InA 63 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches Z10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad with CT rail, nickel plated, 170 x 30 x 5 mm, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE Connection N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
63 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f3a3ec79-0055-461a-88a6-53a88e0ebe48 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
14.044 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.606 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4264
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
IP2XC protection and robust enclosure shield sensitive metering components in indoor installations, reducing downtime and service calls. The 5-pole design and 63 A rating supports safe switching with a compact footprint, lowering hardware costs and space requirements. Pre-wired configuration aligned to DSO requirements minimizes wiring errors and accelerates commissioning, speeding project timelines. Cu busbars 12x5 mm and N+PE 50 qmm connections ensure low impedance and safe fault clearance for scalable feed distribution. RAL 7035 enclosure with closed cover and 84 DIN place units offers durable, corrosion-resistant housing and straightforward maintenance. Compliance with EN 61439 and CE declarations reduces regulatory risk and supports faster approvals in factory automation and energy-management projects.
Get a Quick Quote for a ABB 2CPX035037R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035037R9999?
Enquire Now
FAQs
Begin with the pre-wired configuration designed to meet DSO requirements. Connect N+PE with 50 qmm conductors, route feeders via the Cu busbars (12x5 mm), and use the 5-pole switch rated for 125 A as the main control point. Ensure the enclosure remains IP2XC protected and that wiring adheres to 415 V AC system requirements and TN-S or TT earthing configurations.
The board supports a maximum rated voltage of 415 V AC and a rated current of 63 A, configured for 5 poles and 1 meter cabinet. It provides 84 DIN place units, uses Cu busbars 12x5 mm, and includes N+PE connections for reliable power distribution in meter panels, all within EN 61439-1/2/3 compliance and IP2XC protection.
Yes. The design accommodates both TT and TN-S earthing configurations, facilitated by the N+PE connections and the IP2XC-rated enclosure. This versatility makes it suitable for a wide range of industrial installations and utility-scoped metering applications.
The product carries CE conformity and adheres to DIN EN 61439-1/2/3 standards. It is rated IP2XC, with RoHS and REACH declarations, and WEEE categorization for large equipment, supporting regulatory compliance in European industrial facilities and energy-management projects.
The pre-wired meter panel reduces field wiring time, minimizes wiring errors, and speeds commissioning, delivering lower labor costs and faster project turnover. Additionally, EN 61439 compliance and CE declarations streamline approvals, supporting safer, scalable energy-management and factory-automation initiatives.
