ABB 2CPX035038R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035038R9999
Quick Summary
ABB 2CPX035038R9999 is a measurement and metering transformer board for industrial meter panels. It enables compact, integrated metering within interior electrical infrastructure, reducing install time and wiring errors. Engineers often struggle with matching pre-wired components to limited spaces while maintaining safety margins and regulatory compliance. This unit carries CE declarations and complies with DIN EN 61439-1/2/3, plus an IP2XC protection rating, ensuring safe operation in both TN-S and TT systems. The combination of a pre-wired design with robust enclosure and modular busbars supports fast deployment, easier maintenance, and predictable performance, helping procurement teams achieve consistent project timelines and long-term reliability in industrial electrical infrastructure projects.
Product Information
Extended Description

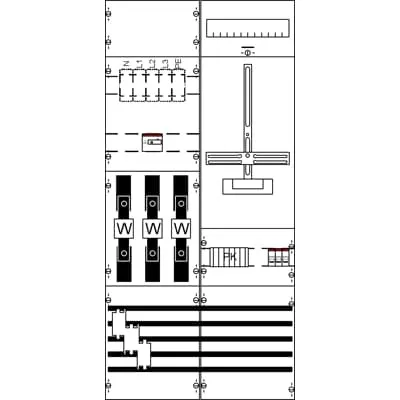

2CPX035038R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches Z10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad with CT rail, nickel plated, 170 x 30 x 5 mm, parting point after the current transformer Switch 125 A / 3-pole and main terminal with 2 outgoing 50qmm, primary wiring 50 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a380d19d-05e3-49e1-b073-53921897e29d Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
16.649 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.315 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4265
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Fully assembled measurement and metering transformer board with Metering cross provides rapid installation and minimizes field wiring errors, accelerating panel assembly and commissioning in industrial meter cabinets. This translates to reduced on-site labor costs and shorter project lead times, especially in new installations or retrofits where space is at a premium. The enclosure adheres to IP2XC protection and DIN EN 61439-1/2/3 standards, delivering enhanced safety and regulatory compliance across industrial control panels. With copper busbars (12 x 5 mm) and a 5-pole, 100 A rated configuration, the system supports reliable, high-current distribution while maintaining compact dimensions. The unit’s dimensions (1050 x 500 x 160 mm) and 168 DIN place units enable scalable layouts in 1-meter cabinet and 1-meter panel configurations, suited to evolving metering needs. RoHS, REACH, and WEEE compliance reduce lifecycle risk and simplify cross-border procurement, while pre-wired connections (N+PE 50 qmm) and TT/TN-S compatibility streamline assembly and maintenance. Pre-wired according to DSO requirements minimizes installation risk and enables faster handover, contributing to lower total cost of ownership in large-scale electrical infrastructure programs.
Get a Quick Quote for a ABB 2CPX035038R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035038R9999?
Enquire Now
FAQs
The 2CPX035038R9999 is designed for internal use in metering panels that support TN-S and TT earth schemes. It features a robust N+PE connection framework and copper busbars to ensure safe, reliable distribution. Its IP2XC enclosure and DIN EN 61439-1/2/3 compliance further support correct installation across both earthing configurations, reducing integration risks in new builds or retrofits.
Key specs include a rated operational voltage of up to 415 V, a rated current of 100 A, a 5-pole configuration, and 168 DIN place units within a 1050 x 500 x 160 mm enclosure. It uses copper busbars (12 x 5 mm), supports N+PE 50 qmm, and includes a 125 A fuse base element. The unit is IP2XC protected and designed for 1 meter cabinet and 1 meter panel configurations.
Yes. It features a CE Declaration of Conformity and complies with standards from the DIN EN 61439 family (61439-1/2/3) for meter panels and switchgear. RoHS and REACH declarations are provided, and WEEE categorization is documented. This ensures regulatory compliance for European and other regions, simplifying procurement and reducing compliance risk for critical electrical infrastructure projects.
The pre-wired configuration, aligned with DSO requirements, minimizes on-site wiring tasks and reduces the potential for miswiring. The module’s integrated meter cross and 1-story, 5P layout enable quick assembly inside existing enclosures, improving reliability and accelerating commissioning. This is especially beneficial for upgrades or expansions in space-constrained industrial panels where time-to-operate is critical.
It is intended for internal measurement and metering within industrial electrical infrastructure, particularly in meter cabinets and distribution panels. With a 100 A rated current, IP2XC protection, and DIN rail-ready DIN place units, it suits utility metering segments, plant electrical infrastructure upgrades, and scalable distribution in industrial facilities while supporting both TN-S and TT systems.
