ABB 2CPX035039R9999 Metering transformer board - IP2XC
Part Number: 2CPX035039R9999
Quick Summary
ABB 2CPX035039R9999 Measurement and metering transformer board is a ready-to-install module for internal metering in distribution panels. Engineers often battle field-wiring complexity and inconsistent pre-wiring across sites; this module ships pre-wired and pre-approved, reducing on-site risk and installation time. It aligns with EN 61439-1/2/3 and VDE 0603-2-2, carries CE conformity, and is IP2XC protected, supporting safe, compliant meter cabinets. Use it in meter panels, switchgear, and distribution boards to streamline procurement and improve reliability through standardized components. The unit's dimensions and DIN rail compatibility support compact layouts in multi-panel deployments. With a height of 1050 mm and width of 500 mm, it fits standard enclosure footprints while maintaining clear labeling and easy wiring paths.
Product Information
Extended Description
2CPX035039R9999 ABB: Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 80 A, Rated current of the assembly of switchgear and controlgear InA 80 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 4 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer for SH-swtch with ABB S700, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 95qmm, Note: E DIN VDE 0603-2-2, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
80 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
15.863 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.498 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

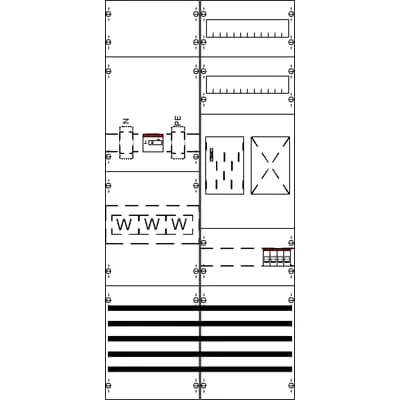

Circuit and distribution diagram KA4620
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Pre-wired, ready-to-connect assembly → Business Impact: Significantly reduces on-site wiring time and human error, accelerating project timelines in meter panel deployments. Application: Ideal for internal metering in distribution boards where quick commissioning is critical. Feature: EN 61439-1/2/3 and VDE 0603-2-2 compliance → Business Impact: Ensures regulatory conformity and consistent performance across installations, lowering compliance risk. Application: Suitable for DIN rail meter cabinets in industrial facilities and utility switchgear. Feature: IP2XC enclosure protection → Business Impact: Enhanced protection in moderate exposure environments, improving reliability and worker safety. Application: Use in control rooms and field installations where protection against solid/liquid ingress is required. Feature: Cu busbars 12 x 5 mm and 5-pole, TN-S earth support → Business Impact: Robust current distribution with clear, stable grounding, reducing parasitic losses and heat. Application: Supports precise metering circuits and high-current feeds in 125 A switchgear configurations. Feature: N+PE 95 qmm and 70 qmm connections with Stecktechnik → Business Impact: Clean, secure terminations with easy maintenance, lowering contact resistance over time. Application: Installation in dense distribution panels requiring reliable low- and high-voltage segregation. Feature: Aesthetics and environmental compliance (RAL 7035, RoHS/REACH) → Business Impact: Consistent appearance and lower regulatory risk due to material compliance. Application: Suitable for modern meter panels in commercial and industrial environments.
Get a Quick Quote for a ABB 2CPX035039R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035039R9999?
Enquire Now
FAQs
The ABB 2CPX035039R9999 is a fully assembled transformer board designed for internal use in meter cabinets. It comes pre-wired to requirements, supports 5 poles and a TN-S earth system, and uses Cu busbars for reliable current distribution. This facilitates straightforward integration with existing panel architectures and reduces on-site wiring complexity during retrofit or new-build projects.
Key specs include a maximum rated operational voltage of 415 V, rated current of 80 A, and a 5-pole configuration. The unit supports one meter cabinet and one meter panel, with 168 DIN place units and a 12 x 5 mm Cu busbar system. Protection is IP2XC, aligning with EN 61439-1/2/3 standards and CE requirements.
Yes, the enclosure is designed for TN-S earthing. It provides a 5-pole, N+PE wiring scheme with N+PE connections rated up to 95 qmm and a separate 35 qmm primary wiring path. The Cu busbars and Stecktechnik connectors support secure, scalable connections suitable for typical metering and distribution configurations.
The unit complies with EN 61439-1/2/3 and DIN VDE 0603-2-2, is CE marked, and features IP2XC protection. It also carries RoHS and REACH declarations, and a SCIP entry, ensuring environmental and regulatory alignment for European deployments in meter panels and distribution boards.
Pre-wired construction reduces field wiring errors and commissioning time, lowering labor costs and risk of miswiring. The sealed, closed cover design simplifies maintenance, while standardized dimensions (1050 x 500 x 160 mm) and modular components enable quicker upgrades or expansions in growing facilities, delivering measurable ROI through accelerated project timelines and reduced downtime.
