ABB 2CPX035064R9999 Meter Panel - 1350x250x160 IP2XC
Part Number: 2CPX035064R9999
Quick Summary
ABB 2CPX035064R9999 meter panel provides organized metering enclosure for electrical distribution. Engineers often grapple with complex wiring, safety gaps, and regulatory risk when adding metering into cabinets; this pre-wired design reduces field wiring and minimizes install time. It carries CE conformity with EU declarations, RoHS compliance, and REACH declarations, helping you meet EU requirements and sustainability targets. With IP2XC protection, 1350 mm height, 250 mm width, and DIN-rail access, this enclosure fits compact spaces while maintaining reliable metering performance. Designed to integrate within ABB’s ecosystem, it supports easy installation, maintenance workflows, and scalable energy-management applications.
Product Information
Extended Description

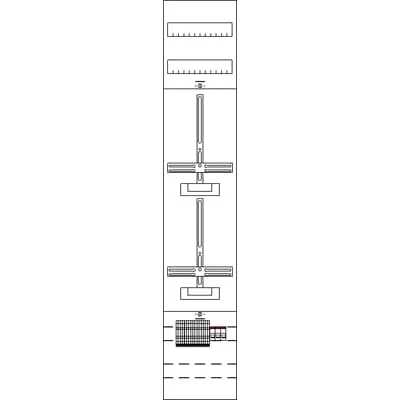

2CPX035064R9999 ABB: Meter panel, empty board, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, Note: for installation in A-cabinet, for installation in other cabinets extra parts to be required, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter panel
Enclosure Type of Height
5
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.202 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.45 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4107
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Pre-wired according to DSO requirements → Business Impact: reduces field wiring, speeds commissioning, and improves wiring traceability. Application: ideal for half indirect metering configurations in commercial or industrial cabinets. Feature: IP2XC enclosure protection → Business Impact: delivers indoor-suitable resilience against dust and splash while maintaining safe operation. Application: suitable for internal meter panels in service cabinets. Feature: DIN rail lower connection space → Business Impact: simplifies component mounting and cable management, lowering installation time and fault risk. Application: enables quick integration with existing DIN-rail architectures in control rooms. Feature: 108 DIN place units and 1350x250x160 dimensions → Business Impact: maximizes space efficiency and accommodates multiple metering modules without redesign. Application: optimal for compact energy-management enclosures in plants. Feature: Pre-wired to EN 61439-1 and meets EU RoHS/REACH requirements → Business Impact: ensures compliance, reduces post-install repairs, and supports sustainable operations. Application: essential for regulated industrial facilities and new-build projects.
Get a Quick Quote for a ABB 2CPX035064R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035064R9999?
Enquire Now
FAQs
Begin by verifying cabinet space and DIN rail availability, then follow the pre-wired layout to mount the meter panel and meters. Ensure the enclosure is oriented for optimal cable routing, connect the lower DIN rails, and secure the cross-mounting hardware. This approach minimizes on-site wiring and reduces commissioning time while preserving a clean, organized interior.
Key specs include rated operational voltage up to 415 V, rated current 0 A, IP2XC protection, dimensions 1350 x 250 x 160 mm, 108 DIN place units, and space for 1 meter cabinet and 1 meter panel. It is pre-wired to DSO requirements and supports DIN rail lower connection space for easy integration with control components.
Yes. The meter panel is designed for half indirect metering configurations, featuring a metering cross, pre-wired pathways, and a suitable internal layout to accommodate metering components while maintaining safe separation of low and high voltage paths.
The panel ships with EU Declaration of Conformity and CE compliance, RoHS and REACH declarations, and related WEEE categorization. These certifications support regulatory compliance for European installations and sustainability reporting in energy-management projects.
The pre-wired design reduces field wiring time, lowers commissioning labor costs, and minimizes wiring faults, improving uptime. The robust IP2XC enclosure and RoHS/REACH compliance support safer operations and longer service intervals, delivering measurable total cost of ownership savings in industrial facilities.
