ABB 2CPX035073R9999 Measurement and Metering Board - IP2XC
Part Number: 2CPX035073R9999
Quick Summary
Measurement and metering transformer board from ABB provides a compact, pre-wired solution for internal metering in switchgear assemblies. Engineers often struggle with complex wiring, space constraints, and compliance overhead when integrating metering components. This ABB panel meets DIN EN 61439-1/2/3 and EN 61439-3, carries CE marking, and offers IP2XC protection for indoor installations. With pre-wired pathways and a robust 5-pole design, it reduces installation time and lifecycle costs, while the light-grey RAL 7035 enclosure aligns with industrial aesthetics and safety standards. RoHS and REACH declarations further support sustainable, compliant deployments in modern power distribution.
Product Information
Extended Description

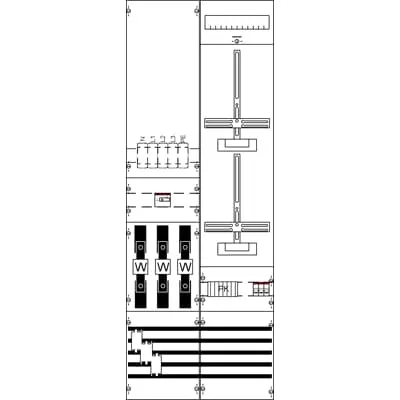

2CPX035073R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, Number of reserve spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches Z10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad with CT rail, nickel plated, 170 x 30 x 5 mm, parting point after the current transformer Switch 125 A / 3-pole and main terminal with 2 outgoing 50qmm, primary wiring 50 qmm, N+PE 2 Connections N+PE 50qmm, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 2, Space units 192, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
192
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
df1a412b-e84b-403a-8645-ff4b568e1967 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
18.528 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
19.269 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4265H5
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Pre-wired module and metering cross with DS0-ready wiring paths. Business Impact: Accelerates installation, reduces field wiring errors, and improves system reliability during commissioning. Application: Ideal for indoor meter cabinets in commercial and industrial distribution boards. Feature: IP2XC enclosure protection. Business Impact: Enhanced protection against solid and liquid ingress in non-hazardous indoor environments, lowering maintenance downtime. Application: Suitable for control rooms and switchgear housings where cleanliness and protection matter. Feature: 5-pole, 2-story enclosure with Cu busbars 12 x 5 mm. Business Impact: Optimized current handling and flexible wiring options, enabling scalable metering layouts. Application: Cross-metering configurations in utility and industrial plants. Feature: Pre-wired per DSO requirements and N+PE connections. Business Impact: Reduces on-site configuration time and ensures correct earthing practices, improving safety. Application: Deployments in energy metering racks and distribution panels. Feature: DIN 61439 compliance, CE marking, RoHS/REACH declarations. Business Impact: Regulatory assurance, risk mitigation, and long-term cost control through standardised, traceable components. Application: Projects with strict procurement and environmental requirements in European markets. Feature: Visual and mechanical compatibility—RAL 7035 light grey, closed cover, quick-sealable connections. Business Impact: Uniform aesthetics, easier maintenance, and faster serviceability. Application: Modern factory and utility installations where appearance and uptime matter.
Get a Quick Quote for a ABB 2CPX035073R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035073R9999?
Enquire Now
FAQs
The ABB 2CPX035073R9999 is designed for plug- and pre-wired integration with standard meter cabinets. It uses Cu busbars (12 x 5 mm) and supports N+PE connections, reducing field-wiring steps. Ensure alignment with DIN EN 61439-1/2/3, verify DS0 pre-wiring requirements, and confirm space for the 5P, 2-story configuration within the 1350 x 500 x 160 mm footprint.
Key ratings include a maximum operational voltage of 415 V AC and a rated current of 100 A per the technical data. The enclosure provides IP2XC protection, 5 poles, and space for 1 meter cabinet and 1 meter panel, with pre-wired low-voltage paths designed for safe, reliable operation in indoor environments.
Yes. Its indoor IP2XC-rated enclosure, 5-pole configuration, and pre-wired metering cross make it ideal for internal metering in industrial distribution boards and utility-style switchgear. The unit’s dimensions, DIN unit count (192), and RAL 7035 finish are tailored for clean installation, easy maintenance, and scalable metering layouts.
The panel complies with DIN EN 61439-1/2/3, is CE marked, RoHS and REACH compliant, and aligns with WEEE requirements for large equipment. It also references SCIP for material reporting, ensuring regulatory traceability for European projects and safer procurement decisions.
Pre-wired configurations and a closed cover design reduce commissioning and maintenance time, cutting downtime during inspections. The durable RAL 7035 enclosure and RoHS/REACH compliance limit replacement costs, while the modular 5P arrangement simplifies future upgrades or expansions, delivering lower total cost of ownership over the system lifecycle.
