ABB 2CPX035076R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035076R9999
Quick Summary
ABB 2CPX035076R9999 measurement and metering transformer board enables integrated metering in compact switchgear. Engineers often struggle with wiring complexity, space constraints, and protecting metering paths across installations. It complies with EN 61439-1/2, provides IP2XC protection, and carries CE conformity. Pre-wired to DSO requirements and featuring Cu busbars and a modular depth, this panel speeds installation, reduces field wiring errors, and supports scalable metering architectures for utility or industrial sites. For procurement and maintenance, the solution simplifies BOMs, improves lifecycle support, and ensures predictable performance in demanding environments.
Product Information
Extended Description

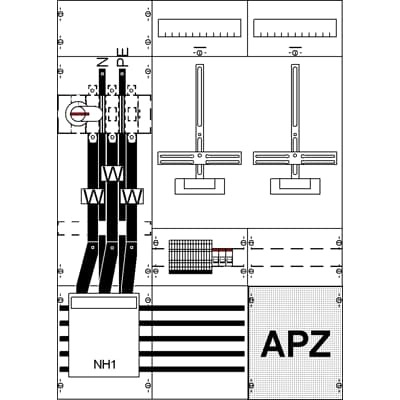

2CPX035076R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 750 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
252
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
25.125 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
26.13 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4257Z
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Pre-wired to DSO requirements, the measurement and metering transformer board minimizes on-site wiring and accelerates commissioning, delivering measurable time savings and fewer human errors. By providing a ready-made meter cross and integrated connections, it reduces the risk of miswiring during panel assembly. This translates into faster project realization, lower labor costs, and more predictable commissioning schedules for utility-scale or industrial deployments. IP2XC enclosure and closed cover design protect sensitive metering components in confined spaces and demanding environments. The robust construction supports safe operation and minimizes maintenance interruptions caused by dust or moisture ingress. Operators benefit from enhanced safety margins and longer service intervals in harsh industrial settings. EN 61439-1/2 compliance ensures standardization and regulatory alignment across switchgear assemblies. A CE-marked product simplifies customer approvals and document readiness for audits and asset management. The combination of standards support reduces project risk when integrating with ABB and third-party panels. High-current path built with Cu busbars 12 x 5 mm and a 5-pole configuration supports accurate metering and reliable operation up to 200 A nominal, with 222 A InA for the assembly. The design maintains clean current paths, lowers contact resistance, and improves thermal behavior under peak loads. This engineering detail helps preserve signal integrity and protect sensitive metering equipment. Dimensions 1050 x 750 x 160 mm and a net weight of 25.125 kg deliver predictable fit within a 3-width section layout and 252 DIN places. The module is designed with pre-wired connections, finished in RAL 7035 light grey, to simplify installation and reduce field termination time. Its TN-S earthing, closed cover, and 5-pole configuration align with common distribution board practices. Pre-wired to DSO requirements and backed by accessory options, the board supports quick scoping of meter spaces and transformer meter integration. It also clarifies short-circuit recommendations, noting a requirement for backup protection when the current path experiences faults beyond 25 kA. This reduces design ambiguity and helps installers meet safety standards.
Get a Quick Quote for a ABB 2CPX035076R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035076R9999?
Enquire Now
FAQs
This board is designed for integration into standard meter cabinets with TN-S earthing and Cu busbar conductors. It supports 5P configurations and UP to 200 A nominal current, with pre-wired connections that simplify field terminations and reduce commissioning time when paired with compatible ABB or third-party switchgear.
Key specs include maximum operational voltage of 415 V, rated current of 200 A, IP2XC protection, EN 61439-1/2 compliance, and a 5-pole arrangement. The assembly supports up to 222 A InA for the switchgear, with Cu busbars 12 x 5 mm and a TN-S earthing system to ensure reliable metering pathways.
Yes. The board is purpose-built for internal metering within distribution switchgear, offering a closed enclosure, modular DIN placement (252), and pre-wired connections that streamline metering integration in utility-scale and industrial networks while maintaining regulatory compliance.
The unit is compliant with EN 61439-1/2 and DIN EN 61439-2, CE-marked, and uses IP2XC protection. RoHS and REACH declarations are provided, along with WEEE categorization. These certifications support regulatory approvals, asset management, and lifecycle planning.
Pre-wired connections reduce field termination time and labor costs, delivering faster commissioning and lower maintenance overhead. However, for high short-circuit scenarios above 25 kA, backup protection is required by design, which should be integrated into the overall protection scheme to ensure continued reliability and safety.
