ABB 2CPX035077R9999 Meter panel - IP2XC, EN 61439-1
Part Number: 2CPX035077R9999
Quick Summary
Meter panel ABB 2CPX035077R9999 provides a ready-to-wire metering board for inside-enclosure use. Engineers often struggle with mismatched dimensions, installation complexity, and non-standard wiring layouts. This unit features IP2XC protection, EN 61439-1 compliance, and CE/RoHS/REACH declarations for global reliability. Designed for data centers, utility cabinets, and industrial controls, it reduces installation time and future-proofs with a pre-wired configuration. With dimensions of 1050 x 500 x 160 mm and 168 DIN spaces, it supports scalable metering in constrained spaces. The solution is suitable for installation in A-cabinets and can ease transitions to more comprehensive metering schemes, while maintaining a clean, professionally finished look.
Product Information
Extended Description

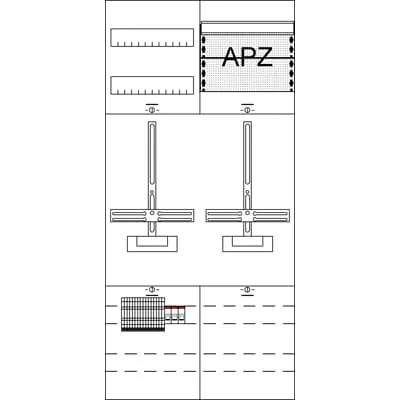

2CPX035077R9999 ABB: Meter panel, empty board, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, Note: for installation in A-cabinet, for installation in other cabinets extra parts to be required, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter panel
Enclosure Type of Height
3
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
8.6 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.944 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4106Z
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: IP2XC protection provides enhanced enclosure safety and dust ingress control. Business Impact: Improves operator safety and reduces risk of metering faults in harsh environments. Application: Ideal for meter panels inside industry cabinets where reliability is essential. Feature: EN 61439-1 compliance ensures standard metering cabinet performance and safety. Business Impact: Facilitates regulatory alignment, simplifies procurement, and reduces validation time. Application: Suitable for utility-scale and industrial metering projects seeking certified enclosures. Feature: Pre-wired per DSO requirements streamlines installation and minimizes field wiring errors. Business Impact: Cuts commissioning time, lowers onsite labor costs, and accelerates project timelines. Application: Perfect for fast-track energy metering deployments in A-cabinets and similar cabinets. Feature: 168 DIN place units and 7 GU grid unit support scalable metering layouts. Business Impact: Enables flexible configurations for future expansion without replacing the enclosure. Application: Useful in evolving metering installations in data centers and utilities. Feature: Closed cover with plastic covers andRAL 7035 light grey finish provides durable protection and aesthetic consistency. Business Impact: Reduces maintenance cycles and ensures compliance with corporate branding. Application: Suitable for long-term installations in controlled environments where appearance matters. Feature: Lower connection space with DIN rails (Top Hat Rails) facilitates modular wiring and easy accessory mounting. Business Impact: Improves wiring organization, reduces fault opportunities, and simplifies upgrades. Application: Works with standard ABB wiring schemes and cabinet layouts for straightforward integration.
Get a Quick Quote for a ABB 2CPX035077R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035077R9999?
Enquire Now
FAQs
The ABB meter panel is designed for inside-cabinet metering with a pre-wired setup per DSO requirements, which minimizes on-site wiring. For installation in A-cabinets it fits standard DIN-rail layouts and uses 168 DIN spaces. When mounting in other cabinet types, some additional parts may be required to align the mounting rails and cross connections. Verify cabinet depth and DIN rail compatibility before deployment.
Key specifications include a maximum rated operational voltage of 415 V, a rated current of 0 A for an empty panel, 5 poles (5P), and IP2XC protection. The enclosure adheres to EN 61439-1 and is RoHS/REACH compliant, with a 1050 x 500 x 160 mm footprint and RAL 7035 color. These specs support safe, compliant metering configurations in typical industrial and utility environments.
Yes, the meter panel is designed to support metering configurations that align with indirect metering concepts, thanks to its metering cross, transformer/SG space provisions, and 168 DIN spaces. It is suitable for grid-related metering setups when installed with appropriate metering equipment. Always confirm cross-connection requirements and DSOs guidelines for specific indirect metering arrangements.
The unit carries IP2XC protection, EN 61439-1 compliance, and CE declarations, along with RoHS and REACH compliance. It is listed in SCIP and WEEE categories for end-of-life handling. These certifications support regulatory compliance across Europe and other regions, and they reassure buyers about environmental and safety standards for energy metering installations.
The pre-wired design reduces field wiring work, shortens commissioning times, and minimizes wiring errors, delivering lower labor costs and faster project closure. With standardized dimensions and mounting (1050 x 500 x 160 mm, 168 DIN spaces), future upgrades or meter changes can be performed without replacing the enclosure, improving lifecycle value and reducing total cost of ownership.
