ABB 2CPX035092R9999 Panel - IP2XC
Part Number: 2CPX035092R9999
Quick Summary
ABB 2CPX035092R9999 Panel performs measurement and metering transformer duties for internal busbar assemblies in low- and medium-voltage switchgear, ensuring accurate monitoring wherever space is at a premium. Engineers often face wiring complexity, mis-wiring risk, and lengthy commissioning when integrating metering and protection in compact enclosures; this panel ships pre-wired and ready for fast installation. It is designed to meet EN 61439-1/2 and CE conformity, with IP2XC protection to withstand restricted environments, plus RoHS and REACH declarations for regulatory compliance. These capabilities translate into faster project execution, reduced field wiring errors, and lower lifecycle costs, while supporting metering, load monitoring, and SCADA-ready integration in smart substations and industrial plants.
Product Information
Extended Description

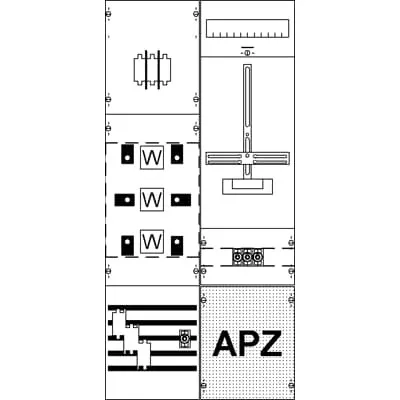

2CPX035092R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, (300 mm), Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Bottompart 1 x 3 x NH00 with connection screws, primary wiring 70 qmm, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
19.482 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
20.261 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4284
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-wired metering module and dedicated meter spaces reduce wiring time and field errors, enabling reliable first-pass commissioning. Business Impact: Accelerates project timelines and lowers on-site labor costs, improving overall ROI. Application: Meter cabinets and distribution panels in new builds or retrofits where speed matters. Feature: EN 61439-1/2 compliance and CE conformity with IP2XC protection provide safety and regulatory alignment. Business Impact: Simplifies procurement and audit trails while ensuring safe operation in indoor environments. Application: Modern switchgear assemblies in utility and industrial facilities. Feature: TN-S earthing and 5-pole configuration deliver robust protection and clear fault pathways. Business Impact: Improves fault clearance reliability and simplifies maintenance routines. Application: Internal busbar networks and metering sections in low- to medium-voltage gear. Feature: Built-in busbar system (Cu 12 x 5 mm) and 1 meter cabinet/meter panel integration support compact, scalable layouts. Business Impact: Maximizes space utilization and enables seamless metering expansion. Application: Meter spaces with busbar distribution in compact panels. Feature: Durable enclosure in RAL 7035 light grey with closed cover supports indoor operation and easy handling. Business Impact: Reduces maintenance downtime and improves aesthetic integration with facility enclosures. Application: Indoor metering panels in data centers, factories, and substations. Feature: Pre-wired and space-efficient design with 168 DIN place units and 300 mm meter space capabilities streamline installation. Business Impact: Lowers field wiring density and improves installation quality. Application: meter cabinets where dense, organized wiring is required.
Get a Quick Quote for a ABB 2CPX035092R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035092R9999?
Enquire Now
FAQs
This panel ships with a pre-wired metering module and a dedicated meter space, designed for internal use in switchgear. Its dimensions are 1050 mm high, 500 mm wide, and 160 mm deep, with IP2XC protection and a TN-S earthing system. Plan for 1 meter cabinet and 1 meter panel configuration during layout and wiring schematics.
Key specs include a rated operational voltage of 415 V AC, a rated current of 100 A, and 5 poles. The enclosure supports 1 meter cabinet and 1 meter panel, with Cu busbars 12 x 5 mm and IP2XC protection. It is designed to meet EN 61439-1/2 and CE conformity for safe operation.
Yes. The 2CPX035092R9999 Panel is intended for meter cabinets and internal distribution within switchgear. Its pre-wired metering module, 168 DIN place units, and 500 mm width align with typical meter panel footprints, while EN 61439-2 compliance and CE marking ensure regulatory acceptance in modern electrical installations.
Yes. The product carries RoHS information and CE conformity, with REACH declarations indicating substances present above 0.1 mass percentage. WEEE categorization is also noted, supporting responsible disposal. This makes the panel suitable for projects requiring regulatory compliance across European markets.
The pre-wired metering module and integrated busbar system reduce field wiring time and maintenance effort, improving reliability and reducing commissioning risk. Its robust IP2XC enclosure and TN-S grounding support long-term uptime, while CE/EN 61439-2 compliance eases audits and minimizes lifecycle costs for metering panels in industrial plants.
