ABB 2CPX035093R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035093R9999
Quick Summary
Metering Transformer Board is ABB's 2CPX035093R9999 designed for integrated metering in low‑voltage switchgear. Engineers often confront cramped spaces, complex wiring, and long installation times when adding measurement and metering capabilities. It delivers EN 61439-1/2 compliance, IP2XC protection, and CE declarations to support safe, reliable operation in industrial panels. By pre-wiring the metering module and using a 5‑pole, 3‑width design, it reduces on-site wiring time and errors. This translates into faster project delivery, lower commissioning costs, and safer, compliant metering solutions for utilities and manufacturers. Its modular design, including a dedicated meter space and busbar integration, supports scalable layouts for expanding facilities. Outfitted with a TN‑S earthing system and robust enclosure, it withstands demanding industrial environments.
Product Information
Extended Description

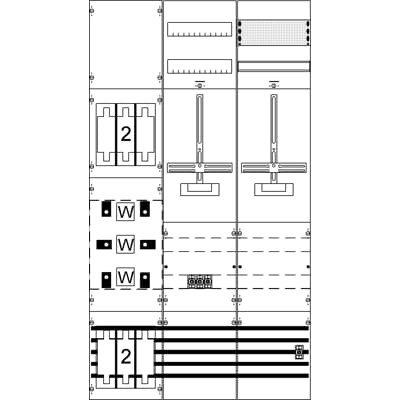

2CPX035093R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 750 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring 120 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
324
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
36.412 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
37.868 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4285
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-wired metering module and dedicated meter space. Business Impact: Significantly speeds installation and minimizes field wiring errors, improving metering accuracy and system reliability. Application: Ideal for internal meter cabinets in switchgear and distribution panels, including indirect metering setups and busbar integration to simplify assembly. Feature: IP2XC enclosure with closed cover and RAL 7035 finish. Business Impact: Provides robust protection against dust and accidental contact, elevating safety and component longevity in busy industrial spaces. Application: Indoor or semi-protected environments where meter panels face routine handling. Feature: Flexible modular layout with 324 DIN units, 3 panel widths, and 5-pole configuration. Business Impact: Enables scalable metering layouts and faster design wins for evolving facilities. Application: Meter cabinet designers and utility-scale installations requiring adaptable space planning and accurate DIN placement. Feature: Integrated electrical architecture including Cu busbars 2 x 12 x 5 mm and pre-wired connections. Business Impact: Reduces field wiring complexity, improves reliability, and shortens commissioning. Application: Switchgear assemblies needing reliable busbar integration and clean, pre-terminated wiring paths. Feature: Compliance and environmental readiness with RoHS, REACH, WEEE, SCIP, and CE declarations. Business Impact: Lowers regulatory risk, supports sustainability goals, and accelerates approvals for OEMs. Application: Procurement and engineering teams prioritizing regulatory alignment and green compliance. Feature: Comprehensive specifications including 415 V maximum voltage, 210 A nominal current, 1 meter cabinet, 1 meter panel, and 750 mm width. Business Impact: Ensures compatibility with standard low-voltage networks and existing metering hardware, reducing integration surprises. Application: Utilities, process industries, and manufacturing facilities performing internal energy measurement and transformer metering.
Get a Quick Quote for a ABB 2CPX035093R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035093R9999?
Enquire Now
FAQs
Yes. The 2CPX035093R9999 is designed for internal metering within switchgear and aligns with EN 61439-1/2 requirements. It features a 5-pole arrangement, IP2XC protection, and a modular design that fits standard low-voltage assemblies, simplifying integration with existing enclosures and busbar systems.
Key specs include a maximum operational voltage of 415 V, a rated current of 210 A, and a 5-pole configuration. The enclosure supports a 1 meter net side compartment, a 750 mm width, 1350 mm height, and a 160 mm depth, with Cu busbars and pre-wired meter spaces to streamline wiring and metering accuracy.
Industries such as utilities, manufacturing, and process industries benefit most, especially where internal energy metering and transformer metering are required within switchgear. The module’s IP2XC protection and modular metering spaces support scalable deployments in plant power distribution, data centers, and critical infrastructure.
The product adheres to DIN EN 61439-2 and EN 61439-1/2, with CE declarations, RoHS and REACH compliance, WEEE categorization, SCIP registration, and a robust environmental profile for sustainable operations in industrial settings.
ROI is driven by reduced installation time, lower wiring error rates, and fewer field modifications, thanks to pre-wired meter modules and standardized busbar layouts. Maintenance is simplified by factory pre-wiring and documented installation steps (ZX340), improving uptime and long-term reliability in energy metering applications.
