ABB 2CPX035129R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035129R9999
Quick Summary
ABB 2CPX035129R9999 Metering Transformer Board enables compact, ready-to-install metering panels for internal switchgear cabinets. Engineers often struggle with wiring complexity, space constraints, and enforcing compliance during panel assembly, which can cause project delays. This solution aligns with EN 61439-1/2/3 and CE requirements, while IP2XC protection and RoHS/REACH declarations reduce risk and traceability concerns. With DIN-rail compatibility and a 252 DIN unit footprint, it delivers faster deployment and lower lifecycle costs in industrial automation projects.
Product Information
Extended Description

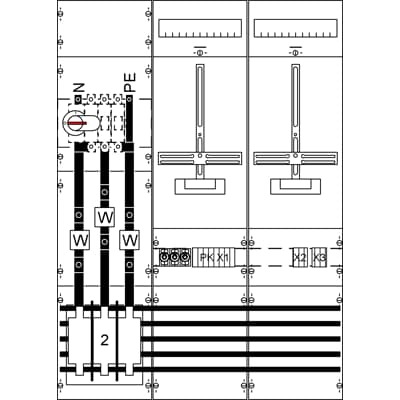

2CPX035129R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 750 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, voltage path Fuse base element D01/3-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
252
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
24.873 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
25.868 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4228
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Fully assembled module with Metering cross and a 5-pole enclosure reduces on-site wiring and assembly time, accelerating commissioning and minimizing human error. This directly improves project schedules and lowers labor costs in utility-scale and industrial automation installations. IP2XC protection, closed plastic covers, and CE declarations provide robust ingress protection and regulatory confidence for indoor use, helping you meet strict safety and environmental standards without added design work. The dedicated TN-S earth system and copper busbar arrangement (L1-L3 Cu-Busbar 30 x 5 and N+PE Cu-Busbar 20 x 5) simplify wiring, reduce impedance mismatches, and support reliable fault clearance during testing and operation. With 252 DIN units, three panel widths, and dimensions of 1050 x 750 x 160 mm, planning and installation become predictable in compact control rooms or distributed plant sections. RoHS and REACH declarations further ensure material compliance, simplifying procurement and sustainability reporting. The enclosure is designed for half indirect metering applications, aligning with meter-panel standards and enabling consistent metering layouts across multiple switchgear cabinets. Overall, the module reduces lifecycle costs by improving maintainability, spare-part availability, and upgrade readiness for future metering configurations.
Get a Quick Quote for a ABB 2CPX035129R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035129R9999?
Enquire Now
FAQs
Begin with a compatible internal meter cabinet and TN-S earth system. Mount the 5-pole enclosure using the 252 DIN unit footprint, route L1-L3 Cu-Busbar and N+PE Cu-Busbar connections, then connect the CT mounting pad as specified. Ensure IP2XC protection is maintained by closing covers and using the quick-seal connections. Follow EN 61439-1/2/3 guidelines throughout.
The board complies with EN 61439-1/2/3 and carries CE declarations. It also aligns with RoHS and REACH requirements, supports WEEE categorization, and is noted under SCIP for German market compliance. IP2XC rating specifies the enclosure protection level suitable for indoor installations.
Yes. The enclosure is designed as a measurement and metering transformer board intended for internal meter cabinets, including configurations for half indirect metering as indicated in ABB’s material compliance data.
Key advantages include a fully assembled module with Metering cross, quick-seal connections, and a compact 1050 x 750 x 160 mm footprint. It reduces on-site wiring, speeds commissioning, and simplifies future upgrades by retaining a consistent 252 DIN unit layout for scalable metering configurations.
The integrated module design limits field wiring, lowers misconnection risk, and provides readily available spare-part compatibility within the 252 DIN footprint. Compliance declarations (RoHS/REACH) and EN standards support regulatory maintenance efforts and supplier reliability for long-term plant performance.
