ABB 2CPX035130R9999 Metering transformer board - IP2XC
Part Number: 2CPX035130R9999
Quick Summary
Metering transformer board from ABB provides a compact, ready-to-install measurement and metering solution for medium-voltage distribution cabinets. Engineers struggle with space, integration, and compliance across EN 61439 series assemblies. Key features include IP2XC protection, EN 61439-1/2/3 conformity, and a rated voltage up to 415 V with 220 A. This enclosure-compatible module simplifies installation in ABB and third-party cabinets, reducing field wiring time while ensuring RoHS/REACH compliance and durable, compliant operation. It incorporates a rugged enclosure, IP2XC protection, TN-S earthing, and modular busbars to support flexible metering layouts. Designed to meet DIN EN 61439-3 standards, the module supports future upgrades and quick, sealable connections.
Product Information
Extended Description

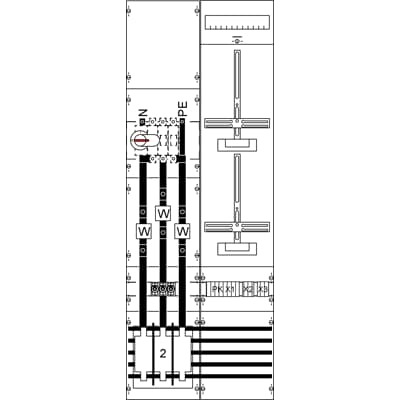

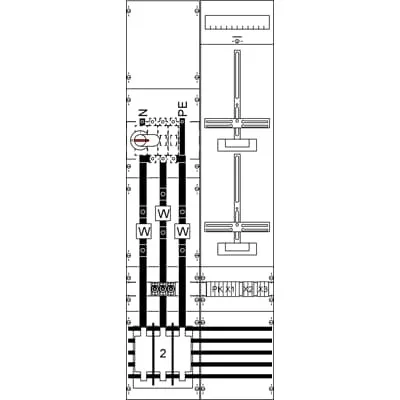

2CPX035130R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, voltage path Fuse base element D01/3-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
24.129 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
25.094 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4229
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature — The board ships as a fully assembled measurement and metering transformer module with Metering cross and IP2XC protection. Business Impact — Reduces on-site assembly time, minimizes wiring errors, and accelerates commissioning in complex meter cabinets. Application — Ideal for internal metering in distribution boards and energy-management installations. Feature — EN 61439-1/2/3 compliance and 415 V, 220 A ratings ensure regulatory alignment and reliable operation. Business Impact — Improves safety, standardizes performance, and supports scalable metering for growing facilities. Application — Suitable for medium-voltage distribution cabinets across manufacturing and utilities. Feature — Two-story construction with 216 DIN spaces and 24-module width enables scalable layouts. Business Impact — Maximizes space efficiency, simplifies planning, and supports future expansion without new enclosures. Application — Fits in compact switchgear rooms needing flexible meter panels. Feature — Quick-sealable connections, TN-S earthing, and a 5-pole 250 A switch boost installation speed and reliability. Business Impact — Reduces downtime and enhances safety during maintenance. Application — Useful for rapid upgrades and service in busy plant environments. Feature — RoHS, REACH, CMRT, SCIP, and WEEE compliance provide sustainability and regulatory confidence. Business Impact — Lowers lifecycle risk, supports audits, and aligns with corporate ESG goals. Application — Beneficial for compliant, long-term energy-management projects in industries with strict supplier declarations.
Get a Quick Quote for a ABB 2CPX035130R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035130R9999?
Enquire Now
FAQs
Install the ABB 2CPX035130R9999 in a meter cabinet by verifying EN 61439 compliance and IP2XC protection. Align with the cabinet's 216 DIN spaces, mount securely, and connect L1-L3 via Cu-Busbar 30x5 and 20x5 sections. Attach N+PE via M8 terminals and configure TN-S earthing. Use the quick-sealable connections and the 5-pole switch for safe, fast commissioning.
Yes. The board is rated for a maximum operational voltage of 415 V AC and supports a nominal current of 220 A. It also accommodates a 222 A InA rating for the assembly, with a 5-pole, 250 A switch, ensuring reliable performance in distribution cabinets and metering panels at typical industrial loads.
ABB’s metering transformer board complies with DIN EN 61439-1/2/3 and is CE-labeled with an EU Declaration of Conformity for meter panels. It also carries RoHS compliance (EU 2011/65/EU with 2015/863) and REACH declarations, plus CMRT, SCIP registration, and WEEE categorization for large equipment B2B deployment. IP2XC protection and EN 61439-3 listed standards are part of the package.
Dimensions are 1350 mm (H) x 500 mm (W) x 160 mm (D) with 216 DIN spaces, designed as a two-story enclosure. The unit uses a 24-module width and 2-panel width structure, with a light grey RAL 7035 finish and closed covers for durability and safe operation in busy switchgear rooms.
By standardizing metering in a ready-to-install module, plants reduce field wiring time, minimize commissioning risk, and ensure scalable metering layouts for future energy management. The IP2XC protection and EN 61439 compliance lower safety incidents, while RoHS/REACH/WEEE alignment supports corporate sustainability reporting and compliance budgets. This translates to lower total cost of ownership, predictable lead times, and easier audits across manufacturing facilities.
