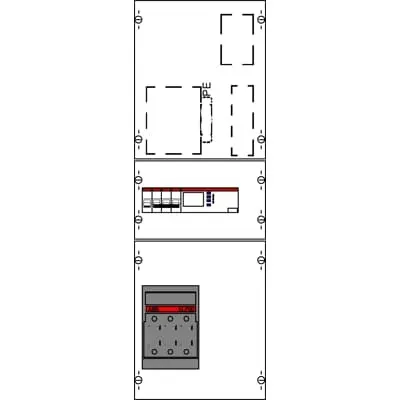

ABB 2CPX035613R9999 EEG-board - 5P, 415 V
Part Number: 2CPX035613R9999
Quick Summary
EEG-board ABB 2CPX035613R9999 is a cabinet-mounted distribution unit engineered for industrial power panels. Engineers often struggle with tight space, wiring complexity, and ensuring compliance across evolving standards. This solution aligns with VDE AR-N 4105:2018-11, CE conformity, RoHS and REACH declarations, and WEEE requirements, giving you confidence in regulatory readiness. With 5 poles, 88 A ratings, and TN-S earthing (also suitable for TT systems), it supports scalable power distribution while reducing installation time and risk. By integrating these specs into your cabinet design, you can streamline procurement, simplify maintenance, and ensure consistent performance across sites.
Product Information
Extended Description
2CPX035613R9999 ABB: EEG-board, mounted in cabinet, applicable standards: VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50 Hz, rated current 88 A, Rated current of the assembly of switchgear and controlgear InA 88 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, covers out of Plastic, Quick sealable connection
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
88 A
Rated Operational Current (Ie)
88 A
Number of Poles
5P
Number of Switches
1
Number of TSG Panels
0
Enclosure Type
EEG-board
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Product Net Weight
11.811 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.283 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KMN4S0110
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
