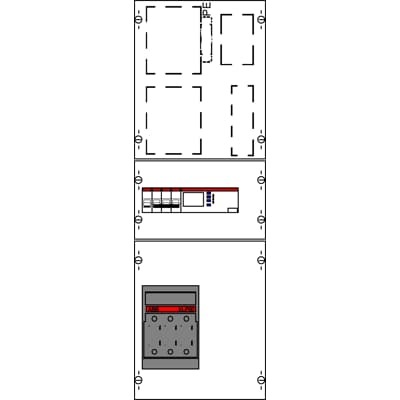

ABB 2CPX035614R9999 EEG-board - VDE AR-N 4105:2018-11
Part Number: 2CPX035614R9999
Quick Summary
ABB 2CPX035614R9999 EEG-board enables compact, compliant power distribution inside electrical cabinets. This solution addresses space constraints and mounting complexity that challenge modern control panels, delivering reliable performance in tight layouts. It aligns with key standards such as VDE AR-N 4105:2018-11, CE declarations of conformity, RoHS, and REACH, ensuring regulatory compliance across European utilities. By integrating a 5P, 88 A switchgear assembly in a 1050×250×160 mm footprint with a TN-S earthing system (TT-compatible), it reduces wiring complexity and installation time. The enclosure supports scalable distribution with 2 switches and a robust, plastic-covered design, providing long-term value for OEMs and maintenance teams while maintaining safety and reliability.
Product Information
Extended Description
2CPX035614R9999 ABB: EEG-board, mounted in cabinet, applicable standards: VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50 Hz, rated current 88 A, Rated current of the assembly of switchgear and controlgear InA 88 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, covers out of Plastic, Quick sealable connection
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
88 A
Rated Operational Current (Ie)
88 A
Number of Poles
5P
Number of Switches
2
Number of TSG Panels
0
Enclosure Type
EEG-board
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Product Net Weight
13.627 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.172 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KMN8S0110
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Rated Operational Voltage and Current: The EEG-board operates up to 415 V with a rated current of 88 A in a 5P configuration, housed in a compact 1050×250×160 mm footprint. Business impact: enables tighter panel layouts and predictable thermal performance, reducing cabinet depth needs and enabling faster assembly in mid-size automation installations. Application: ideal for control cabinets in factory automation where space is at a premium and reliable power distribution is critical. Enclosure Design and Sealing: With plastic-covered covers and quick-sealable connections, the EEG-board minimizes maintenance downtime and ingress risks. Business impact: simplifies field servicing, improves dust and moisture protection, and supports rapid reconfiguration during commissioning or upgrades. Application: suitable for evolving production lines and modular electrical rooms where uptime is essential. Regulatory Compliance: RoHS and REACH declarations, plus a CE conformity framework, ensure components meet European environmental and safety standards. Business impact: reduces regulatory risk, streamlines procurement, and supports compliance-driven audits. Application: relevant for medical-adjacent, building automation, and utility-related installations requiring traceable material declarations. Earthing Flexibility and Safety: TN-S earthing is standard with TT compatibility, enabling flexible integration with regional utility practices. Business impact: lowers site adaptation costs and expands compatibility across different industrial networks. Application: especially beneficial for European installations and mixed electrical infrastructures. Installation and Compatibility: 5P, 2 switches, and a compact enclosure are designed for straightforward cabinet mounting and wiring during retrofit projects. Business impact: shortens project timelines, reduces labor costs, and improves installation predictability. Application: ideal for OEMs upgrading control panels or expanding existing switchgear assemblies with minimal downtime.
Get a Quick Quote for a ABB 2CPX035614R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035614R9999?
Enquire Now
FAQs
Begin by confirming cabinet dimensions (1050×250×160 mm) and ensuring clearance for the 5P, 2-switch assembly. Mount the EEG-board securely, connect the incoming and outgoing conductors to the designated terminals, and follow the quick-sealable connection method to minimize ingress risk. Verify TN-S grounding, with TT compatibility if required, and perform a functional test after wiring to ensure proper operation and safety.
Key ratings include rated operational voltage up to 415 V, rated current of 88 A (In) and Ie, and a 5P configuration with 2 switches. Physical dimensions are 1050 mm in height, 250 mm in width, and 160 mm in depth, with a net weight of about 13.627 kg. Ensure your panel space supports these measurements and that the bus, cabling, and connectors align with the EEG-board footprint.
The EEG-board is designed for TN-S earthing and is also suitable for TT systems, providing flexible deployment across European installations. When using TT systems, ensure proper protective grounding practices are followed and that any local codes or utility requirements are met to maintain safety and compliance.
It complies with VDE AR-N 4105:2018-11, carries a CE Declaration of Conformity, and aligns with RoHS and REACH directives. WEEE classification is 4 for large equipment, and the product is intended for B2B use. These certifications support regulatory compliance, safety, and environmental responsibility in panel assemblies.
The EEG-board reduces installation time with quick-sealable connections and a compact footprint, cutting labor costs and enabling quicker panel commissioning. Its robust enclosure and RoHS/REACH compliance lower regulatory risk and maintenance needs, while TN-S/TT compatibility simplifies site-specific wiring strategies, contributing to a lower total cost of ownership over the panel’s lifecycle.
