ABB 2CPX035617R9999 EEG-board - 5P 415V CE RoHS
Part Number: 2CPX035617R9999
Quick Summary
EEG-board ABB 2CPX035617R9999 is a modular distribution panel for industrial electrical distribution. It tackles common panel challenges like undersized enclosures and complex wiring by delivering 88 A rated current and clear TN-S earthing. With CE conformity, RoHS compliance, and REACH declarations, the solution supports safe production environments and regulatory audits. For procurement and engineering teams, this means faster installation, lower change-management costs, and easier maintenance across facilities. Designed for half indirect metering and sized at 1050 × 250 × 160 mm, it simplifies enclosure selection and reduces on-site adjustments. The quick-sealable covers and plastic enclosure aid quick access and safer wiring.
Product Information
Extended Description

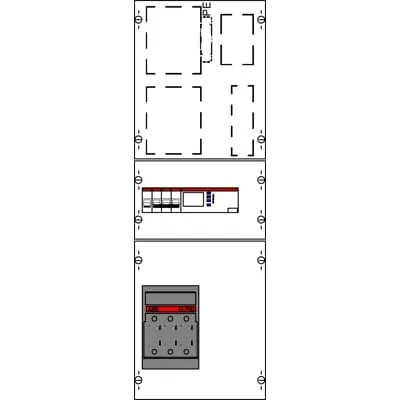

2CPX035617R9999 ABB: EEG-board, Modular distribution panel not assembled, applicable standards: VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50 Hz, rated current 88 A, Rated current of the assembly of switchgear and controlgear InA 88 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, covers out of Plastic, Quick sealable connection
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
88 A
Rated Operational Current (Ie)
88 A
Number of Poles
5P
Number of Switches
2
Number of TSG Panels
0
Enclosure Type
EEG-board
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
10a9f1be-1954-443a-adbd-d467ef7f2108 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Product Net Weight
14.878 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
15.473 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KBN8S0110
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Feature: 5-pole EEG-board with two switches and a rated current of 88 A. Business impact: delivers robust power distribution for demanding control panels, reducing overload risk and downtime. Application: suitable for industrial automation cabinets requiring reliable high-current distribution and clear switchgear segmentation. Long-tail keywords addressed include industrial distribution panel, high-current electrical enclosure, and 5P switchgear compatibility. Feature: Rated operational voltage up to 415 V. Business impact: aligns with standard three-phase mains, simplifying upfront design and wiring practices. Application: machine controls and process lines in factories. Feature: TN-S earthing system compatibility with TT-System suitability. Business impact: enhances safety, compliance, and fault clearance in critical control environments. Application: safety-critical power distribution in manufacturing plants. Feature: RoHS and REACH compliance with EU declarations, WEEE category 4. Business impact: supports regulatory audits and sustainability targets, reducing lifecycle risk. Application: procurement and compliance-ready projects across facilities. Feature: Compact dimensions 1050 x 250 x 160 mm and weight ~14.88 kg with plastic covers. Business impact: facilitates enclosure matching and minimizes installation time. Application: retrofit or new-build industrial switchgear assemblies.
Get a Quick Quote for a ABB 2CPX035617R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035617R9999?
Enquire Now
FAQs
Install the EEG-board within a suitable enclosure sized to accommodate 1050 × 250 × 160 mm dimensions. Mount the 5P distribution panel securely, connect the two switches as per the circuit diagram, and ensure the TN-S earth connection is solid and compliant. Use the quick-sealable plastic covers to finalize wiring routes and verify 88 A rating under load tests.
The unit supports a maximum operating voltage of 415 V and a rated/current Ie of 88 A. It features 5 poles (5P) with 2 switches and is designed for modular distribution. Dimensions are 1050 mm (H) × 250 mm (W) × 160 mm (D) with an approximate weight of 14.878 kg, suitable for heavy-duty plant applications.
Yes. The EEG-board is specified for meter panels for half indirect metering. For detailed wiring, refer to the circuit and distribution diagram D sheet KBN8S0110 and confirm the integration with half indirect metering schemes. Ensure compatibility with your metering strategy and SC/SCIP reporting requirements when implementing within your electrical infrastructure.
It carries CE conformity with EU declarations, RoHS compliance under Directive 2011/65/EU and 2015/863, and REACH declarations. WEEE category 4 classification applies for large equipment, and SCIP listing is provided for supply chain transparency. These certifications support regulatory audits, environmental compliance, and responsible procurement decisions.
The design emphasizes quick access via quick-sealable plastic covers, reducing commissioning time. Its 14.878 kg weight and 1050 × 250 × 160 mm footprint simplify rack/space planning, while TN-S earth and 88 A rating minimize fault-related downtime. The combination of RoHS/CE compliance and a maintenance-friendly layout supports lower lifecycle costs and faster return on investment.
