ABB 2CPX035618R9999 EEG-board 415V/200A CE Certified
Part Number: 2CPX035618R9999
Quick Summary
ABB EEG-board 2CPX035618R9999 enables modular distribution in industrial enclosures for high-current installations. Engineers often struggle with space constraints and unreliable access to metering panels in compact switchgear rooms. This EEG-board supports CE marking, RoHS and REACH declarations, plus SCIP registrations, helping you meet regulatory demands with confidence. Its 1200 mm x 250 mm x 160 mm footprint, TN-S earthing, and quick-seal connections speed assembly and reduce field wiring errors. For engineers and OEMs, this module delivers scalable distribution with improved uptime, easier maintenance, and alignment with ABB's EEG-board ecosystem. The design supports half indirect metering and direct connection options, making it adaptable across multiple power architectures. Customers report faster commissioning, fewer field rewires, and improved safety due to clearly labeled terminals and robust enclosure shielding.
Product Information
Extended Description

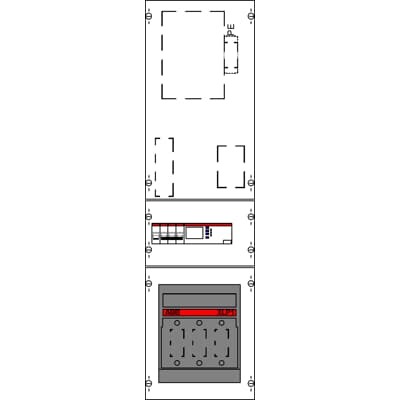

2CPX035618R9999 ABB: EEG-board, Modular distribution panel not assembled, applicable standards: VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, dimensions in mm (H x W x D): 1200 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, covers out of Plastic, Quick sealable connection
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Rated Operational Current (Ie)
200 A
Number of Poles
5P
Number of Switches
1
Number of TSG Panels
0
Enclosure Type
EEG-board
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
a79fb452-f70f-4b24-b00a-44ae68fe1cc2 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
250 mm
Product Net Height
1200 mm
Product Net Depth / Length
160 mm
Product Net Weight
19.353 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
20.127 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KBN4S0250
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Feature: Rated Operational Voltage up to 415 V and Rated Current of 200 A. This gives headroom for motor starts, peak loads, and short-term surges common in heavy-duty manufacturing lines, while maintaining safe conductor sizing and thermal performance. Business impact: fewer deratings, smaller spare parts stocks, and faster project timelines. Application: modular distribution panels in industrial electrical infrastructure where reliable continuous operation under demanding loads is required. Feature: Five-pole construction paired with a single integrated switch. Business impact: supports safe, balanced three-phase distribution with consolidated control wiring and reduced panel depth, cutting assembly time and potential wiring errors. Application: suitable for switchgear cabinets serving conveyors, presses, and injection molding lines where compact footprints and clear phase separation are essential for reliability. Feature: TN-S earthing system with compatibility for TT-System networks. Business impact: improves safety margins by ensuring consistent earth fault return paths and simplifies regulatory compliance across facilities with varied grounding practices. Application: ideal for industrial installations employing mixed earthing schemes or requiring robust protective earth continuity in ABB-compatible switchgear ecosystems. Feature: Quick sealable connection and recyclable plastic covers. Business impact: accelerates on-site installation, reduces seal failures in damp or dusty environments, and facilitates future maintenance without compromising enclosure integrity. Application: half indirect metering layouts and direct connection configurations in modern switchrooms, where reliable terminations and rapid serviceability matter. Feature: Comprehensive material compliance including RoHS, REACH, and SCIP, with EU Declaration of Conformity and WEEE categorization. Business impact: supports regulatory readiness, sustainability reporting, and streamlined end-of-life planning for European projects. Application: suitable for European manufacturing, energy management deployments, and OEMs integrating ABB EEG-board modules into modular distribution schemes.
Get a Quick Quote for a ABB 2CPX035618R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035618R9999?
Enquire Now
FAQs
Begin by confirming the 5P 200 A rating and 415 V operating voltage match your system. Mount the EEG-board in the enclosure, align with mounting holes, and secure the quick sealable connections to minimize wiring. Connect the TN-S earthing conductor and verify TT-System compatibility if required. Reference the circuit diagram KBN4S0250 for the distribution wiring plan.
Key specs include a maximum operating voltage of 415 V, a rated current of 200 A, and a 5-pole configuration with one integrated switch. The enclosure measures 1200 x 250 x 160 mm and weighs approximately 19.353 kg. Compliance notes cover RoHS, REACH, SCIP, WEEE, and CE declarations, suitable for European regulatory environments.
Yes. The module is designed to support both direct metering and half indirect metering configurations. For detailed wiring schemes, refer to the data sheet circuit diagram KBN4S0250. This flexibility helps optimize space in meter panels while maintaining accurate energy measurement and compliance across diverse installations.
The EEG-board carries a EU Declaration of Conformity (CE), RoHS information and REACH declarations, SCIP registration, and WEEE categorization. It is also compatible with VDE AR-N 4105:2018-11, ETIM EC001897, and eClass 27400611 classifications, ensuring alignment with European regulatory and industry standards for electrical infrastructure.
The EEG-board reduces installation time with quick sealable connections, lowers field wiring errors, and delivers scalable distribution for growing plants. Its robust metering options and compliant design simplify maintenance, improve uptime, and support long-term lifecycle management in ABB ecosystems, delivering tangible total cost of ownership benefits in mid- to large-scale industrial projects.
