ABB 2CPX035619R9999 Enclosures & Electrical Infra - IP2XC
Part Number: 2CPX035619R9999
Quick Summary
ABB 2CPX035619R9999 Enclosures & Electrical Infra is a measurement and metering transformer board designed for EEG installations. Engineers often struggle with safe wiring layouts, compact footprints, and reliable metering in restricted switchgear spaces. This enclosure complies with EN 61439-1 and EN 61439-2, adheres to VDE AR-N 4105:2018-11, carries CE marking, and features IP2XC protection for critical environments. RoHS and REACH declarations help procurement manage regulatory risk while supporting sustainability goals. By combining a robust internal layout with industry-standard compliance, this unit delivers installation efficiency and predictable lifecycle costs for electrical infrastructure projects.
Product Information
Extended Description

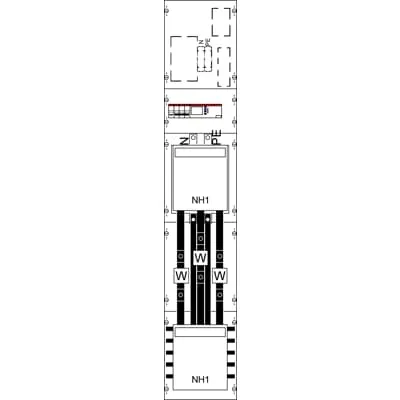

2CPX035619R9999 ABB: Measurement and metering transformer board for EEG, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50/60 Hz, rated current 115 A, Rated current of the assembly of switchgear and controlgear InA 115 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 Cu-Busbar 30 x 5 und 25 x 5, PE+N Cu-Busbar 20 x 5 mm, Incomer grid connected to busbar Cu 12 x 5 mm, PV-connected to contactor, PE connected to terminal 50 qmm, complete with distribution and control wiring, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
115 A
Rated Operational Current (Ie)
115 A
Number of Poles
5P
Number of Switches
1
Number of Meter Cabinets
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board for EEG
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
with Notch
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
b96449da-80c2-4c2d-a290-9acc2dab4514 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
23.996 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.956 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4057NA14
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled measurement and metering transformer board for EEG with IP2XC protection and dimensions 1350 x 250 x 160 mm. Benefit: Reduces field wiring errors and saves on assembly time by delivering a ready-to-install solution that meets critical safety and environmental standards. Application: EEG metering panels in industrial or utility distribution environments where space is at a premium and reliability is essential. Feature: 5 poles with rated current 115 A and a single switch. Benefit: Supports consolidated protection and switching with a compact footprint, enabling simpler control wiring and improved fault isolation. Application: Medium-power switchgear and metering assemblies in manufacturing plants and power distribution substations. Feature: Cu busbars 12 x 5 mm, NH1/250 A fuse switch disconnector, and CT mounting pad with CT rail 170 x 30 x 5 mm. Benefit: Low impedance current paths and scalable protection with high-current safety components, reducing heat buildup and maintenance needs. Application: Centralized distribution and metering where clean, reliable current paths are required. Feature: 108 DIN place units and a 1-width panel configuration. Benefit: Large wiring capacity and future-proofing for control wiring and add-ons, improving installability and serviceability. Application: Industrial plants with evolving metering and control needs. Feature: RoHS and REACH compliance with WEEE categorization and CE declaration. Benefit: Regulatory alignment minimizes procurement risk and supports eco-friendly product stewardship. Application: Global rollouts across regulated markets, including installations requiring formal compliance paperwork.
Get a Quick Quote for a ABB 2CPX035619R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035619R9999?
Enquire Now
FAQs
Installation should begin with verifying the TN-S earthing arrangement and confirming the IP2XC-rated enclosure. Position the 5P assembly with the 12x5 mm Cu busbars, mount the CT rail (170x30x5 mm), and connect the NH1/250A fuse switch disconnector as specified. Ensure PV and grid connections are wired per the internal layout and UL/IEC documentation, then perform final insulation and protection checks before commissioning.
Key specs include maximum operational voltage of 415 V, rated current (In) and rated operational current (Ie) of 115 A, 5 poles, and IP2XC protection. The unit uses Cu busbars 12x5 mm, a single switch, and includes a CT mounting pad with CT rail for precise metering. The enclosure supports direct connections to grid and PV circuits while conforming to EN 61439-1/2 and VDE AR-N 4105:2018-11.
Yes. The design includes a PV-connected path to the contactor and a robust metering/ distribution configuration. With EN 61439-1/2, IP2XC protection, and clear labeling, it supports safe integration of PV in grid-connected applications while maintaining metering accuracy and fault isolation.
The enclosure complies with EN 61439-1 and EN 61439-2, and VDE AR-N 4105:2018-11. It carries CE marking, RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, REACH declarations, and WEEE categorization. These ensure regulatory alignment across major markets and support sustainability and safe disposal.
The unit’s quick sealable connections and modular busbar design reduce field wiring time and wear, while the IP2XC rating protects against ingress in harsh environments. RoHS/REACH compliance limits hazardous substance exposure, supporting regulatory risk reduction and easier asset management, which translates to lower maintenance costs and improved total cost of ownership over the system’s life.
