ABB 2CPX035696R9999 Metering Transformer Board IP2XC
Part Number: 2CPX035696R9999
Quick Summary
ABB 2CPX035696R9999 Metering Transformer Board is a measurement module for indoor switchgear and meter panels. Engineers often grapple with wiring complexity, space constraints, and compliance when adding metering capability to existing enclosures. This solution is built to EN 61439-1/2, CE marked, and IP2XC protected, with RoHS and REACH declarations ensuring regulatory alignment. With a pre-wired metering module, TN-S earthing, and a 216 DIN-unit footprint in RAL 7035, it delivers faster installation, easier maintenance, and predictable performance for panel builders, utilities, and industrial end users.
Product Information
Extended Description
2CPX035696R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators with CT rail 160 x 30 x 10 mm, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
715ef886-32e9-44d9-86c6-4572fea71150 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
29.064 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.227 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

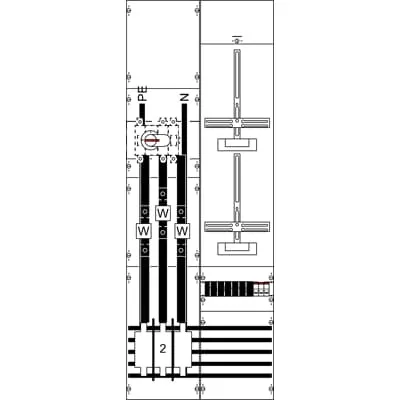

Circuit and distribution diagram KA4202
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-wired metering module reduces on-site wiring time and minimizes wiring errors. Business Impact: Accelerates panel assembly, lowers labor cost, and improves installation accuracy. Application: Meter panels and cross-metering enclosures in manufacturing facilities and utility distribution cabinets. Feature: IP2XC enclosure protection and EN 61439-1/2 compliance. Business Impact: Ensures safe operation in indoor environments while meeting international standards, reducing regulatory risk. Application: Indoor switchgear, meter cabinets, and cross-sectioned distribution boards in industrial plants. Feature: 5-pole TN-S earthing with copper busbars 2 x 12 x 5 mm. Business Impact: Robust grounding and low-resistance current paths improve fault clearance and system reliability. Application: Low- to medium-power distribution with cross-metering needs in process industries. Feature: Large footprint with 216 DIN units and dimensions 1350 x 500 x 160 mm. Business Impact: Enables flexible layout, easy component migration, and scalable metering capacity. Application: Customizable meter spaces within industrial enclosures and data center infrastructures. Feature: RoHS, REACH, SCIP, and WEEE compliance. Business Impact: Reduces regulatory risk, simplifies supplier audits, and supports sustainability goals. Application: Global deployments in automotive, energy, and infrastructure projects where compliance matters. Feature: Aesthetic and installation advantages with RAL 7035 body and closed cover. Business Impact: Consistent facility appearance and durable protection, speeding up commissioning. Application: New builds and retrofits in industrial facilities requiring durable, compliant meter solutions.
Get a Quick Quote for a ABB 2CPX035696R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035696R9999?
Enquire Now
FAQs
Yes. This board is designed for indoor switchgear and meter panels with EN 61439-1/2 conformity. It comes pre-wired for fast integration, supports 216 DIN unit layouts, and uses TN-S earthing with Cu busbars, making it straightforward to retrofit into compatible enclosures while ensuring regulatory compliance.
Core specs include a maximum operating voltage of 415 V, rated current of 210 A, and a 5P configuration. The enclosure carries IP2XC protection and is sized for 216 DIN units with 1350 × 500 × 160 mm dimensions, supporting a dedicated meter cabinet and panel spaces for metering modules.
Ideal for industrial power distribution, energy metering in manufacturing lines, and utility-grade meter panels. It supports pre-wired metering modules within indoor switchgear, aligns with DSOs’ cross-metering requirements, and helps facilities achieve precise energy measurement in factories, data centers, and process plants.
The board complies with EN 61439-1/2, carries CE declarations, RoHS and REACH compliance, and WEEE categorization. SCIP registration is noted, and the IP2XC protection class ensures reliability in indoor environments, supporting regulatory audits and sustainability reporting.
Pre-wired metering modules reduce field wiring time and errors, cutting labor costs and speeding commissioning. The robust busbar arrangement and TN-S grounding improve reliability, while standardization (RAL 7035, modular DIN footprint) simplifies maintenance and future upgrades, delivering measurable ROI through faster projects and lower lifetime costs.
