ABB 2CPX035698R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX035698R9999
Quick Summary
Measurement and metering transformer board from ABB enables compact, compliant metering integration within switchgear and controlgear assemblies. Design teams face wiring complexity, limited space, and regulatory pressure when deploying energy metering in field installations. This unit aligns with EN 61439-1/2, CE conformity, and IP2XC protection, reinforcing safety and reliability in meter panels. Its pre-wired metering module, TN-S earthing, and 216 DIN place units support fast commissioning, while a robust Cu busbar system and modular layout help reduce lifecycle costs and improve maintenance planning.
Product Information
Extended Description

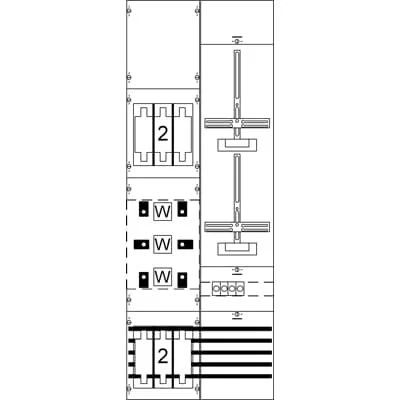

2CPX035698R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
27.062 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
28.144 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4205
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature → Business Impact → Application: The pre-wired metering module reduces field wiring time and minimizes commissioning risk, accelerating project timelines in energy distribution panels and control cabinets. This translates to lower on-site labor costs and faster time-to-value for grid modernization projects. Application: Ideal for internal meter panels where rapid integration of metering components is critical for utility-grade deployments. Feature → Business Impact → Application: IP2XC protection and EN 61439-1/2 compliance provide enhanced safety and regulatory assurance, simplifying audits and reducing risk during operation. Application: Suitable for regulated environments requiring documented conformity in ABB meter panels. Feature → Business Impact → Application: 5-pole TN-S earth and busbar-enabled connections (Cu 2 x 12 x 5 mm) support reliable power distribution, with space-efficient routing for meter spaces and transformer cross. Application: Great for compact substation enclosures and IT-safe metering zones. Feature → Business Impact → Application: 216 DIN unit footprint and modular dimensions (1350 x 500 x 160 mm) optimize panel planning, enabling scalable metering configurations. Application: Useful for multi-rack buildings and enterprise energy management installations. Feature → Business Impact → Application: RoHS, REACH, and WEEE compliance reduce regulatory risk and support sustainability goals, aligning with corporate environmental directives. Application: Essential for long-term asset management and supplier risk reduction in industrial facilities.
Get a Quick Quote for a ABB 2CPX035698R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035698R9999?
Enquire Now
FAQs
The unit ships with a pre-wired metering module and TN-S grounding. Mount the enclosure in the panel, connect N and PE via M12 terminals, secure busbars, and attach the transformer/metering cross as indicated. Verify EN 61439 conformity and IP2XC protection before energizing. This approach minimizes field wiring and reduces commissioning time.
Rated Operational Voltage is maximum 415 V, with a Rated Current of 210 A. It uses a 5-pole configuration and supports one meter cabinet and one meter panel. The enclosure provides IP2XC protection, with 216 DIN placement units and copper busbars (2 x 12 x 5 mm). These specs guide safe, compliant integration in medium-voltage metering applications.
Yes. The measurement and metering transformer board includes a metering cross and dedicated meter spaces, designed for indirect metering configurations within a dual-meter panel setup. Its pre-wired module and TN-S grounding support accurate measurement and safe separation between high-energy sections and metering circuits, reducing wiring complexity in indirect metering schemes.
The product conforms to EN 61439-1/2 and CE declarations for meter panels. It carries IP2XC protection, RoHS compliance, REACH declarations, and WEEE categorization for large equipment. The device also aligns with DSO requirements through pre-wiring and metering cross configurations, enabling regulatory-ready deployment in modern electrical infrastructure.
The pre-wired metering module reduces installation labor, minimizes field wiring errors, and speeds commissioning, delivering faster time-to-value for energy management projects. By ensuring consistent cross-wiring, busbar connections, and compliant grounding, it lowers lifecycle costs, simplifies maintenance, and supports scalable metering in growing facilities.
