ABB 2CPX035707R9999 CT Meter Panel - IP2XC EN 61439-1
Part Number: 2CPX035707R9999
Quick Summary
CT meter panel from ABB enables compact, pre-assembled switchgear housing for internal metering in industrial installations. It reduces onsite assembly complexity and minimizes wiring errors, addressing common commissioning challenges. Certified to EN 61439-1, CE, and IP2XC protection, the unit supports reliable, safe operation in harsh environments. Its modular construction improves serviceability, and the EN/IEC standards alignment helps with procurement parity and faster project sign-off. Designed for 415 V AC networks and a 100 A rated current, it integrates with Cu busbars and a TN-S grounding system, simplifying wiring. This translates to reduced project risk, faster commissioning, and lower total cost of ownership across multi-site deployments.
Product Information
Extended Description

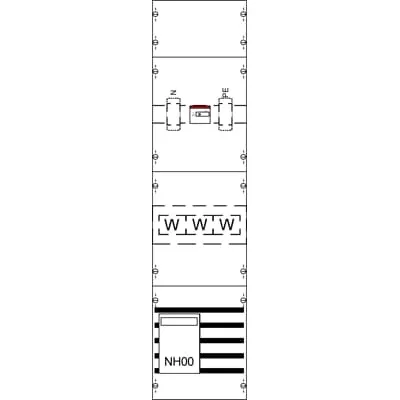

2CPX035707R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, 5-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, N+PE 2 Connections N+PE 95qmm, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
84
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
9.27 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.64 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4082
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Fully assembled CT meter panel eliminates complex on-site wiring by delivering the complete meter distribution module pre-assembled. This reduces installation time, lowers risk of miswiring, and accelerates commissioning. Ideal for internal meter distribution in ABB control cabinets and similar DIN-rail or panel environments. EN 61439-1 compliant design ensures regulatory alignment and CE marking, reducing procurement risk and certification headaches. The integrated TN-S earth, Cu busbars, and 5-pole configuration support consistent, safe operation. Use this panel in new builds or upgrade projects where standardization simplifies project management. Robust construction with Cu busbars 12 x 5 mm and a 7035 light grey finish ensures reliable current distribution and durable protection in everyday use. This panel also features a TN-S earthing system and a mounting plate for single-CT wiring to streamline installations. Rapid maintenance and inspection are supported by quick-seal connections and clearly labeled N+PE terminals. Space-efficient design with 84 DIN units and a height of 1050 mm enables high-density installations in constrained environments. The enclosure supports NH00/160A fuse switch disconnector for safe isolation and N+PE connections up to 95 qmm. RoHS/REACH compliance and SCIP registration reduce environmental and regulatory risk, supporting sustainability goals across multi-site deployments.
Get a Quick Quote for a ABB 2CPX035707R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035707R9999?
Enquire Now
FAQs
Plan for 1050 mm x 250 mm x 160 mm enclosure footprint with 84 DIN units. Ensure 415 V AC supply, 100 A rating, TN-S grounding, and space for Cu busbars 12 x 5 mm. Use the single-CT mounting plate and NH00/160A fuse switch disconnectors as specified to maintain safe isolation and reliable operation.
Rated operational voltage up to 415 V AC, rated current 100 A, 5-pole configuration, IP2XC protection, and Cu busbars 12 x 5 mm. It supports 84 DIN units, a 1050 mm height, 250 mm width, and 160 mm depth, with TN-S earth and a closed cover design.
Yes. It is designed for internal use with half- indirect or meter-based distribution, approved to EN 61439-1 and CE, with N+PE wiring and a robust, compact form factor that fits standard control cabinet layouts.
It complies with EN 61439-1, CE declarations, RoHS (Directive 2011/65/EU and Amendment 2015/863), REACH, and SCIP registration. WEEE classification is for large equipment, supporting responsible end-of-life handling.
The pre-assembled module reduces commissioning time and maintenance complexity due to quick-seal connections and clearly labeled terminals. Conservation of space (84 DIN units) and durable Cu busbars contribute to lower total cost of ownership over multi-site deployments.
