ABB 2CPX035714R9999 CT Meter Panel - IP2XC, 100 A
Part Number: 2CPX035714R9999
Quick Summary
ABB 2CPX035714R9999 CT meter panel is a compact, fully assembled distribution unit designed for internal metering in industrial electrical rooms. It helps engineers overcome space constraints and wiring complexity that often delay projects and complicate commissioning. The unit carries EN 61439-1 and DIN VDE 0603-2-2 compliance, with CE marking, RoHS and REACH declarations for safe, future-ready operation. With a TN-S earthing system, 5-pole arrangement, and Cu busbars, it supports robust, maintainable metering while simplifying installation. For projects in enclosures & electrical infrastructure, this panel delivers predictable performance, easy upgrades, and ongoing compliance in a single, ready-to-install solution.
Product Information
Extended Description
2CPX035714R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, N+PE 2 Connections N+PE 95qmm, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
11.059 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
11.501 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

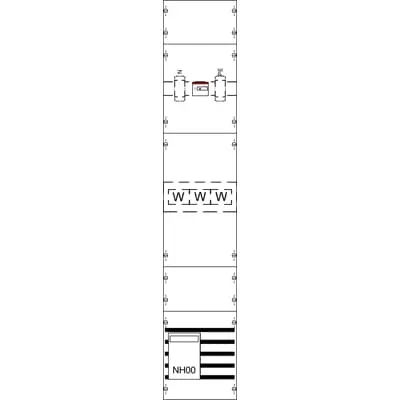

Circuit and distribution diagram KA4092
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Fully assembled CT meter panel with internal metering design reduces on-site assembly time and potential wiring errors, delivering a faster, safer install and predictable commissioning. The unit operates at up to 415 V AC and 100 A with a 5-pole configuration, supported by Cu busbars (12 x 5 mm) and a lower connection space, enabling clean, reliable primary wiring and future upgrades to voltage-path protection fuses. The TN-S earth path and 108 DIN-place unit footprint optimize space planning in dense switchgear environments, while the closed cover and quick-sealable connections simplify maintenance access without compromising protection. Compliance with RoHS, REACH, SCIP, and WEEE requirements minimizes regulatory risk and termination costs, making it suitable for regulated industrial facilities. Its light-grey RAL 7035 finish contributes to long-term durability in busy electrical rooms, reducing wear-related replacements and downtime.
Get a Quick Quote for a ABB 2CPX035714R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035714R9999?
Enquire Now
FAQs
The panel is designed for straightforward installation as a ready-to-use CT meter cabinet. It features a fixed mounting footprint (108 DIN units), a 5-pole configuration, Cu busbars, and a TN-S grounding path. Installers benefit from a closed cover with quick-sealable connections, reducing field wiring time and ensuring safe, compliant integration with existing switchgear and distribution systems.
Key specs include rated operational voltage up to 415 V, rated current of 100 A, 5 poles, IP2XC protection, 108 DIN-Place Units, and Cu busbars 12 x 5 mm. It supports a NH00/160 A fuse switch and includes a mounting plate for single-CT installations, aiding straightforward threading of cables and future upgrades.
Yes, the unit is suitable for indirect metering scenarios in control rooms and distribution panels. It complies with EN 61439-1, DIN VDE 0603-2-2, and CE declarations, with RoHS and REACH compliance already documented. The WEEE classification and SCIP listing further support regulatory alignment for European projects.
Maintenance benefits come from the closed cover design, quick-seal connections, and a 5-pole, modular busbar system that simplifies fault tracing and routine checks. The RoHS/REACH compliance and durable RAL 7035 finish reduce replacement costs and downtime, while the fully assembled module minimizes on-site labor and potential wiring errors, improving overall lifecycle cost.
Ideal for dense electrical rooms requiring reliable internal metering, the panel supports space-efficient 108 DIN-unit layouts with room for future voltage-path upgrades. ROI benefits stem from reduced installation time, lower field wiring risk, regulatory assurance, and improved uptime due to robust protection and maintenance-friendly design.
