ABB 2CPX035716R9999 CT Meter Panel, Heavy Duty - IP2XC
Part Number: 2CPX035716R9999
Quick Summary
The ABB 2CPX035716R9999 CT Meter Panel is a compact, ready-to-install solution for indoor power distribution in industrial facilities. Engineers often struggle with wiring complexity, space constraints, and compliance risks that drive project delays. This unit delivers CE declarations and adheres to EN 61439-1 and DIN VDE 0603-2-2, with IP2XC protection and RoHS/REACH conformity to streamline approvals. Designed for 415 V AC and 100 A ratings, it features a 5-pole configuration, copper busbars, and TN-S grounding to reduce field wiring and misconfiguration. The closed covers and 108 DIN place units in RAL 7035 finish support scalable deployment, faster commissioning, and safer, long-term operation across automation builds.
Product Information
Extended Description
2CPX035716R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer 1 Fuse switch disconnector NH00/160 A (M8), primary wiring 50 qmm, Connection N+PE (M8), Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
13.53 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.071 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

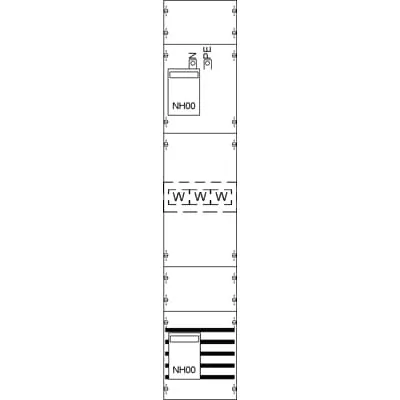

Circuit and distribution diagram KA4094
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature is a fully assembled CT meter panel module rated for 415 V and 100 A with a 5P configuration. Business Impact is accelerated installation, reduced field wiring, and lower on-site risk, enabling faster project handover. Application is indoor low-to-medium voltage distribution in manufacturing lines, data centers, and process plants, where reliable metering is essential. Feature is IP2XC protection combined with TN-S earthing and 12 x 5 mm copper busbars. Business Impact is enhanced safety and robust fault containment, improving overall system reliability during commissioning and operation. Application is integral to compliant meter cabinet design and upgrade paths for indirect metering. Feature is EN 61439-1 and DIN VDE 0603-2-2 compliance. Business Impact is regulatory alignment and simplified approvals, reducing rework and qualification time. Application is OEM builds and facility upgrades where standards conformance is mandatory. Feature is 108 DIN place units, 250 mm width and 1350 mm height. Business Impact is high capacity for meters and control devices while maintaining a compact footprint. Application is centralized metering racks and modular distribution enclosures. Feature is pre-wired copper busbars and a 5-pole layout with a dedicated parting point for current transformers. Business Impact is streamlined wiring, safer maintenance, and faster error-free upgrades. Application is projects requiring straightforward future expansion and busbar-based distribution. Feature is quick-sealable plastic covers and RAL 7035 finish. Business Impact is fast serviceability and weather-resilient indoor installation with a uniform aesthetic. Application is facilities where maintenance time and cosmetic consistency matter for cross-site deployment. Feature is RoHS and REACH declarations with SCIP/WEEE alignment. Business Impact is procurement risk reduction and regulatory readiness across regions. Application is multinational deployments and supply chain-compliant installations.
Get a Quick Quote for a ABB 2CPX035716R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX035716R9999?
Enquire Now
FAQs
This CT meter panel is designed for indoor distribution and integrates with standard DIN place units (108). It follows EN 61439-1 and DIN VDE 0603-2-2, supports 5P configurations, and uses Cu busbars for robust connections. Installation aligns with TN-S earthing and N+PE wiring, enabling straightforward integration with existing switchgear and control systems while reducing field wiring.
Key ratings include a maximum operational voltage of 415 V and a rated current of 100 A in a 5-pole arrangement. The enclosure carries IP2XC protection, supports TN-S grounding, and utilizes Cu busbars (12 x 5 mm). It includes NH00/160A fuse switch disconnectors and a clean N+PE connection scheme for reliable indoor metering.
Ideal for manufacturing, process automation, and facilities with half indirect metering requirements, the panel supports centralized metering racks and modular distribution enclosures. Its compliant design with EN 61439-1, RoHS/REACH, and WEEE considerations makes it suitable for data centers, industrial plants, and energy management projects seeking scalable, compliant infrastructure.
The unit adheres to EN 61439-1 and DIN VDE 0603-2-2, with CE declarations, RoHS and REACH compliance, and SCIP/WEEE reporting. It also references IP2XC protection and RAL 7035 color, providing regulatory readiness for European and multi-regional deployments while supporting safe indoor operation.
Pre-wired copper busbars, a 5P layout, and quick-seal covers simplify commissioning and future upgrades, reducing labor during maintenance. The robust IP2XC enclosure and RoHS/REACH compliance minimize downtime and regulatory risk, contributing to lower total cost of ownership and faster time-to-value for energy distribution initiatives.
